Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | SEAT,KIT(V-3500) K1122-56110 K1241-93010 | 1 | $548.40 | |||
| 020 | BOLT, FLANGE (5/ 0Y171-50508 | 1 | $1.99 | |||
| 030 | SPRING, SEAT SW K1122-56142 K1122-56140 | 1 | $1.85 | |||
| 040 | Metric Hex Lock Nut K5112-72840 K5112-72842 | 1 | $0.36 | |||
| 050 | Plain (Flat) Washer 60009-60701 75599-32012 | 1 | $0.14 | |||
| 060 | KNOB K1122-56130 K1122-56133 | 1 | $3.78 | |||
| 070 | SUPPORT, SEAT K1122-56120 Discontinued | 1 | $50.72 | |||
Showing 1 to 7 of 7 parts
Related Assemblies
-

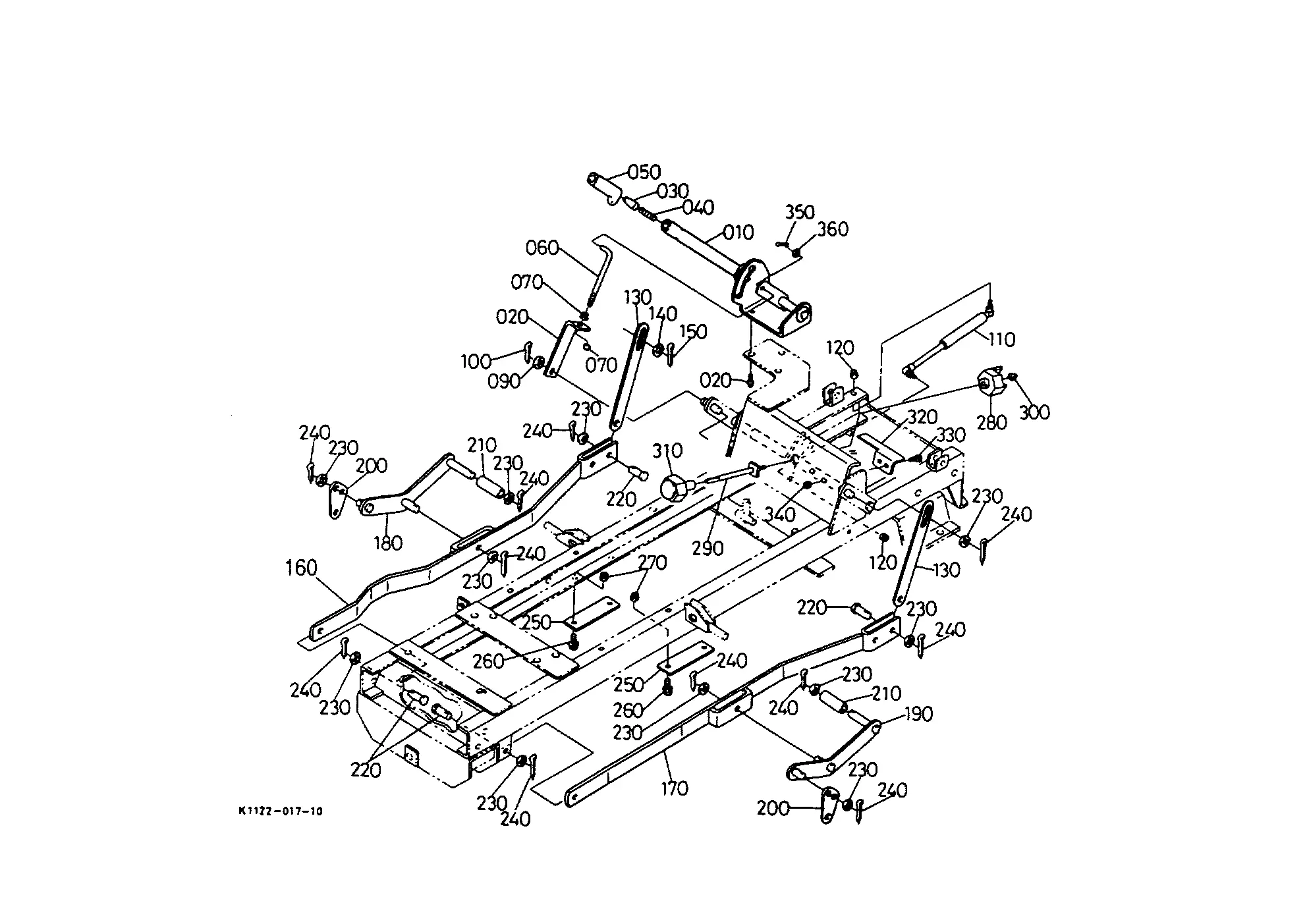

DIAG-G03200-86277 G03200 LIFT LEVER/LINK
View Diagram -

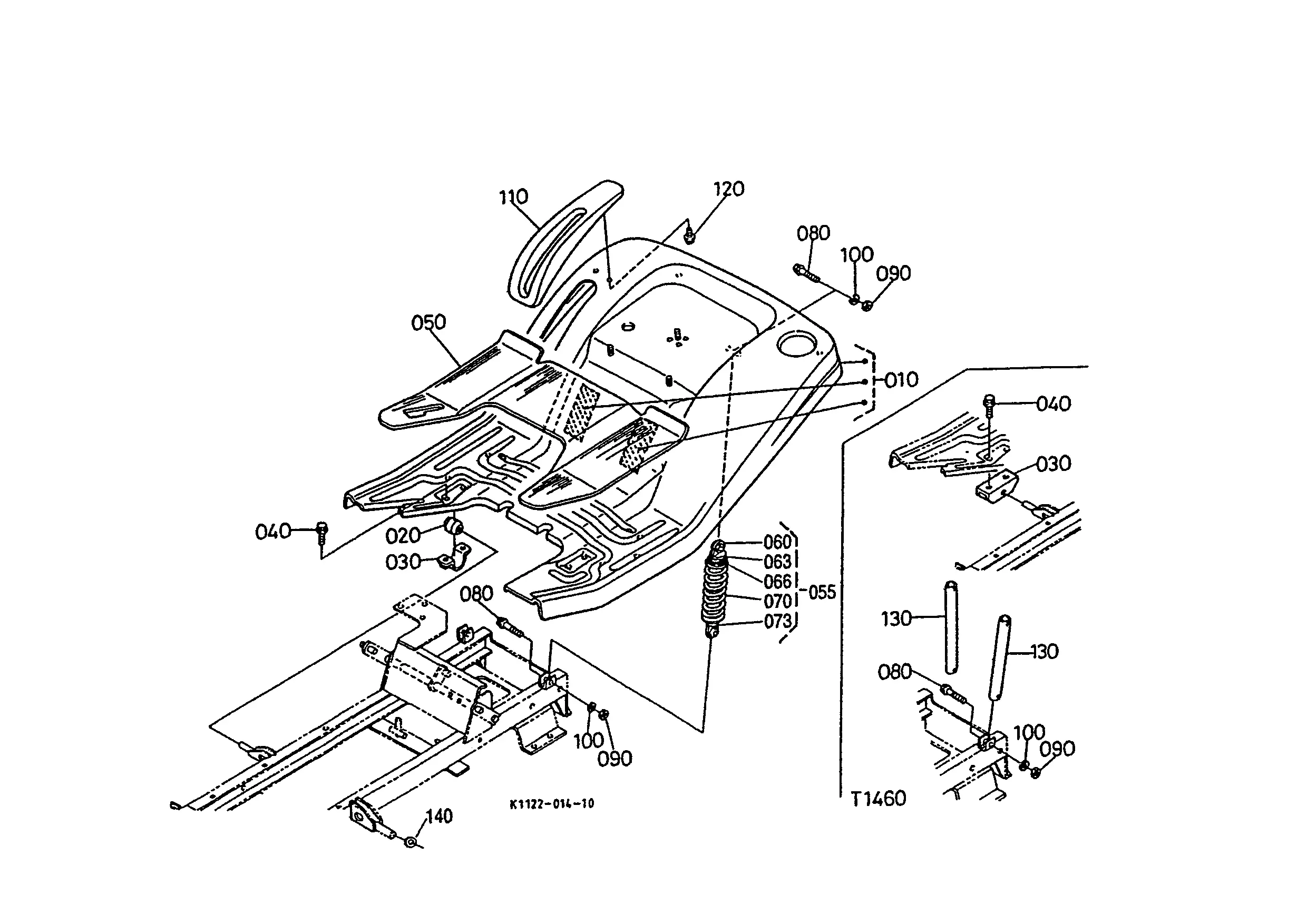

DIAG-G02900-86277 G02900 FENDER
View Diagram -

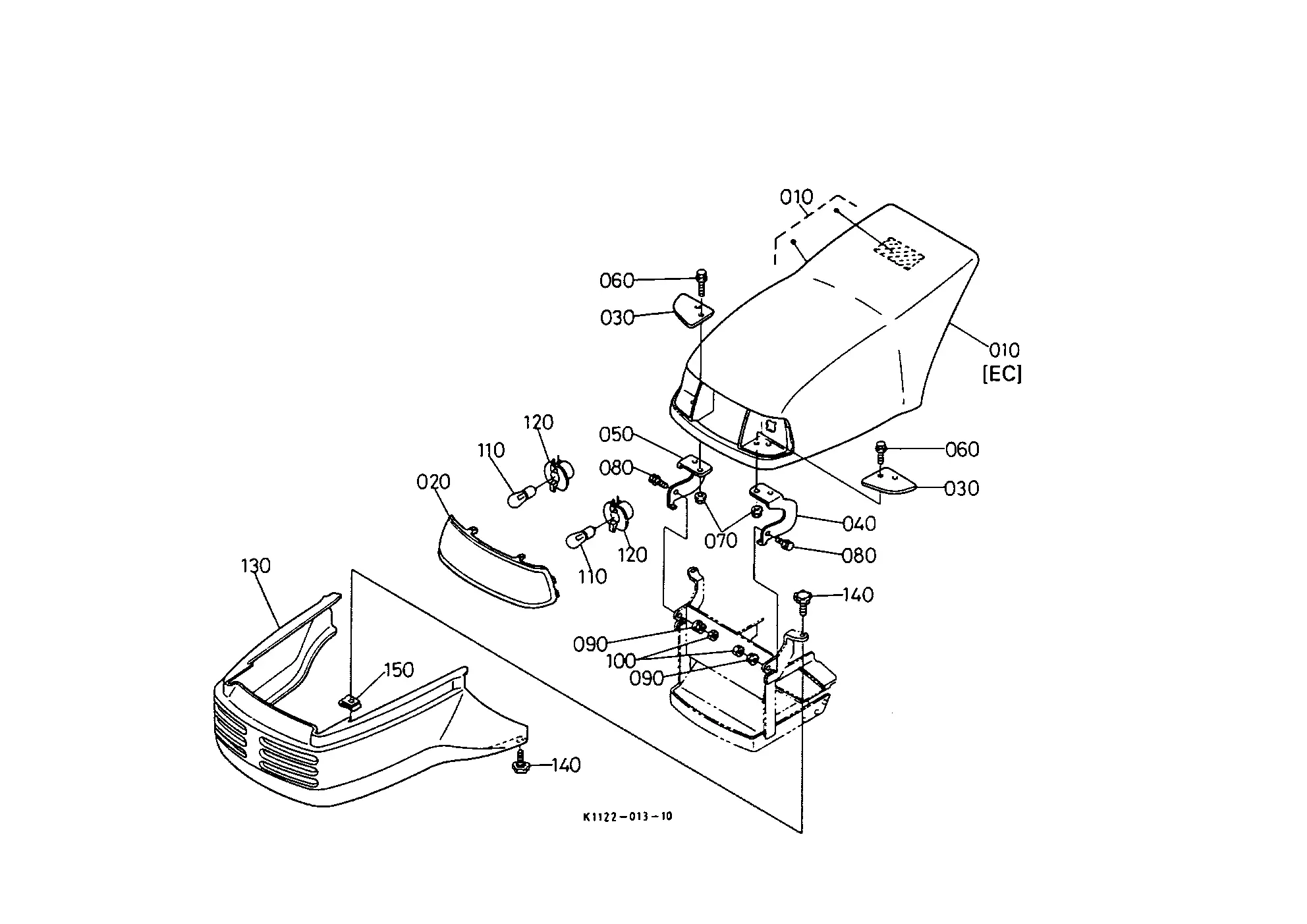

DIAG-G02800-86277 G02800 BONNET/HEAD LIGHT
View Diagram
