Kubota T1770 G03002 FENDER Parts Diagram

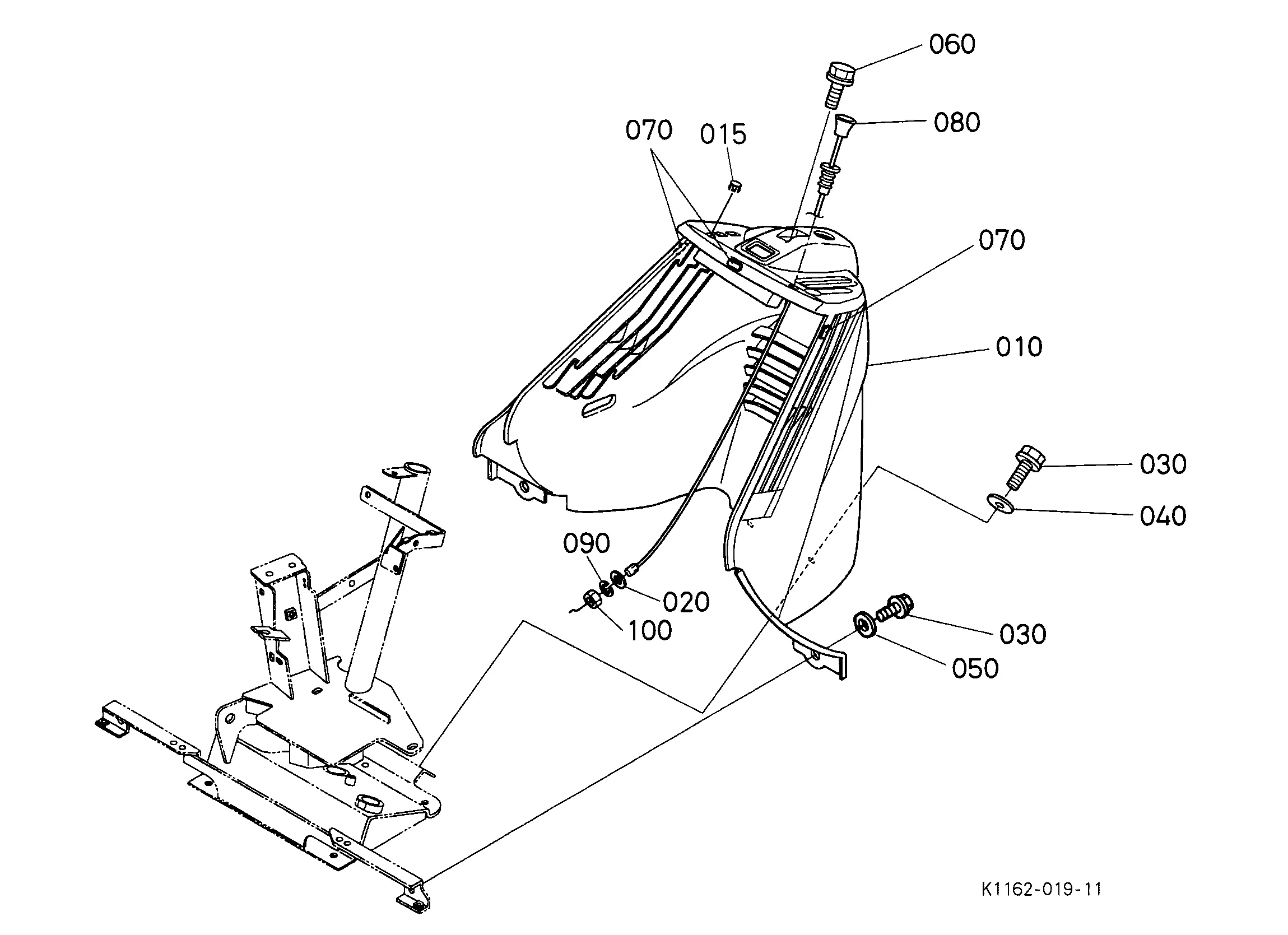

Exploded-view parts diagram "G03002 FENDER" for the Kubota T1770. 15 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | KIT, FENDER K1132-95020 | 1 | $1,112.50 | |||
| 030 | BUSHING K1162-55120 | 1 | $6.01 | |||
| 040 | SAE Flat Washer 60009-60704 75599-32015 | 1 | $4.29 | |||
| 050 | SUPPORT, STEP K1122-55130 K1211-55130 | 1 | $5.16 | |||
| 060 | Flange Bolt - M8 x 1.25 x 20 mm 01754-50820 | 1 | $4.70 | |||
| 070 | SHEET, STEP K1122-55210 K1042-55212 | 1 | $39.44 | |||
| 090 | SUSPENSION, ASSY K1122-55410 K1122-55400 | 1 | $268.06 | |||
| 110 | SPRING, SUSPENSI K1122-55420 | 1 | $14.37 | |||
| 130 | COVER SUSPENSION K1122-55450 Discontinued | 1 | $5.54 | |||
| 150 | BOLT 01053-51045 | 1 | $2.07 | |||
| 150 | BOLT 01123-01045 01123-51045 | 1 | $2.26 | |||
| 160 | Nut (Fastener) 02014-50100 | 1 | $0.86 | |||
| 170 | Spring Washer, Metric (M) 04512-50100 | 1 | $0.67 | |||
| 180 | COVER, LEVER K1122-55220 | 1 | $292.97 | |||
| 190 | SCREW, SELF TAPP K1122-55280 Discontinued | 1 | $0.71 | |||
Showing 1 to 15 of 15 parts
