Kubota GL-6500S/EMISSION CONTROLLED G01200 RESERVE TANK Parts Diagram
Exploded-view parts diagram "G01200 RESERVE TANK" for the Kubota GL-6500S/EMISSION CONTROLLED. 10 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | SUPPORT RESERVE 18961-72460 | 1 | $36.97 | |||
| 020 | Flange Bolt - M8 x 1.25 x 16 mm 01754-50816 | 1 | $4.33 | |||
| 030 | TANK 15531-72402 | 1 | $133.43 | |||
| 035 | BODY, TANK 15531-72410 | 1 | $98.31 | |||
| 040 | LABEL, INSTRUCTI 15501-88210 | 1 | $7.97 | |||
| 050 | CAP 3F240-72730 15531-72422 | 1 | $7.36 | |||
| 060 | GASKET NA 15272-72430 15531-72432 | 1 | $5.49 | |||
| 070 | PIPE, WATER OVER 15471-72440 | 1 | $36.03 | |||
| 080 | PIPE, OVERFLOW 15531-72442 15401-72710 | 1 | $9.70 | |||
| 090 | CLIP, PIPE 15501-72470 | 1 | $4.60 | |||
Showing 1 to 10 of 10 parts
Related Assemblies
-

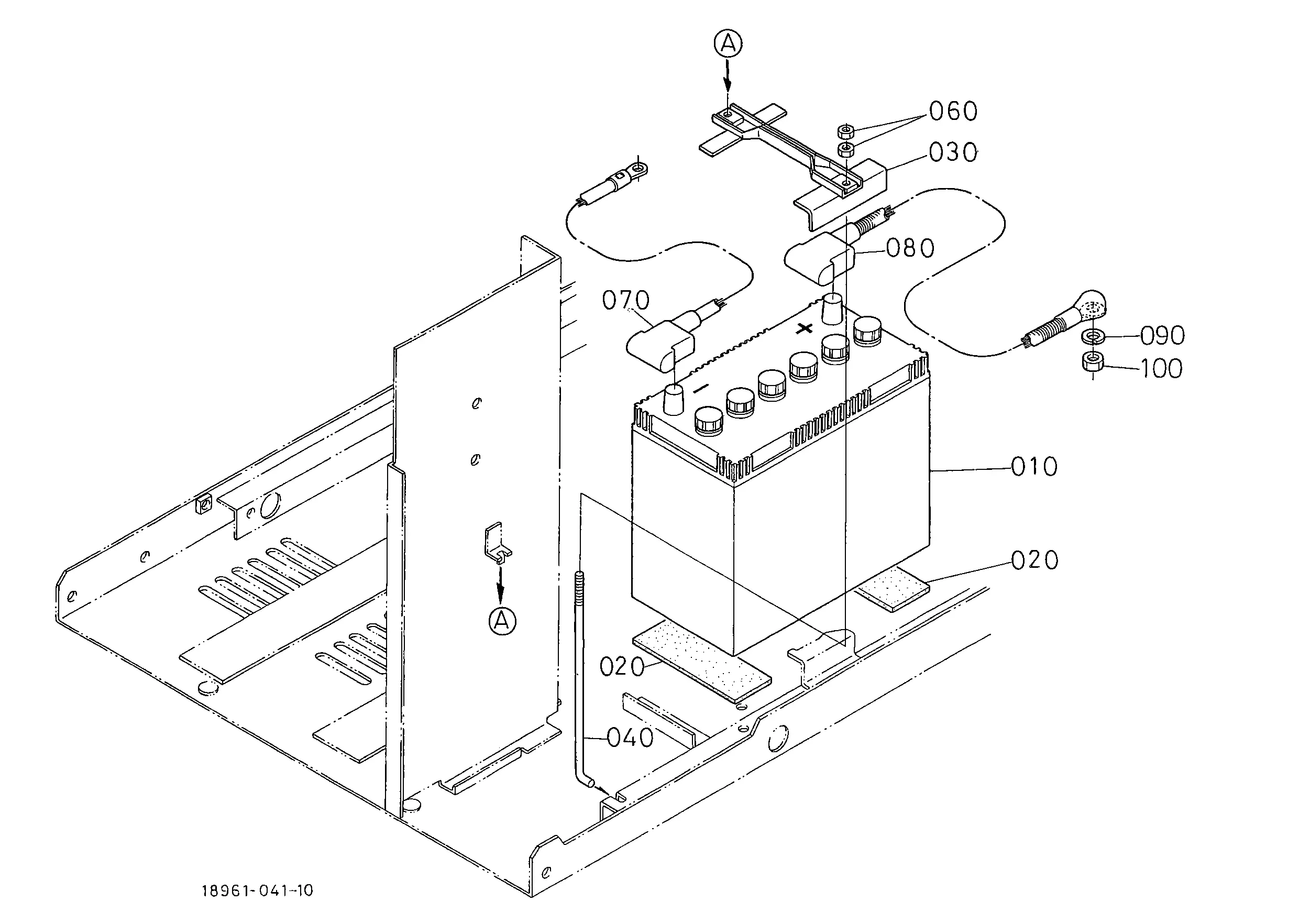

DIAG-G01100-85013 G01100 BATTERY
View Diagram -

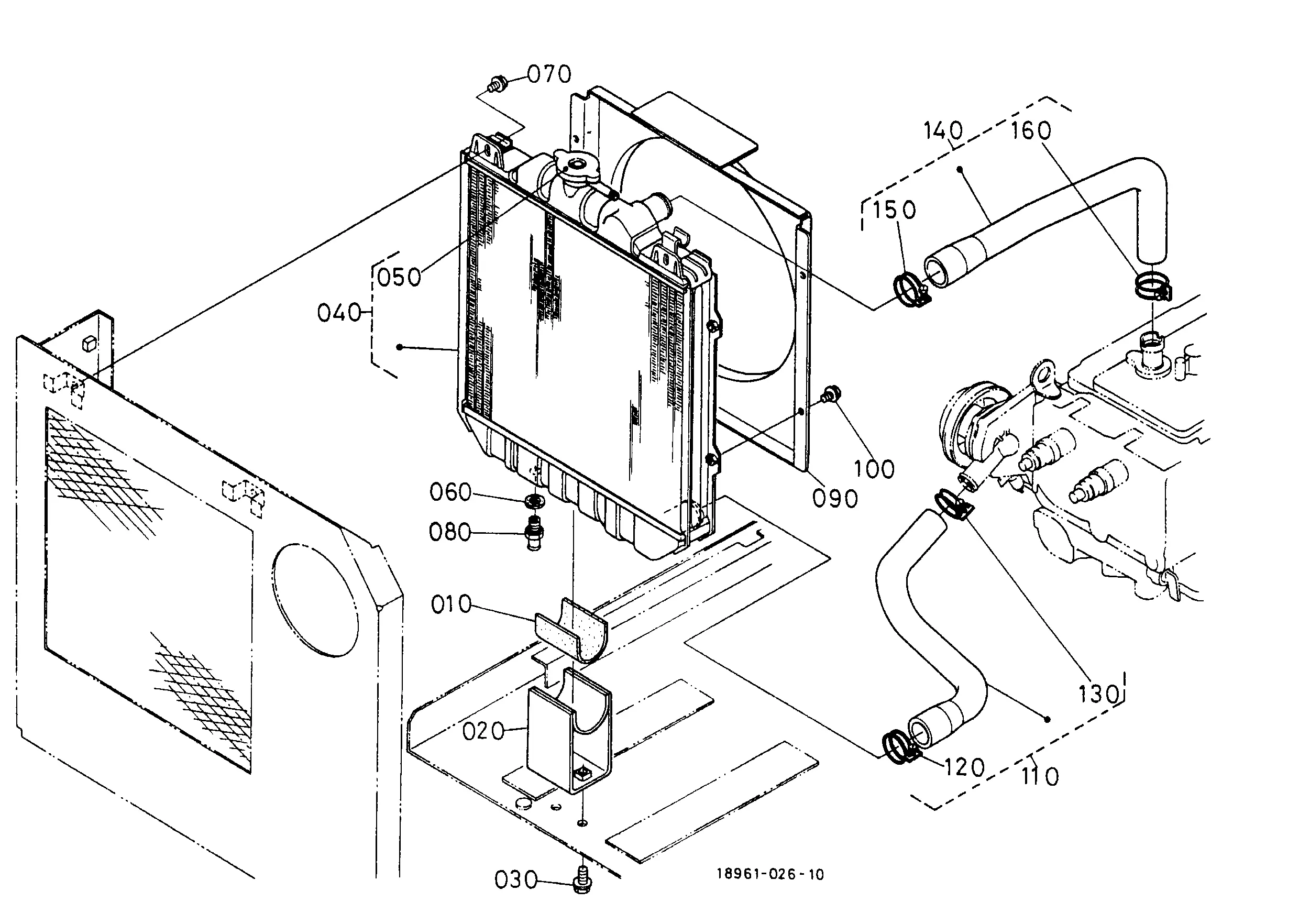

DIAG-G01300-85013 G01300 RADIATOR
View Diagram -

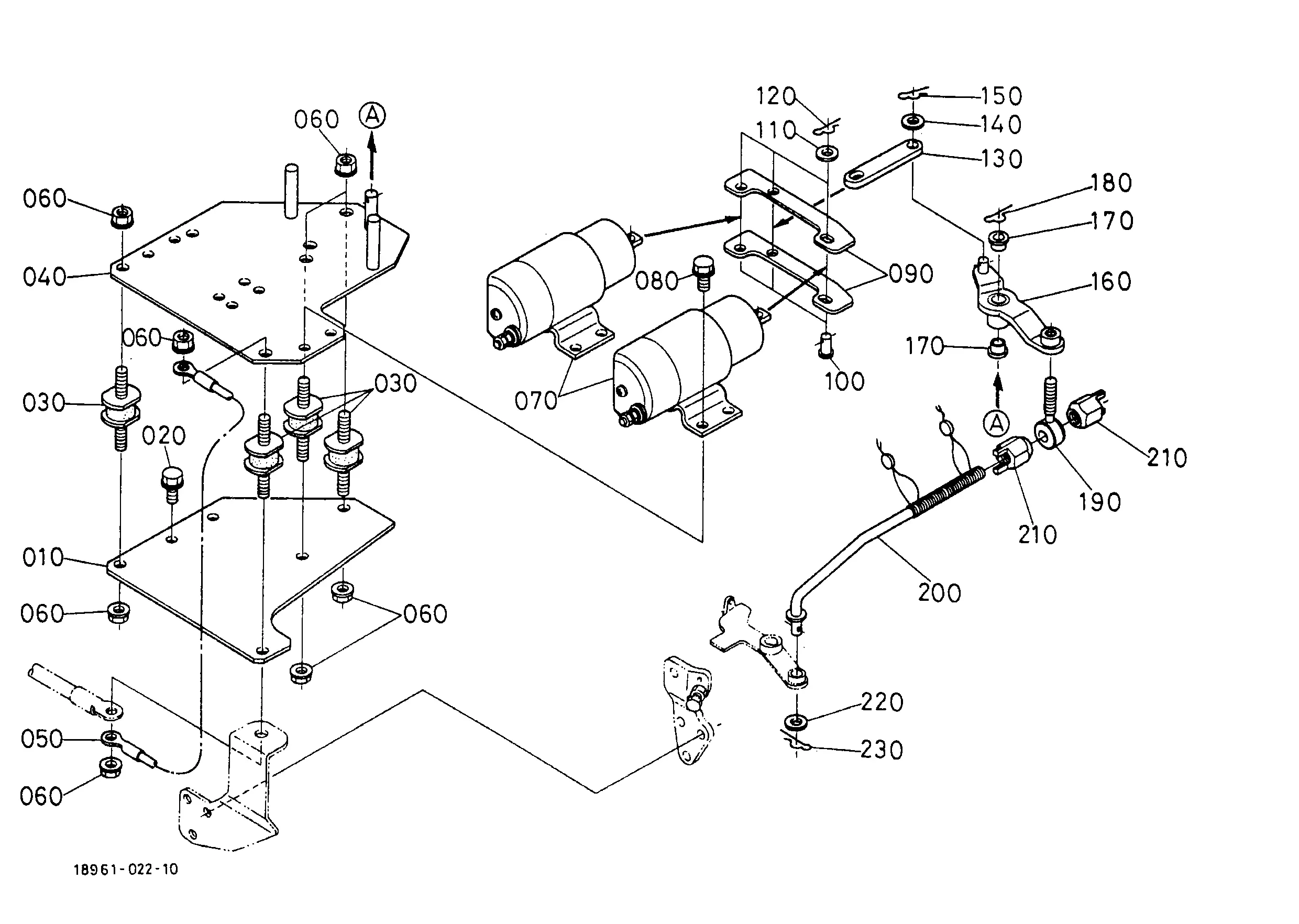

DIAG-G01000-85013 G01000 STOP SOLENOID
