Kubota RTV-X1120DR G00100 MAIN FRAME Parts Diagram

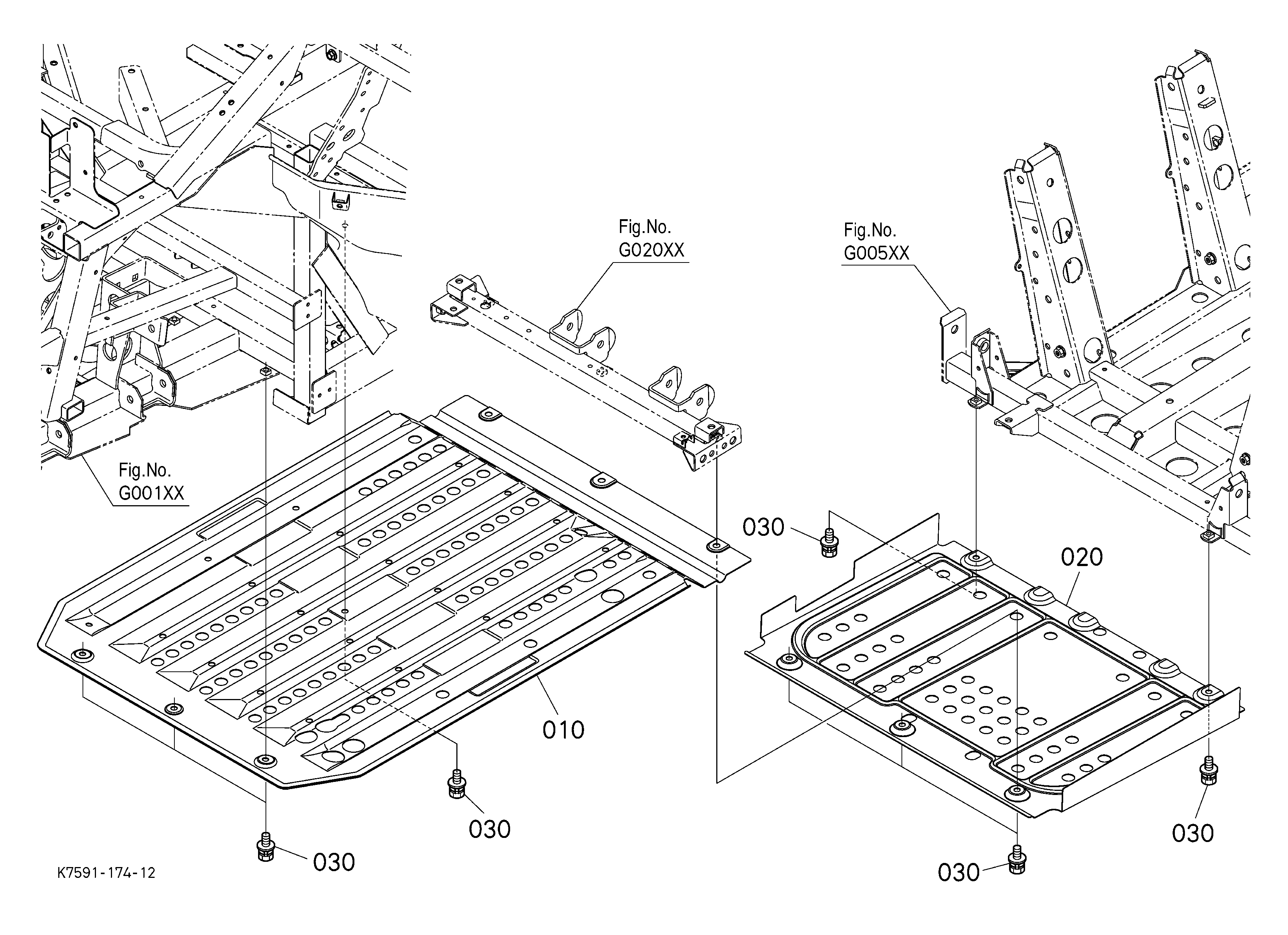

Exploded-view parts diagram "G00100 MAIN FRAME" for the Kubota RTV-X1120DR and Kubota RTV-X1120DW. 7 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | FRAME,KIT(LABEL) K7591-97100 K7591-97102 | 1 | $12,804.19 | |||
| 010 | KIT FRAME (LABEL K7597-97100 | 1 | $20,572.88 | |||
| 050 | PLATE(SHIELD) K7591-21273 | 1 | $29.66 | |||
| 060 | Spring Nut (Clip Nut / Speed Nut) K1122-91810 | 1 | $2.05 | |||
| 070 | Button Screw K1211-54362 K1211-54363 | 1 | $0.80 | |||
| 080 | Plain Washer K7711-29780 K7711-29782 | 1 | $0.26 | |||
| 090 | TRIM(SHIELD) K7591-21282 K7591-21283 | 1 | $30.19 | |||
Showing 1 to 7 of 7 parts
