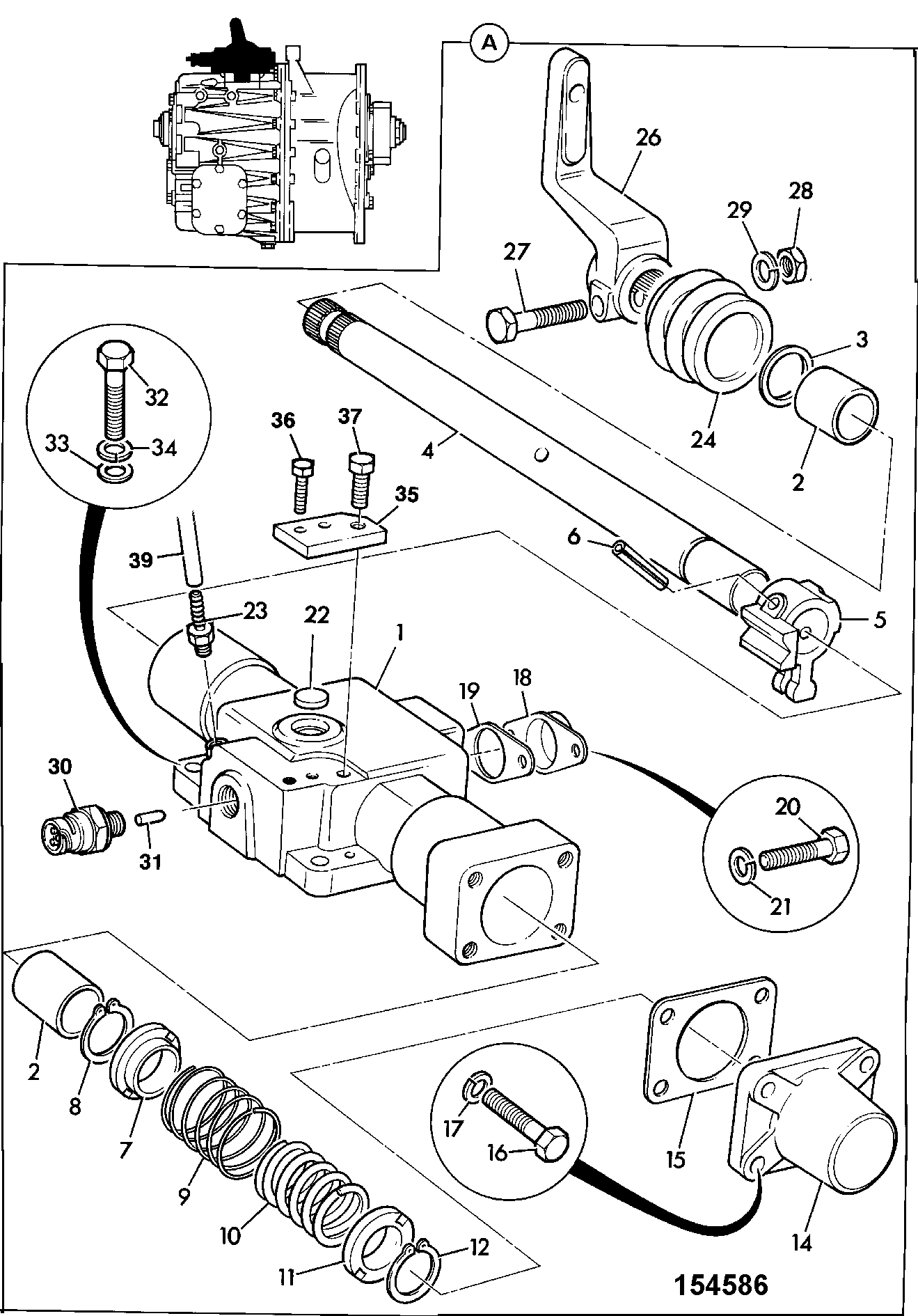

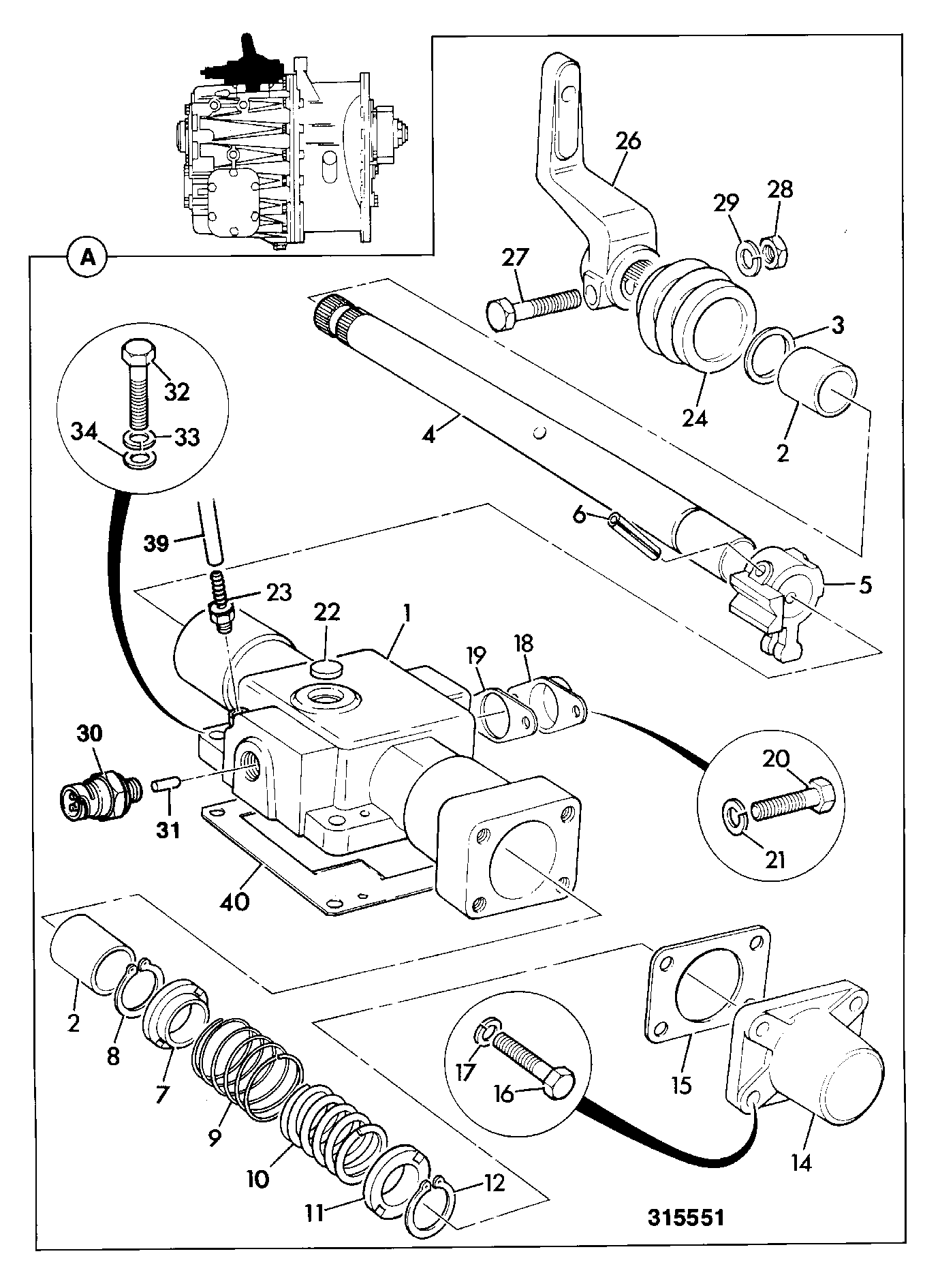

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| CABLE TIE 180MM 123/00190 | 1 | $0.30 | ||||
| REMOTE CONTROL 454/43902 | 1 | $2,603.97 | ||||
| 2 | BUSH 454/43831 | 1 | $37.34 | |||
| 3 | SEAL-OIL 454/43832 | 1 | $104.23 | |||
| 4 | ROD 454/43909 | 1 | $194.40 | |||
| 5 | LEVER INNER STRIKI 454/43904 | 1 | $304.96 | |||
| 6 | PIN 454/43835 | 1 | $5.67 | |||
| 9 | SPRING 454/43839 | 1 | $7.84 | |||
| 10 | SPRING 454/43911 | 1 | $7.69 | |||
| 12 | CIRCLIP 454/43908 | 1 | $1.85 | |||
| 15 | GASKET 454/43844 | 1 | $4.35 | |||
| 18 | COVER 454/43735 | 1 | $16.90 | |||
| 19 | GASKET 454/43736 | 1 | $1.36 | |||
| 22 | PLUG 454/43851 | 1 | $28.62 | |||
| 23 | ADAPTOR 816/60288 | 1 | $6.11 | |||
| 24 | BOOT 454/43907 | 1 | $14.49 | |||
| 26 | Lever 454/43918 478/20327 | 1 | $587.21 | |||
| 27 | HEX.BOLT M10x50 LG 1315/3412Z 1315/3412D | 1 | $5.17 | |||
| 28 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 29 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 30 | SWITCH 716/30087 701/60078 | 1 | $330.47 | |||
| 31 | PIN 454/43859 | 1 | $30.20 | |||
| 32 | SCREW 454/43740 | 1 | $3.61 | |||
| 33 | WASHER 454/43730 | 1 | $0.50 | |||
| 34 | WASHER 454/43728 | 1 | $0.58 | |||
| 39 | HOSE 648/22201 | 1 | $50.01 | |||
Showing 1 to 26 of 26 parts
