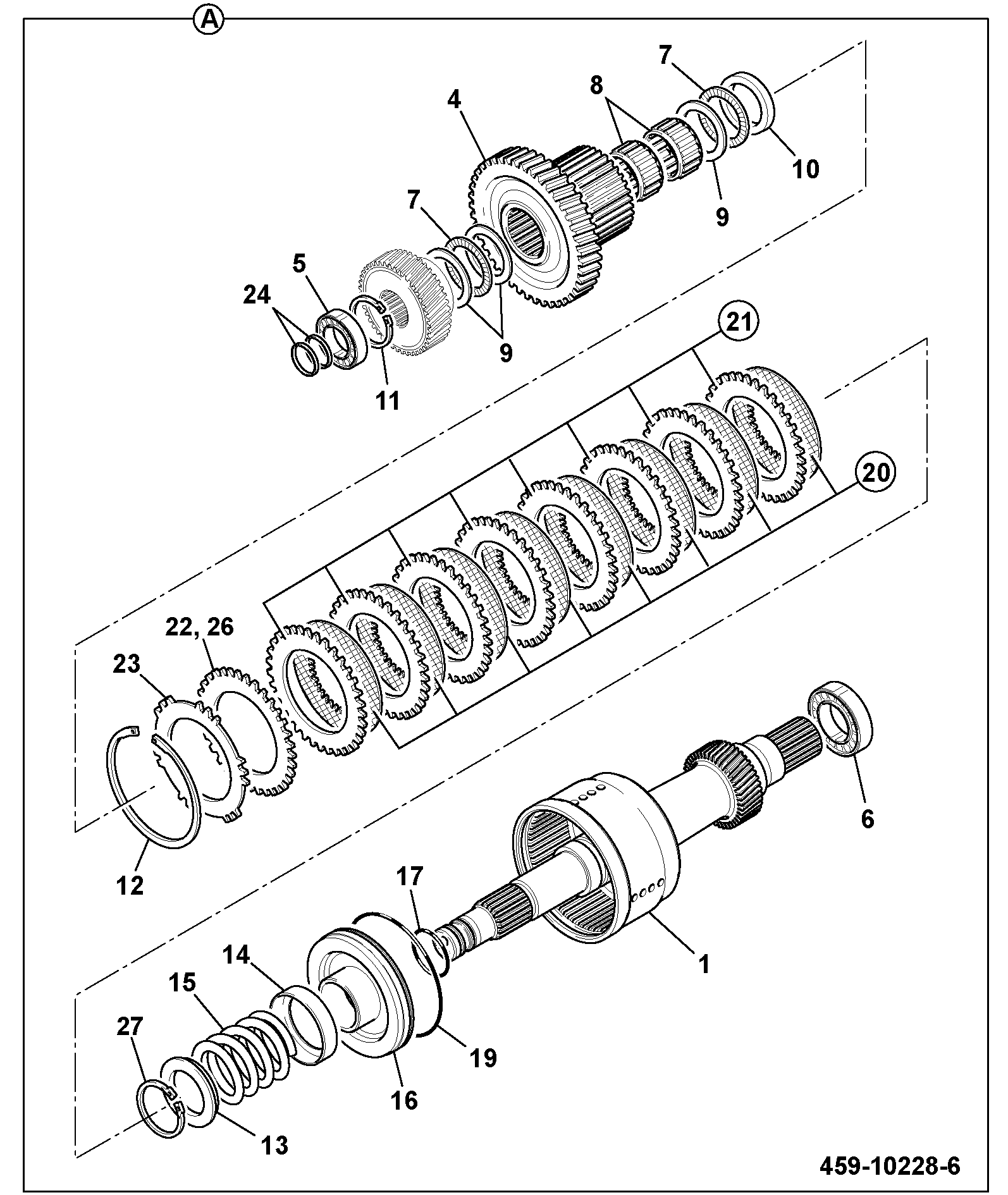

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA CLUTCH HSG SAHR 459/50616 | 1 | $5,079.18 | |||
| 2 | BEARING TAPER ROLLER 907/52800 | 1 | $103.83 | |||
| 3 | BEARING - TAPER ROLLER 907/20033 | 1 | $113.22 | |||
| 4 | NEEDLE ROLLER BRG K40X47X - JCB 917/52900 | 1 | $76.25 | |||
| 5 | CIRCLIP 150mm - INTERNAL 821/M8880 | 1 | $8.88 | |||
| 7 | WASHER-THRUST 823/10364 | 1 | $37.41 | |||
| 8 | washer trust 459/70312 | 1 | $12.34 | |||
| 9 | SEALING RING 4WD PTFE 904/14300 | 1 | $2.63 | |||
| 10 | PRESSURE PLATE 331/16517 | 1 | $39.96 | |||
| 11 | PRESSURE PLATE 331/16550 | 1 | $48.84 | |||
| 12 | SHIM PLATE CLUTCH 331/16519 | 1 | $8.60 | |||
| 13 | Plate counter, clutch 331/16516 | 1 | $21.40 | |||
| 14 | FRICTION PLATE 331/16520 | 1 | $32.83 | |||
| 15 | PRESSURE PLATE 4WD SAHR 331/27539 | 1 | $102.08 | |||
| 16 | O' RING SEAL 828/10263 | 1 | $30.84 | |||
| 17 | PISTON 4WD SAHR - TMG Safety 459/70278 | 1 | $372.36 | |||
| 18 | O RING 828/00304 | 1 | $0.81 | |||
| 19 | PIN-REACTION 4WD SAHR 459/70279 | 1 | $31.80 | |||
| 20 | CAPSCREW-M5x25 1392/3107 | 1 | $6.50 | |||
| 21 | O'RING 828/10180 | 1 | $4.03 | |||
| 22 | DISC SPRING 814/10157 | 1 | $54.87 | |||
| 23 | LOCKNUT - 4WD - M48 459/70280 | 1 | $403.36 | |||
| A | G.A. 4WD CLUTCH 459/10172 | 1 | $5,762.46 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-
DIAG-F7-10-86-400911 F7-10-86 CLUTCH ASSEMBLY LAYSHAFT-PS 760 6 SPEED 455/10850
View Diagram -
DIAG-F7-10-88-400911 F7-10-88 VALVE ASSEMBLY TRANSMISSION 6 SPEED 455/10850
View Diagram -
DIAG-F7-10-85-400911 F7-10-85 CLUTCH ASSEMBLY MAIN SHAFT-PS 760 6 SPEED 455/10850
View Diagram
