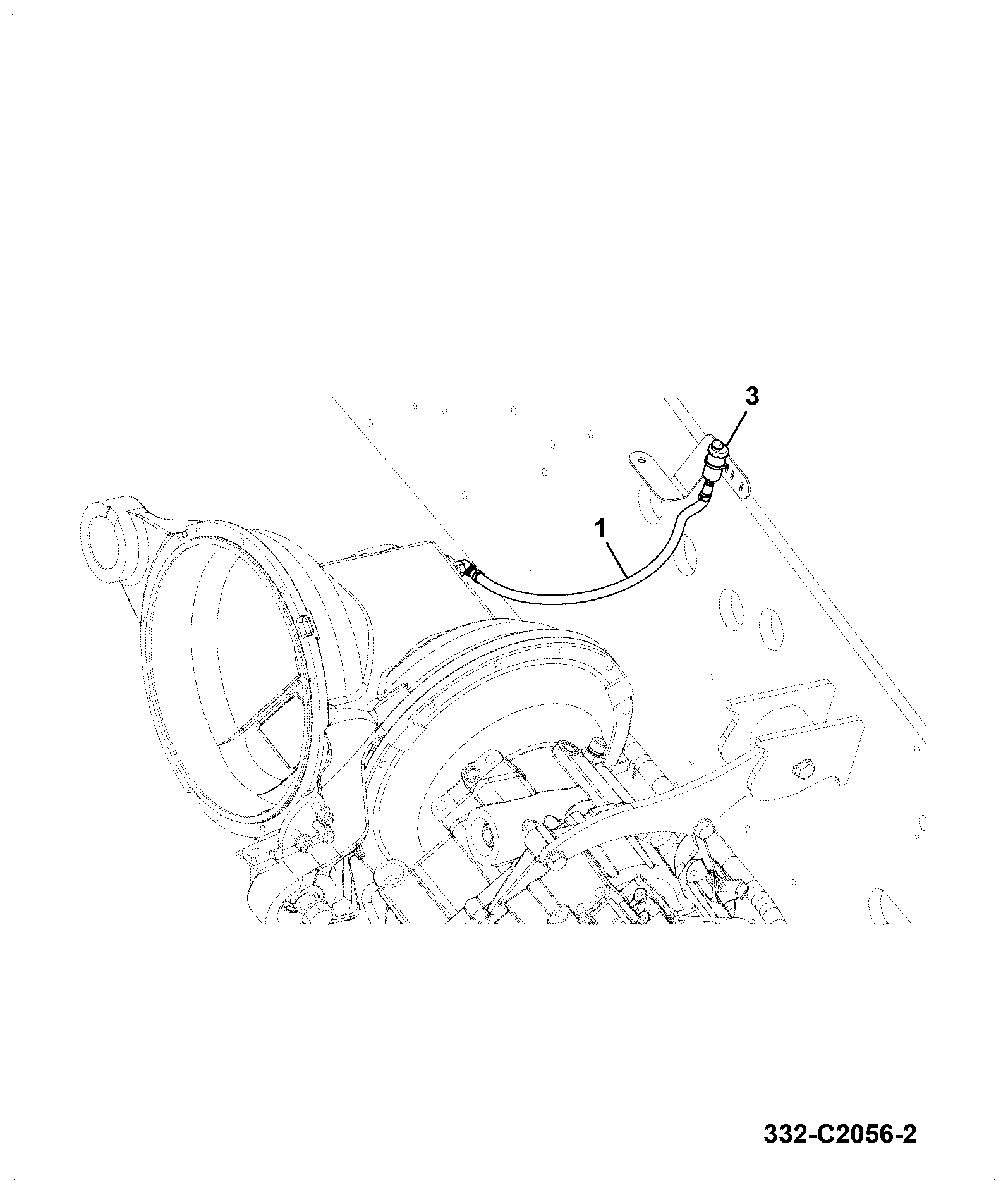

F690-115-1 OTHER PS/AS/CVT PARTS TRANSMISSION ASSEMBLY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	GA HOSE 365MM LONG 332/C1990	1	AVAILABLE TO ORDER	$25.41	Quantity	Quantity
2	GA HOSE 640MM LONG 332/C2056	1	AVAILABLE TO ORDER	$67.31	Quantity	Quantity
7	CABLE TIE - BLACK 200mm 826/01144	1	AVAILABLE TO ORDER	$0.20	Quantity	Quantity
9	EAR CLAMP 821/00480	1	3 IN STOCK	$2.37	Quantity	Quantity

Showing 1 to 4 of 4 parts

DIAG-F690-110-1-401617 F690-110-1 HOSES BREATHER ASSEMBLY
View Diagram
DIAG-F690-120-1-401617 F690-120-1 HOSES BREATHER ASSEMBLY
View Diagram

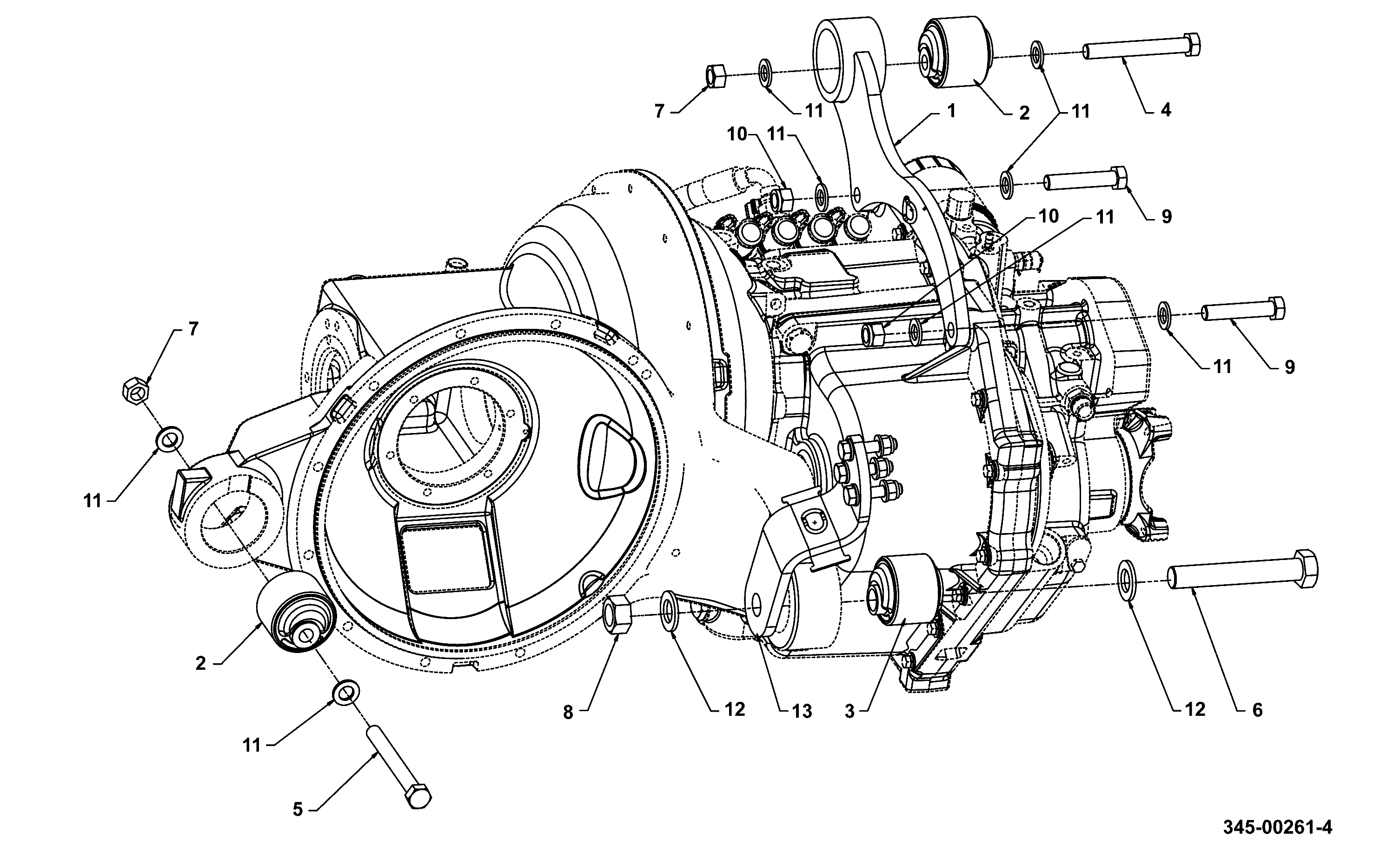

DIAG-F690-100-1-401617 F690-100-1 OTHER PS/AS/CVT PARTS TRANSMISSION MOUNTING
