Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| COUNTER PLATE 332/M4100 | 1 | $10.06 | ||||
| 10 | SHAFT - 4WD OUTPUT 459/M6870 | 1 | $227.06 | |||
| 20 | SEALING RING 4WD PTFE 904/14300 | 1 | $2.63 | |||
| 30 | PISTON HOUSING - 4WD 459/P9870 | 1 | $95.13 | |||
| 40 | PISTON-4WD CLUTCH 445/15701 445/M6092 | 1 | $201.18 | |||
| 50 | THRUST WASHER-4WD CLUTCH 459/M6908 | 1 | $45.67 | |||
| 60 | KIT-4WD BRAKE PLATES 445/05107 998/M5385 | 1 | $623.22 | |||
| 80 | PRESSURE PLATE 445/19804 | 1 | $50.78 | |||
| 90 | ACTUATING SLEEVE 445/19805 | 1 | $235.11 | |||
| 100 | DISC SPRING 445/05110 | 1 | $126.40 | |||
| 110 | CLUTCH DRUM M/C 445/64701 | 1 | $850.57 | |||
| 120 | DISC SPRING 445/05118 | 1 | $380.13 | |||
| 130 | STEEL RING 445/05114 | 1 | $20.50 | |||
| 140 | INT CIRCLIP 120mm[1300 12 2203/1104 | 1 | $19.06 | |||
| 150 | O RINGS DOWTY REF 200 230 2403/0221 | 1 | $6.69 | |||
| 170 | O'RING 200 253 4470 2403/0244 | 1 | $6.06 | |||
| 180 | SHIM PLATE 332/M4101 | 1 | $11.93 | |||
| 190 | BEARING TAPER ROLLER 907/52800 | 1 | $103.83 | |||
| 200 | THRUST WASHER 445/05003 823/10582 | 1 | $98.49 | |||
| 210 | ROLLER BEARING HK 4020A 917/02600 | 1 | $36.48 | |||
| A | G.A. CLUTCH - 4WD 459/M6900 459/M4796 | 1 | $1,051.34 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-
DIAG-F610-5-1-400193 F610-5-1 PS TRANSMISSIONS CLUTCH MIBA PAPER PLATES
View Diagram -

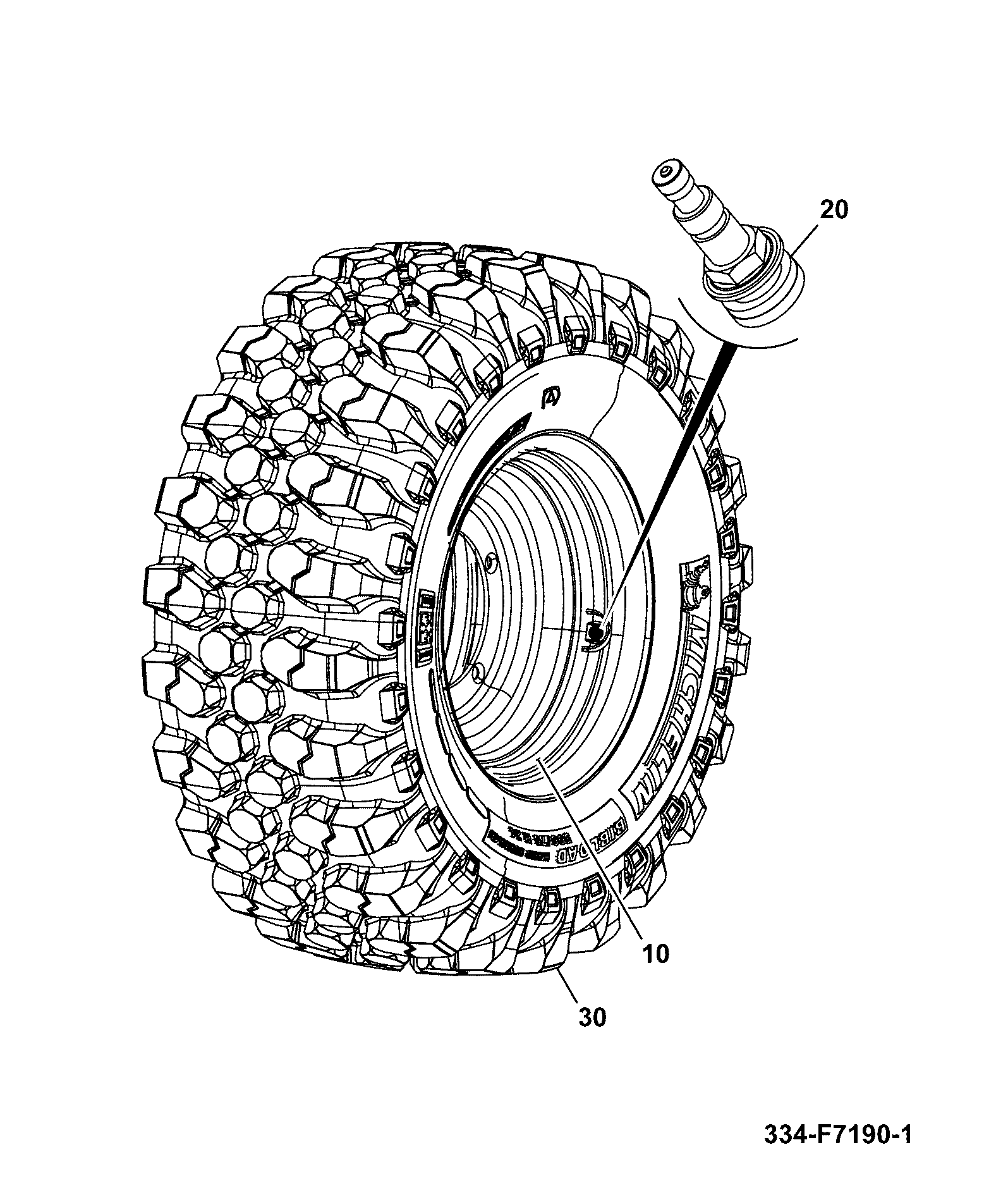

DIAG-F300-310-1-400193 F300-310-1 WHEELS AND TYRES MICHELIN
View Diagram -
DIAG-F300-290-1-400193 F300-290-1 WHEELS AND TYRES MICHELIN WITH AXLE LOCK/OSCILL STOP
View Diagram
