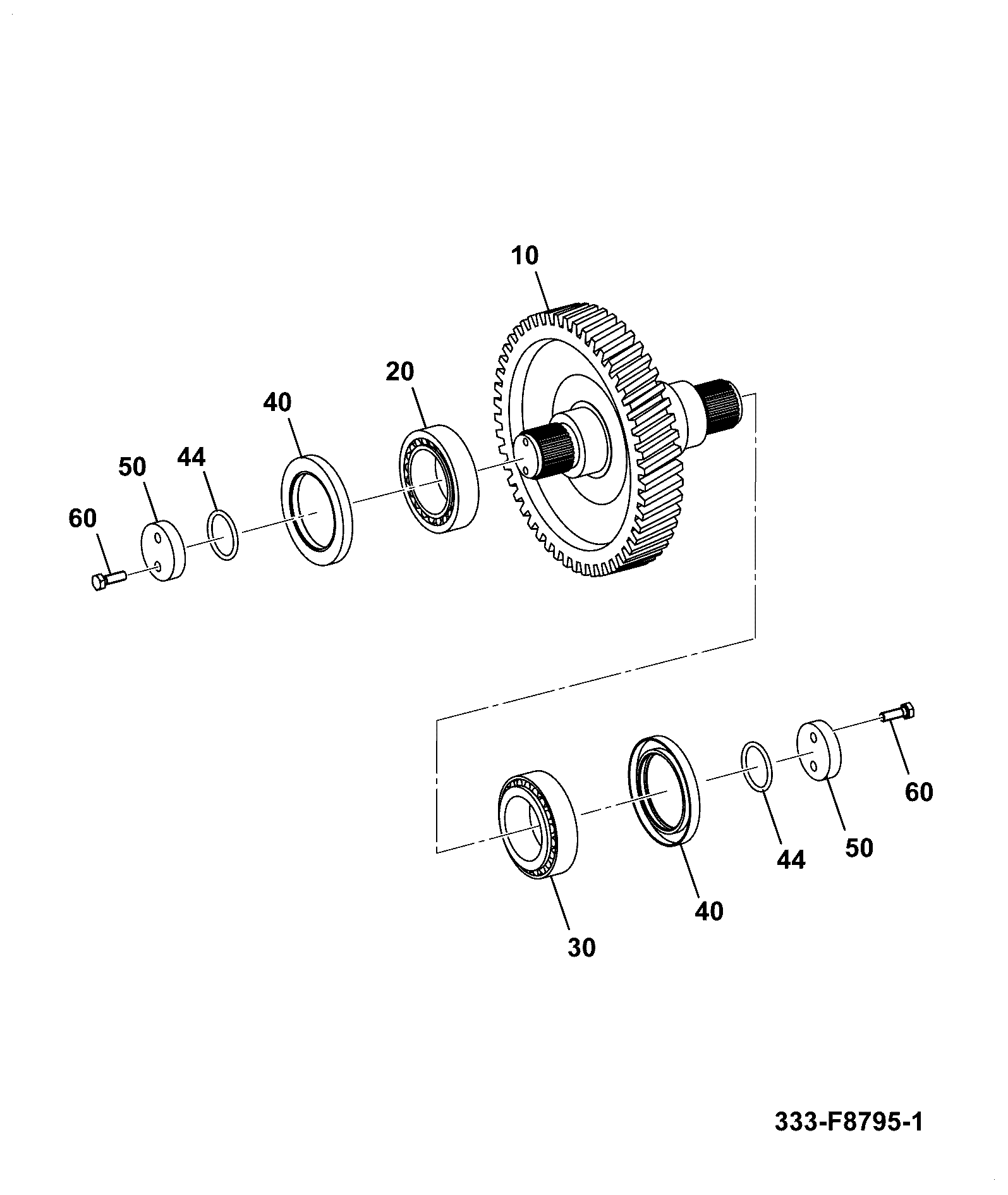

F610-31-10 PS TRANSMISSIONS OUTPUT GROUP 5 & 6 SPEED TRANSMISSION Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
10	Shaft output 332/E3670	1	AVAILABLE TO ORDER	$2,643.00	Quantity
20	BEARING 907/20009	1	AVAILABLE TO ORDER	$446.22	Quantity
40	SEAL 04/800373	1	AVAILABLE TO ORDER	$158.47	Quantity
44	O RING 10/906823	1	2 IN STOCK	$10.15	Quantity
50	WASHER 04/800248	1	AVAILABLE TO ORDER	$126.59	Quantity
60	Screw M8 335/E7100 04/600363	1	AVAILABLE TO ORDER	$3.20	Quantity

Showing 1 to 6 of 6 parts

DIAG-F610-31-1-404718 F610-31-1 PS TRANSMISSIONS OUTPUT GROUP 4 SPEED TRANSMISSION
View Diagram

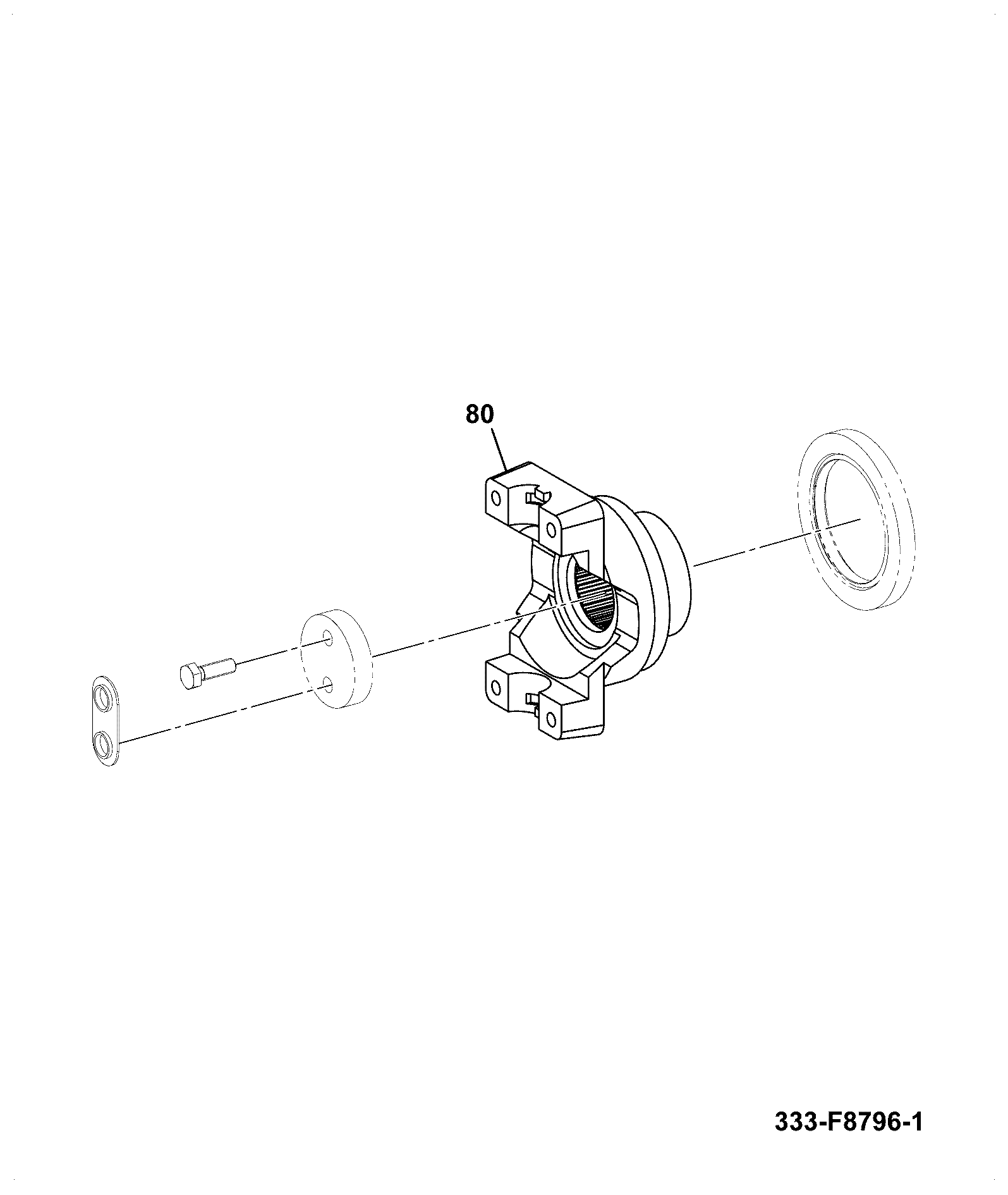

DIAG-F610-32-1-404718 F610-32-1 PS TRANSMISSIONS OUTPUT YOKE
