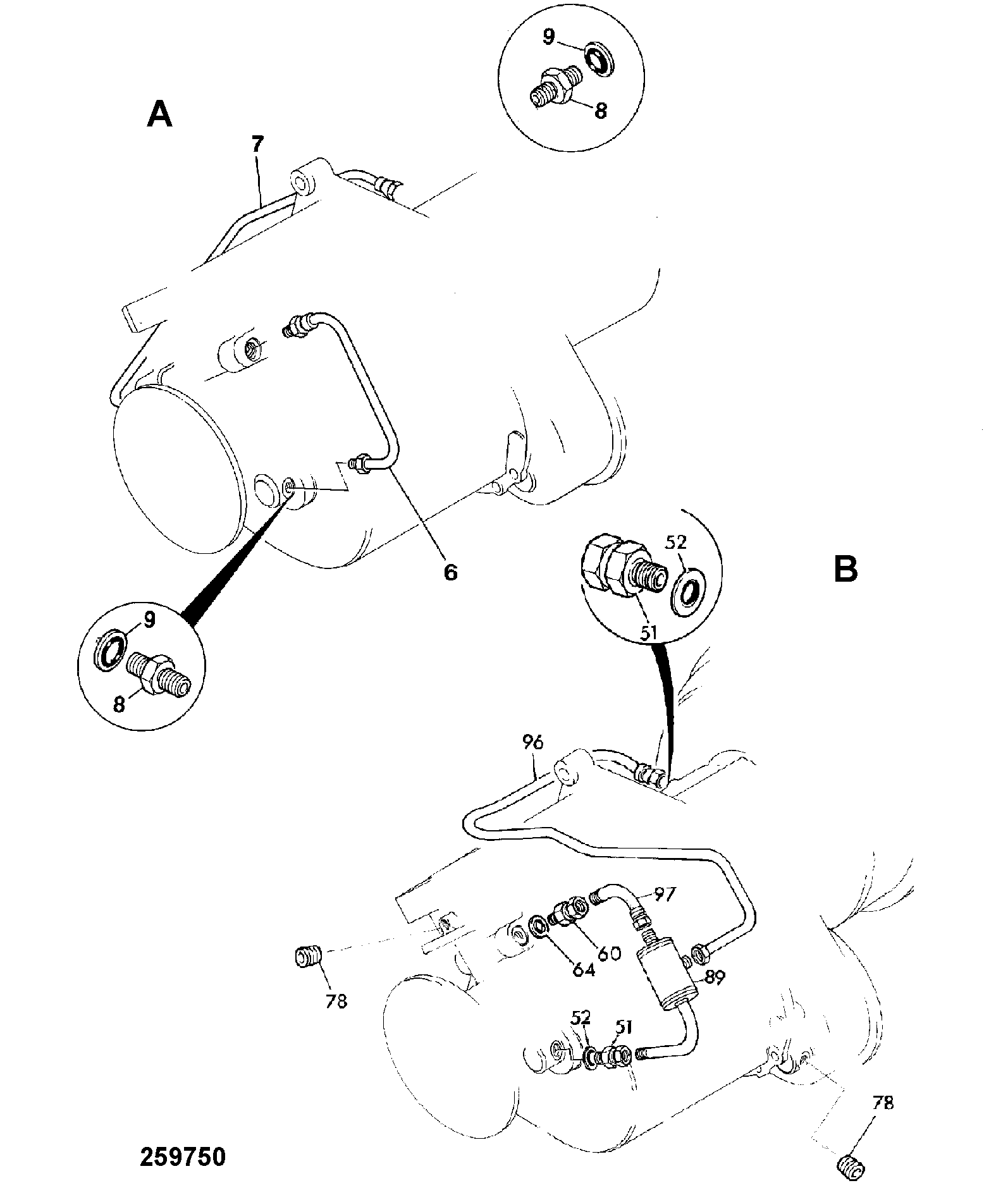

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | TORQUE CONVERTER ASSY 04/501000 | 1 | $2,137.42 | |||
| 1 | TORQUE CONVERTER SSL 11 03/300001 | 1 | $1,700.49 | |||
| 2 | DRIVE PLATE KIT 04/500300 | 1 | $356.27 | |||
| 7 | M12 X 50 BOLT 1315/3512Z | 1 | $3.38 | |||
| 8 | NUT M12 STD SELF LOCK 1370/0403Z | 1 | $2.11 | |||
| 9 | BOLT M12x70 1315/3516Z | 1 | $3.44 | |||
| 11 | SET M12 X 45 HT 1315/0511Z | 1 | $1.75 | |||
| 12 | DOWEL 02/101370 | 1 | $19.27 | |||
| 13 | BOLT M12x90 1315/3519Z | 1 | $12.46 | |||
| 14 | SET-SCREW M12 L-_30mm 1315/0508Z | 1 | $1.75 | |||
| 16 | DIPSTICK 267/23800 | 1 | $153.18 | |||
| 17 | 1"SEALASTIC NUT 155/10600 | 1 | $68.77 | |||
| 18 | Bracket 267/23402 | 1 | $245.94 | |||
| 18 | RETAINING BRACKET 267/23401 | 1 | $194.21 | |||
| 21 | '(W) (P) CLIP - WORMDRIVE 10/16mm(KANBAN 2201/0001 | 1 | $4.80 | |||
| 22 | BOLT M12x80 1315/3518Z | 1 | $2.94 | |||
| 23 | SPRING-WASHER M12 1425/0009Z 1425/0009D | 1 | $0.85 | |||
| 24 | WASHER M12 PLAIN(KANBAN) 1420/0009Z | 1 | $0.65 | |||
Showing 1 to 18 of 18 parts
