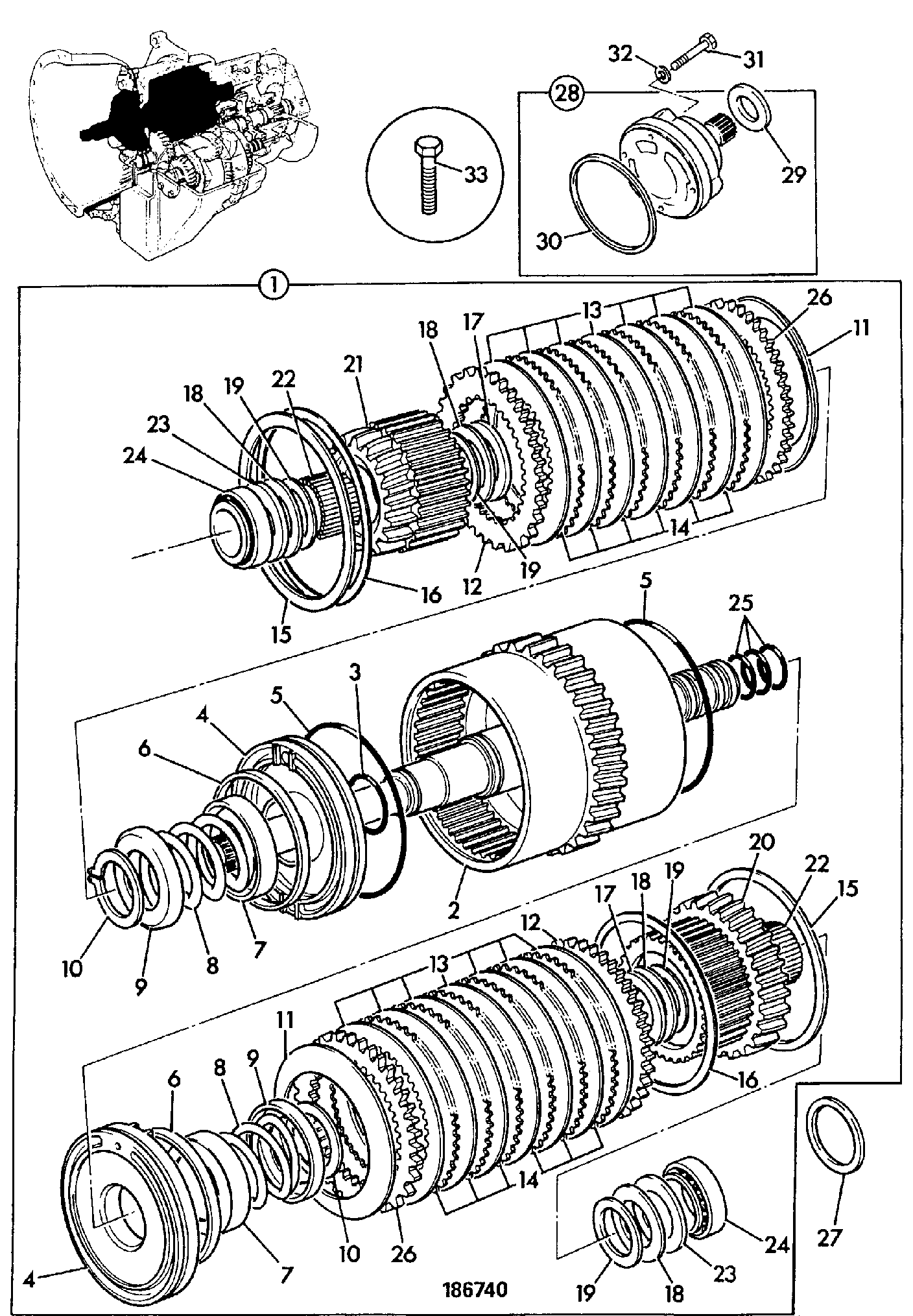

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | REVERSE CLUTCH ASSY - PS7 445/30300 | 1 | $7,428.31 | |||
| 2 | CLUTCH HSG. ASSY. 445/30400 | 1 | $12,428.37 | |||
| 3 | O RING 200 824 4470 90 828/00224 | 1 | $1.78 | |||
| 5 | O' RING 200-249-4470-99 828/00414 | 1 | $9.50 | |||
| 6 | PISTON LINER 445/12313 | 1 | $15.01 | |||
| 7 | OIL BAFFLE PLATE 445/12305 | 1 | $22.89 | |||
| 8 | COMPRESSION SPRING 814/00297 | 1 | $26.03 | |||
| 9 | SPRING RETAINER 445/12304 | 1 | $6.62 | |||
| 10 | EXT CIRCLIP D1400 46 821/00265 | 1 | $5.38 | |||
| 13 | FRICTION PLATE-CLUTCH 445/30011 | 1 | $18.53 | |||
| 14 | COUNTER PLATE 336/Y2517 445/12307 | 1 | $28.18 | |||
| 15 | INT CIRCLIP 140mm[1300 14!. 2203/1115 | 1 | $68.03 | |||
| 16 | SHIM PLATE- AS REQ'D 445/12314 | 1 | $40.92 | |||
| 17 | THRUST WASHER 445/12303 | 1 | $42.20 | |||
| 18 | THRUST B/RING AXK 4060 917/02800 | 1 | $15.49 | |||
| 22 | BEARING - NEEDLE ROLLER 917/02700 917/M8053 | 1 | $38.45 | |||
| 23 | OUTPUT THRUST WASHER 445/03209 | 1 | $92.07 | |||
| 24 | BEARING -TAPER L68149/L68 907/10000 | 1 | $53.62 | |||
| 25 | SEAL RING PTFE DIA.35 904/50020 | 1 | $5.17 | |||
| 27 | SHIM KIT (REVERSER UNIT) 921/02000 | 1 | $29.95 | |||
| 28 | SPACER - REVERSER CLUTCH 445/30009 | 1 | $47.69 | |||
| 29 | GASKET-REVERSER END COVER 813/50038 | 1 | $6.38 | |||
| 30 | END COVER - REVERSER 445/30008 | 1 | $906.24 | |||
| 31 | BOLT 1321/0405Z | 1 | $2.15 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-
DIAG-F6-2-1-404367 F6-2-1 CLUTCH, INPUT POWERSHIFT TRANSMISSION
View Diagram -
DIAG-F4-2-1-404367 F4-2-1 WHEELS & TYRES 406 FARM MASTER
View Diagram -
DIAG-F6-5-1-404367 F6-5-1 LAYSHAFT COMPONENTS POWERSHIFT TRANSMISSION
View Diagram
