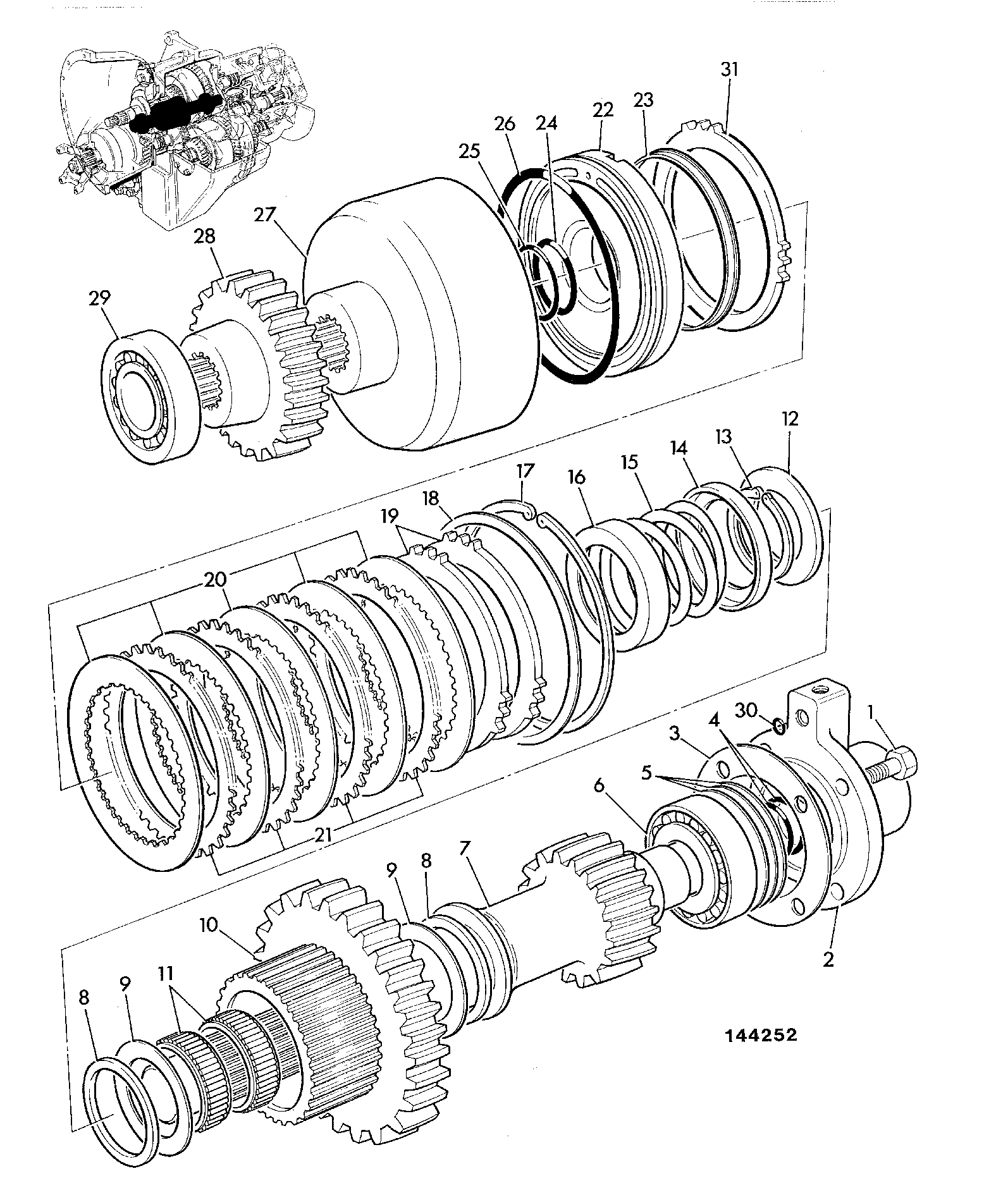

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | WASHER 823/00331 | 1 | $5.31 | |||
| 3 | FLANGE-DRIVE-1510-PS700 445/36701 | 1 | $158.63 | |||
| 4 | SEAL 904/05100 | 1 | $30.30 | |||
| 5 | BEARING COMPLETE 907/05900 | 1 | $67.66 | |||
| 6 | SPACER KIT 921/53400 | 1 | $745.77 | |||
| 7 | TAPER R'LER BRG 25584A/K1 907/51400 | 1 | $112.07 | |||
| 8 | GEAR - TRANSFER (45T) 445/30600 | 1 | $890.35 | |||
| 8 | TRANSFER GEAR 45T ONE PIECE 459/50761 459/M2669 | 1 | $576.10 | |||
| 9 | BEARING -TAPER L68149/L68 907/10000 | 1 | $53.62 | |||
| 9 | BEARING TAPER ROLLER 907/52800 | 1 | $103.83 | |||
| 10 | INT CIRCLIP 140mm[1300 14!. 2203/1115 | 1 | $68.03 | |||
| 12 | FRICTION PLATE 336/Y2516 445/03205 | 1 | $30.83 | |||
| 13 | COUNTER PLATE 336/Y2517 445/12307 | 1 | $28.18 | |||
| 14 | EXT CIRCLIP D1400 46 821/00265 | 1 | $5.38 | |||
| 15 | SPRING RETAINER 445/12304 | 1 | $6.62 | |||
| 16 | COMPRESSION SPRING 814/00297 | 1 | $26.03 | |||
| 17 | OIL BAFFLE PLATE 445/12305 | 1 | $22.89 | |||
| 17 | PLATE-OIL BAFFLE 331/38655 | 1 | $10.67 | |||
| 18 | PISTON LINER 445/12313 | 1 | $15.01 | |||
| 20 | O RING 200 824 4470 90 828/00224 | 1 | $1.78 | |||
| 21 | O' RING 200-249-4470-99 828/00414 | 1 | $9.50 | |||
| 23 | SEAL RING PTFE DIA.35 904/50020 | 1 | $5.17 | |||
| 24 | BEARING - TAPER ROLLER AS 907/50500 | 1 | $112.66 | |||
| 25 | SHIM KIT 921/50300 | 1 | $18.66 | |||
| 26 | END SPACER P/S MAINSHAFT 445/30010 | 1 | $418.90 | |||
| 27 | O RING (200 144 4470 ) 828/00232 | 1 | $4.69 | |||
| 28 | SHIM PLATE- AS REQ'D 445/12314 | 1 | $40.92 | |||
Showing 1 to 27 of 27 parts
Related Assemblies
-
DIAG-F6-24-1-400234 F6-24-1 CLUTCH,REVERSE POWERSHIFT TRANSMISSION
View Diagram -
DIAG-F6-26-1-400234 F6-26-1 LAYSHAFT COMPONENTS POWERSHIFT TRANSMISSION
View Diagram -
DIAG-F6-23-1-400234 F6-23-1 CLUTCH, INPUT POWERSHIFT TRANSMISSION
View Diagram
