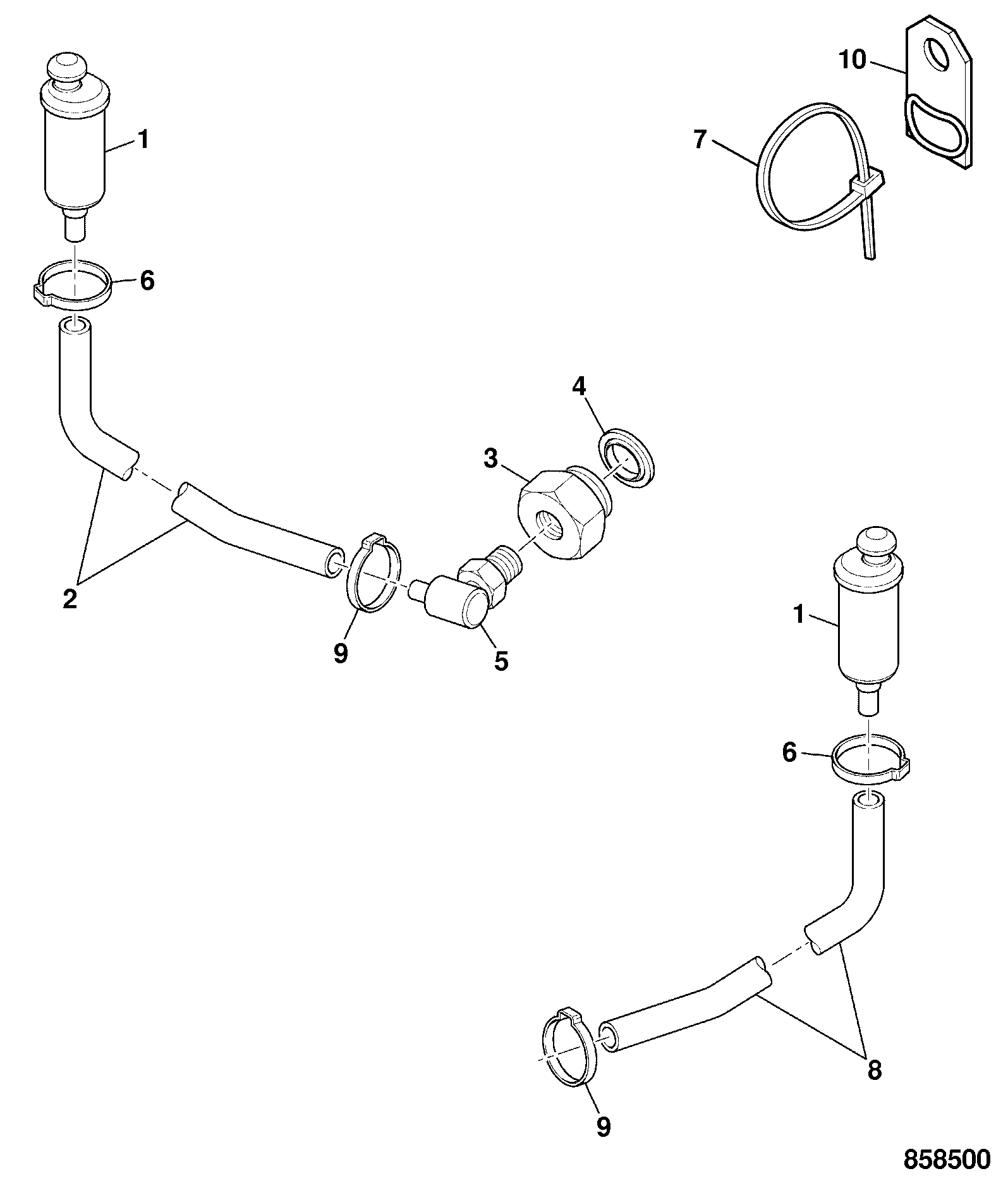

F6-14-10 COOLER HOSES TRANSMISSION,PS760 Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	TRANS COOLER PIPE ASSY 345/00162 650/10213	1	AVAILABLE TO ORDER	$368.53	Quantity
2	Pipe Feed Trans/oi 650/10215	1	AVAILABLE TO ORDER	$199.18	Quantity

Showing 1 to 2 of 2 parts

DIAG-F6-14-1-400712 F6-14-1 TRANSMISSION OIL COOLER & HOSES
View Diagram
DIAG-F6-13-1-400712 F6-13-1 TRANSMISSION MOUNTINGS
View Diagram
DIAG-F6-12-1-400712 F6-12-1 TRANSMISSION,PS760 EXTERNAL PIPEWORK
View Diagram

Previous Assembly DIAG-F6-14-1-400712 F6-14-1 TRANSMISSION OIL COOLER & HOSES Next Assembly DIAG-F6-16-10-400712 F6-16-10 TRANSMISSION,PS760 BEVEL GEARBOX 6 SPEED, 455/10850
