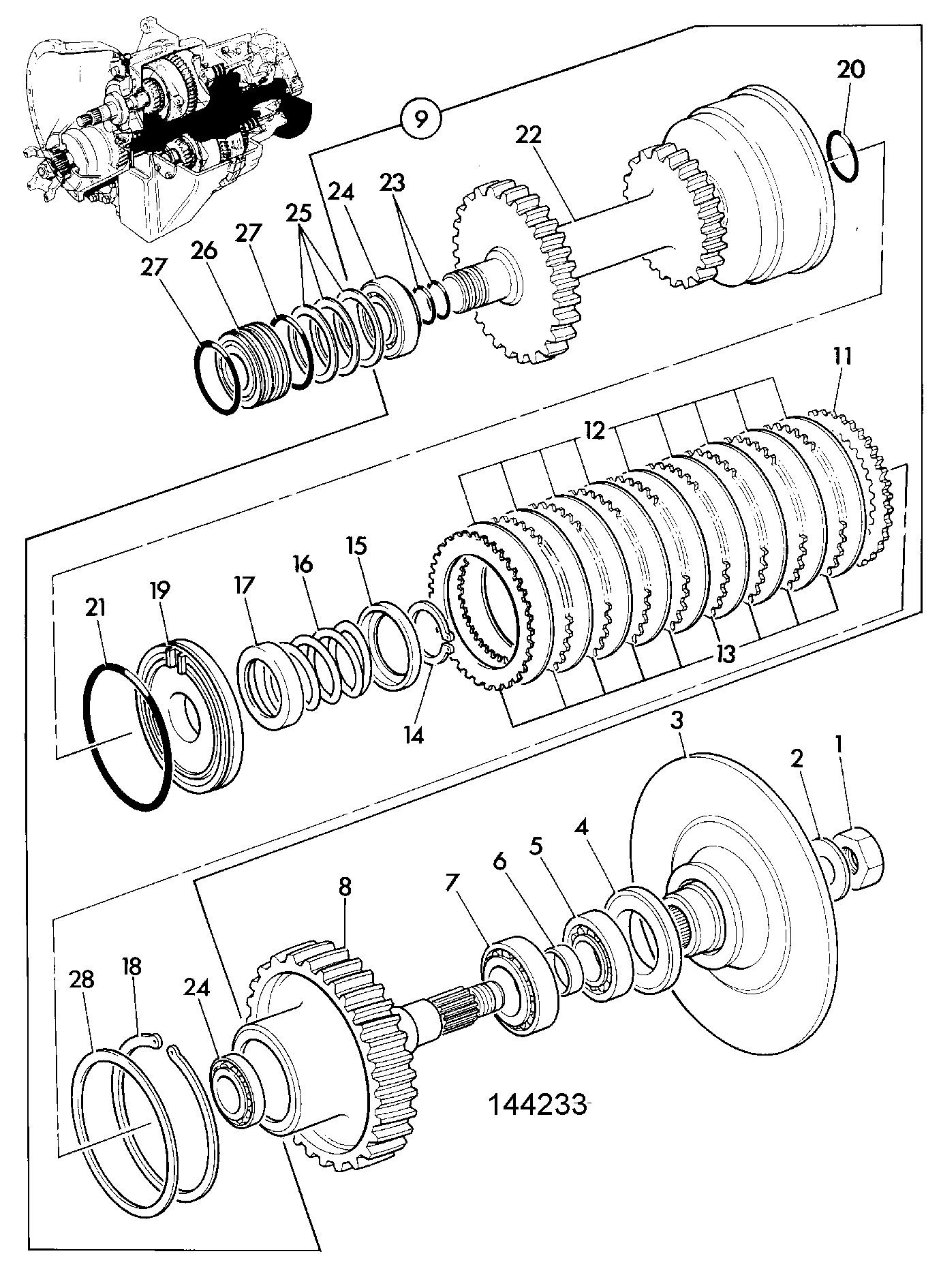

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| OUTPUT THRUST WASHER 445/03209 | 1 | $92.07 | ||||
| THRUST B/RING AXK 4060 917/02800 | 1 | $15.49 | ||||
| 1 | GA INPUT CLUTCH - PS750 459/10002 459/10247 | 1 | $4,085.94 | |||
| 2 | WA CLUTCH HSG INPUT 459/50722 | 1 | $1,494.08 | |||
| 3 | O RING 200 824 4470 90 828/00224 | 1 | $1.78 | |||
| 4 | G.A. PISTON - CLUTCH 449/11370 449/M2157 | 1 | $128.10 | |||
| 5 | O' RING 200-249-4470-99 828/00414 | 1 | $9.50 | |||
| 7 | OIL BAFFLE PLT(SS400 REVE 445/40204 | 1 | $6.35 | |||
| 8 | COMPRESSION SPRING 814/00345 | 1 | $22.20 | |||
| 9 | SPRING RETAINER 445/40203 | 1 | $30.72 | |||
| 10 | LOCK WASHER 823/00523 | 1 | $13.54 | |||
| 11 | DISC SPRING - SPLINED 449/10501 | 1 | $61.91 | |||
| 12 | PRESSURE PLATE 6.5mm 449/10603 331/31563 | 1 | $24.34 | |||
| 13 | FRICTION PLATE-CLUTCH 445/30011 | 1 | $18.53 | |||
| 14 | COUNTER PLATE 336/Y2517 445/12307 | 1 | $28.18 | |||
| 15 | INT CIRCLIP 140mm[1300 14!. 2203/1115 | 1 | $68.03 | |||
| 16 | SHIM PLATE- AS REQ'D 445/12314 | 1 | $40.92 | |||
| 17 | THRUST WASHER 445/12303 | 1 | $42.20 | |||
| 19 | THRUST WASHER 445/73501 445/26108 | 1 | $10.55 | |||
| 20 | GEAR - 31T & PLATE SUPPOR 449/10002 | 1 | $662.62 | |||
| 21 | GEAR - 22T & PLATE SUPPOR 449/10003 | 1 | $614.31 | |||
| 22 | BEARING - NEEDLE ROLLER 917/02700 917/M8053 | 1 | $38.45 | |||
| 24 | BEARING TAPER ROLLER 907/52800 | 1 | $103.83 | |||
| 25 | SEAL RING PTFE DIA.35 904/50020 | 1 | $5.17 | |||
| 29 | OIL SEAL - SINGLE LIP 20/915901 20/MM4617 | 1 | $37.60 | |||
| 30 | SEAL RING 813/50041 | 1 | $17.48 | |||
| 31 | BOLT M8x45 1315/3311Z | 1 | $2.08 | |||
| 32 | COPPER WASHER 823/00291 | 1 | $2.73 | |||
| 33 | SHIM KIT 921/51700 445/04700 | 1 | $6.29 | |||
Showing 1 to 29 of 29 parts
Related Assemblies
-
DIAG-F6-13-20-395103 F6-13-20 TRANSMISSION AWS CLUTCH UNIT DROP BOX 460/91010
View Diagram -
DIAG-F6-13-10-395103 F6-13-10 TRANSMISSION EXTERNAL COMPONENTS AWS 460/91010
View Diagram -
DIAG-F6-13-50-395103 F6-13-50 CLUTCH, MAINSHAFT AWS 460/91010 POWERSHIFT TRANSMISSION
View Diagram
