| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | TRANS HOSE - COOL OUT 616/80161 | 1 | $162.39 | |||
| 2 | Hose 616/80160 | 1 | $218.00 | |||
| 3 | FLANGE SPLIT KRJ2682 | 1 | $18.47 | |||
| 4 | O RING 2401/0210 | 1 | $1.39 | |||
| 5 | CAP SCREW M10x30 1391/3408D | 1 | $4.12 | |||
| 7 | CLAMP TOP 821/00186 | 1 | $10.98 | |||
| 8 | P Clip Base 821/00187 | 1 | $8.80 | |||
| 9 | RUBBER INSERT 821/00188 | 1 | $2.63 | |||
| 11 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 11 | SET-SCREW M10 L-_40mm 1315/0410D | 1 | $2.49 | |||
| 12 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 13 | SPACER 262/04601 | 1 | $57.46 | |||
| 18A | O-RING 2401/0510 | 1 | $1.46 | |||
| 19 | ELBOW ADAPTOR M/F 816/90452 | 1 | $94.27 | |||
| 20 | COMBINATION COOLING PACK 332/T9374 | 1 | $9,970.21 | |||
| 21 | OIL COOLER - TRANSMISSION 332/V5847 | 1 | $1,082.36 | |||
| 22 | Plate Top 30/926263 | 1 | $3,216.05 | |||
| 23 | SET-SCREW M12 L-_35mm 1315/0509D | 1 | $1.67 | |||
| 24 | SPRING-WASHER M12 1425/0009Z 1425/0009D | 1 | $0.85 | |||
| 27 | Plate 30/926264 | 1 | $4,258.61 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-

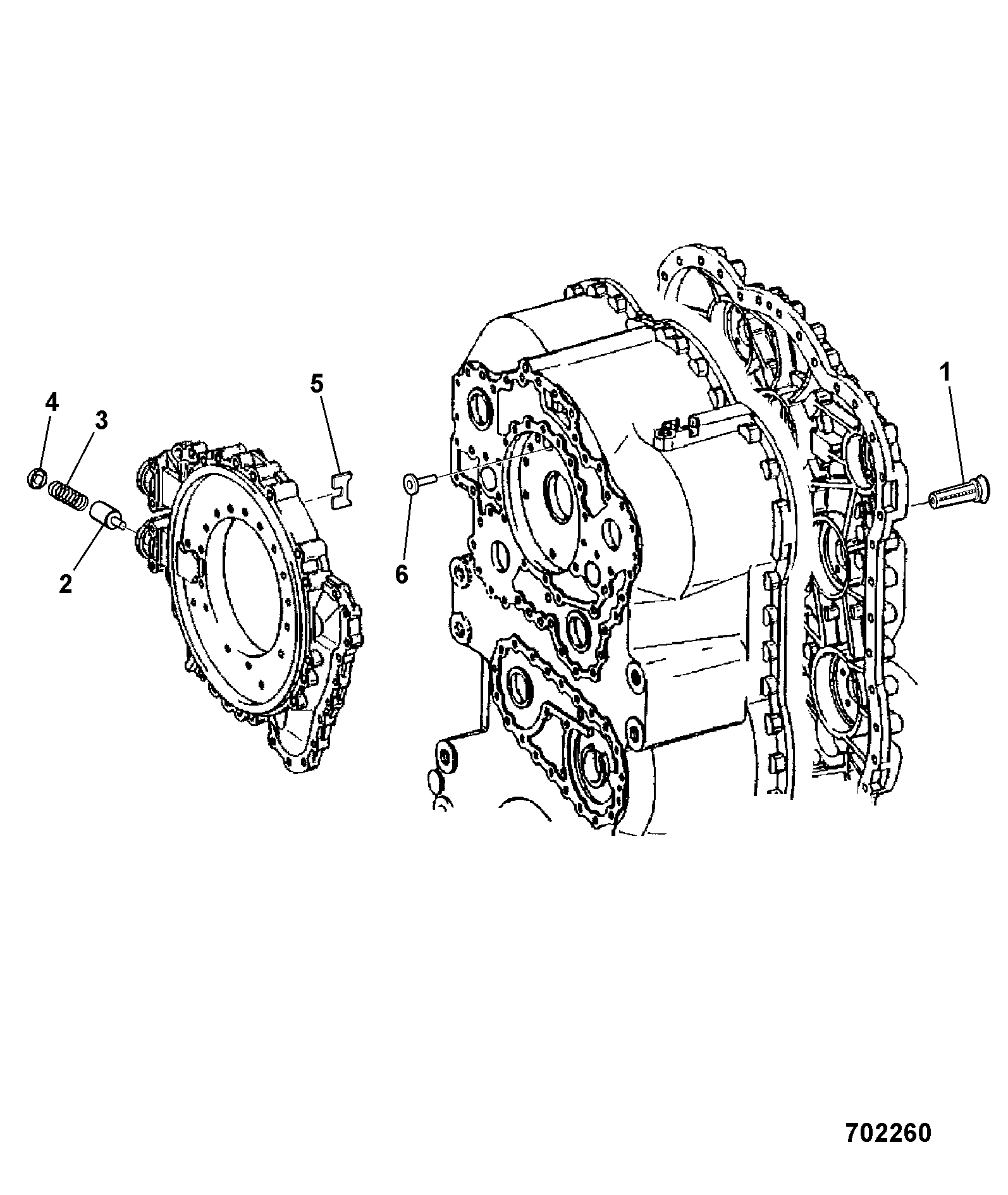

DIAG-F5-22-1-404497 F5-22-1 PRESSURE REGULATOR
View Diagram -
DIAG-F6-3-1-404497 F6-3-1 HOSE AND PIPEWORK TRANSMISSION BY-PASS
View Diagram -

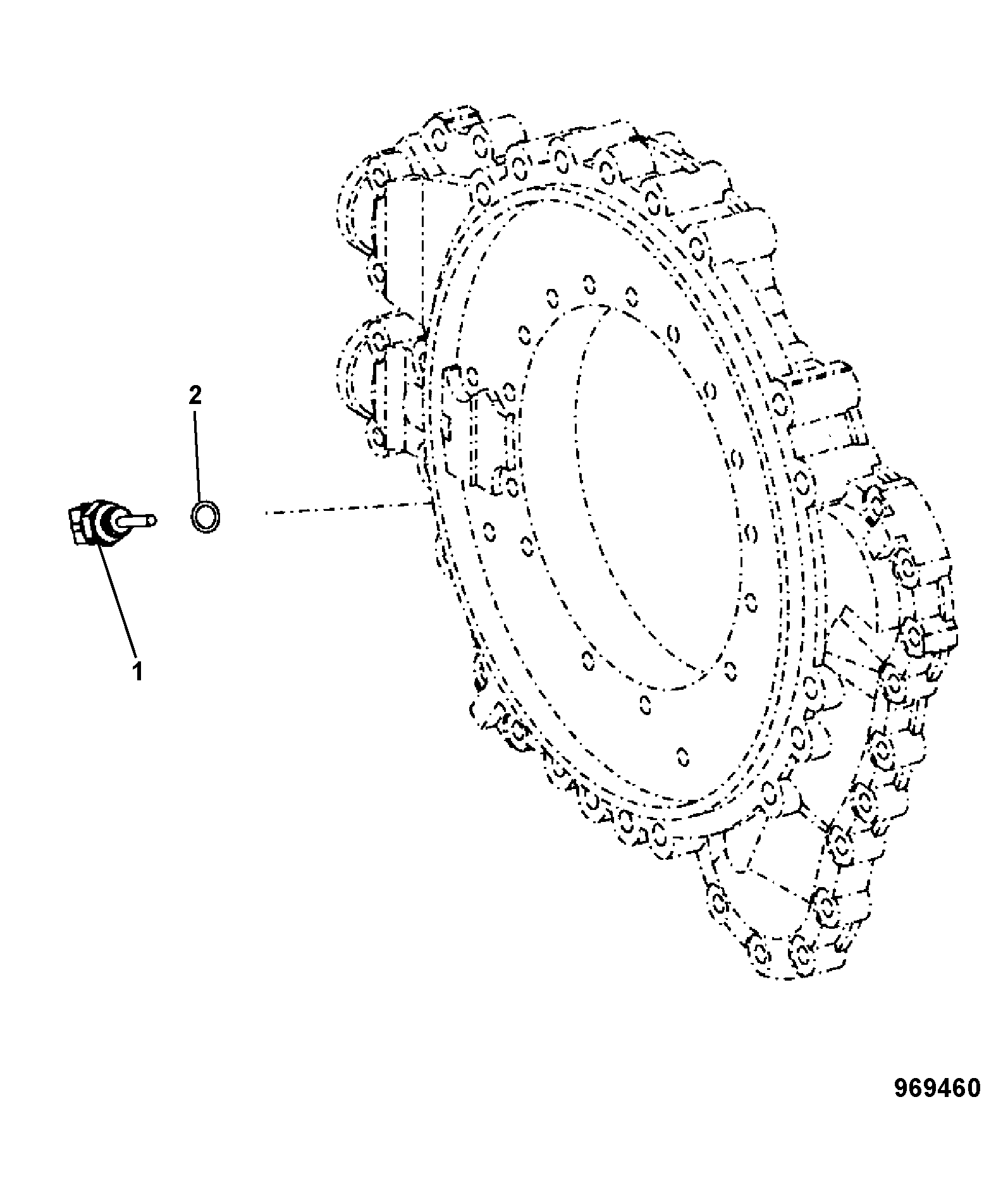

DIAG-F5-20-1-404497 F5-20-1 TEMPERATURE SENDER
View Diagram
