Scroll to zoom Click a part # to view details

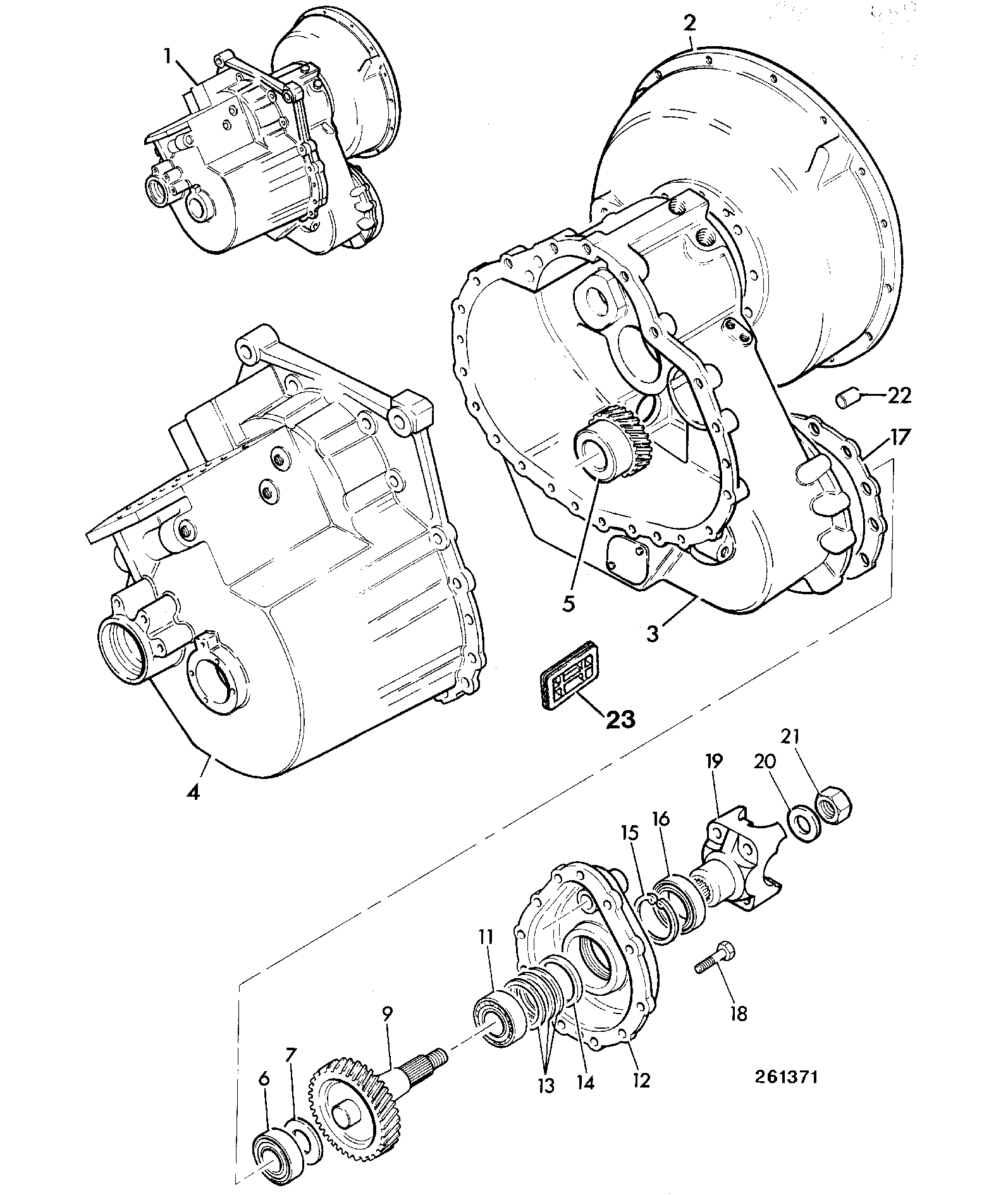

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| ADAPTOR 1/8"BSPM X 7/16"J 445/34400 816/15178 | 1 | $28.80 | ||||
| O Ring 16.5 ID x 3 CS 828/00376 828/10438 | 1 | $1.66 | ||||
| RUBBER GROMMET.GEARBOX. 445/13703 | 1 | $91.89 | ||||
| 1 | GA PS750 GEARBOX 4WD XLR 449/13170 | 1 | $31,929.98 | |||
| 2 | HOUSING - FLYWHEEL 449/02102 | 1 | $1,877.55 | |||
| 3 | FRONT CASE M/C 4WD 459/30262 | 1 | $5,274.40 | |||
| 3 | SERVICE KIT-PS750 4WD FRO 459/30470 998/M2006 | 1 | $2,920.63 | |||
| 4 | BLANKING PLUG 460/32702 | 1 | $211.92 | |||
| 4 | G.A. REAR CASE (STD) 459/10266 | 1 | $3,006.14 | |||
| 5 | 4WD CLUTCH G.A. 445/64700 | 1 | $1,477.71 | |||
| 5 | G.A. CLUTCH - 4WD 459/M6900 459/M4796 | 1 | $1,051.34 | |||
| 6 | SHIM KIT 40/303518 | 1 | $6.58 | |||
| 7 | SPACER 4WD 445/04012 | 1 | $21.92 | |||
| 8 | INT CIRCLIP 65mm [1300 06 2203/1071 | 1 | $15.38 | |||
| 9 | SEAL - TRIPLE LIP 904/20172 | 1 | $37.32 | |||
| 10 | GASKET - 4WD 813/50054 | 1 | $7.23 | |||
| 11 | COVER - 4WD OUTPUT-449/10014P 459/30482 | 1 | $437.59 | |||
| 12 | SETSCREW 826/01417 | 1 | $12.98 | |||
| 13 | COUPLING YOKE 445/10703 | 1 | $381.90 | |||
| 14 | M 24 HARDENED WASHER 823/00328 | 1 | $12.61 | |||
| 15 | STAKE NUT M24 826/00817 | 1 | $3.32 | |||
| 16 | GEAR-INPUT 4WD-21T 445/38601 | 1 | $857.58 | |||
| 17 | O RING (200-016-4470) 828/00236 | 1 | $0.23 | |||
| 18 | GEAR-OUTPUT-4WD-44T 445/38602 | 1 | $2,672.87 | |||
| 20 | THRUST WASHER 445/05003 823/10582 | 1 | $98.49 | |||
| 21 | ROLLER BEARING HK 4020A 917/02600 | 1 | $36.48 | |||
| 22 | BEARING TAPER ROLLER 907/52800 | 1 | $103.83 | |||
| 24 | SENSOR GEAR TOOTH ASSEMBLY 704/30500 | 1 | $331.31 | |||
| 24 | SENSOR GEARTOOTH 716/30134 | 1 | $301.79 | |||
| 25 | (W) (P) SCREW 826/00792 | 1 | $4.63 | |||
| 28 | 3/SPEED CONVERSION HARNSS 721/11009 | 1 | $262.06 | |||
| 28 | CONNECTOR 716/16100 | 1 | $82.72 | |||
| 28 | CONNECTOR 3 SPEED 716/25300 | 1 | $70.22 | |||
Showing 1 to 33 of 33 parts
Related Assemblies
-
DIAG-F6-1-2-402246 F6-1-2 TRANSMISSION,4 SPEED 4 WD,XLR FARM SPECIAL PLUS
View Diagram -
DIAG-F6-1-3-402246 F6-1-3 TRANSMISSION 4 SPEED, 4 WD FARM SPECIAL PLUS
View Diagram -

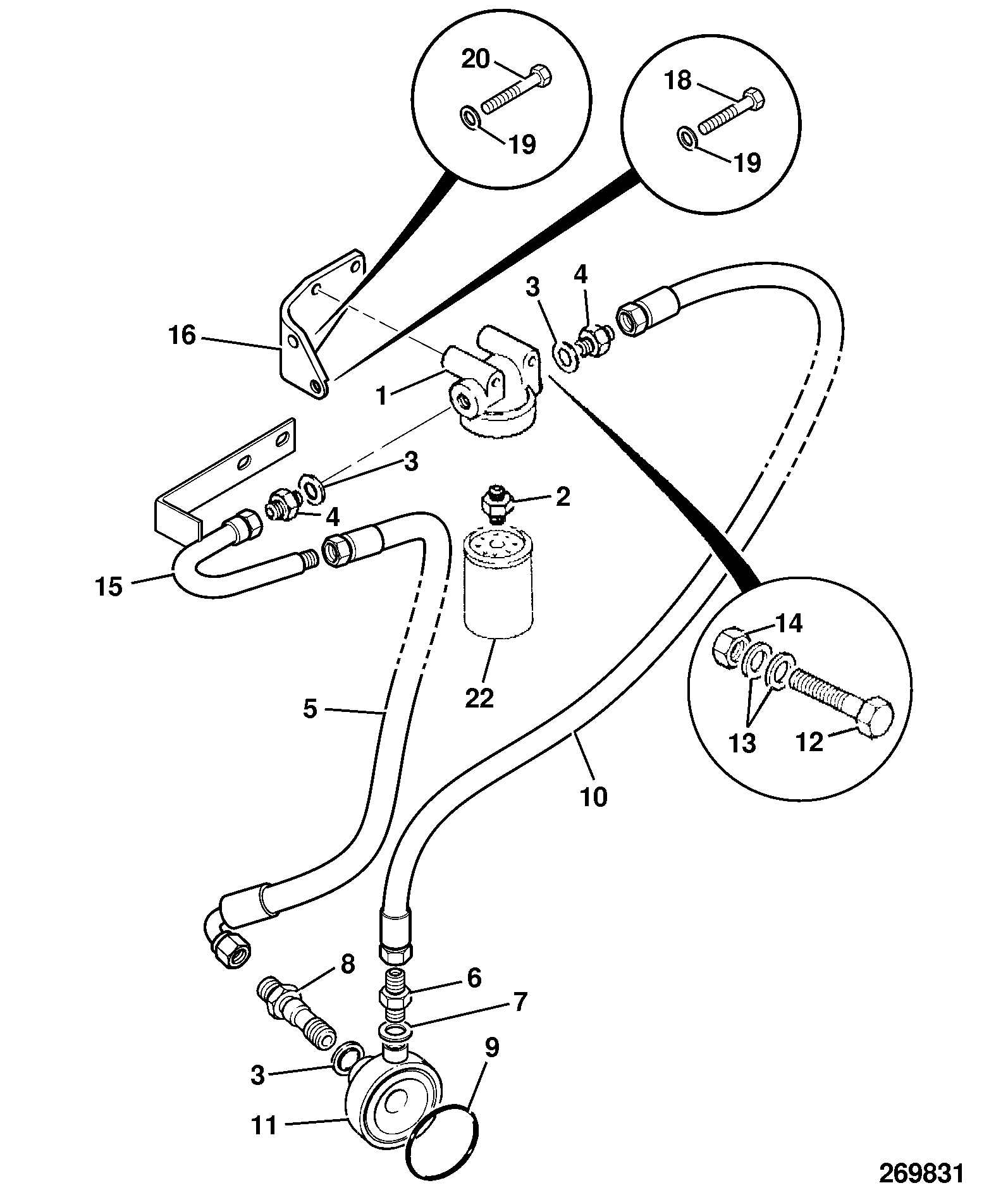

DIAG-F5-11-1-402246-13985535 F5-11-1 FILTER,TRANSMISSION (REMOTE FITTING)
View Diagram
