Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | STAKE NUT M24 826/00817 | 1 | $3.32 | |||
| 3 | M 24 HARDENED WASHER 823/00328 | 1 | $12.61 | |||
| 4 | COUPLING FLANGE-S/TEETH-5 454/99201 | 1 | $78.49 | |||
| 5 | SEAL - TRIPLE LIP 904/20172 | 1 | $37.32 | |||
| 6 | INT CIRCLIP 65mm [1300 06 2203/1071 | 1 | $15.38 | |||
| 7 | SPACER 4WD 445/04012 | 1 | $21.92 | |||
| 8 | SHIM KIT 40/303518 | 1 | $6.58 | |||
| 9 | BEARING TAPER ROLLER 907/52800 | 1 | $103.83 | |||
| 14 | CIRCLIP(KANBAN) 2203/1030 | 1 | $2.08 | |||
| 15 | PLUG - BLANKING 835/10068 | 1 | $3.23 | |||
| 16 | CAPSCREW M10 X 40 - ENCAP 1392/3410 | 1 | $3.43 | |||
| 17 | SHAFT - IDLER 459/50294 | 1 | $360.53 | |||
| 18 | TENSION PIN (Re-520) 2102/0405 | 1 | $0.18 | |||
| 19 | BEARING-TAPER-ROLLER 907/53100 | 1 | $40.89 | |||
| 20 | IDLER GEAR 454/40820 | 1 | $420.50 | |||
| 21 | SPACER KIT 921/51100 | 1 | $780.37 | |||
| 23 | CAP SCREW M10x35L 1392/3409Z | 1 | $5.61 | |||
| 24 | KEEP PLATE - RANGEBOX 454/60507 | 1 | $32.00 | |||
| 25 | BUSH - SELECTOR SHAFT 454/46111 | 1 | $10.20 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-

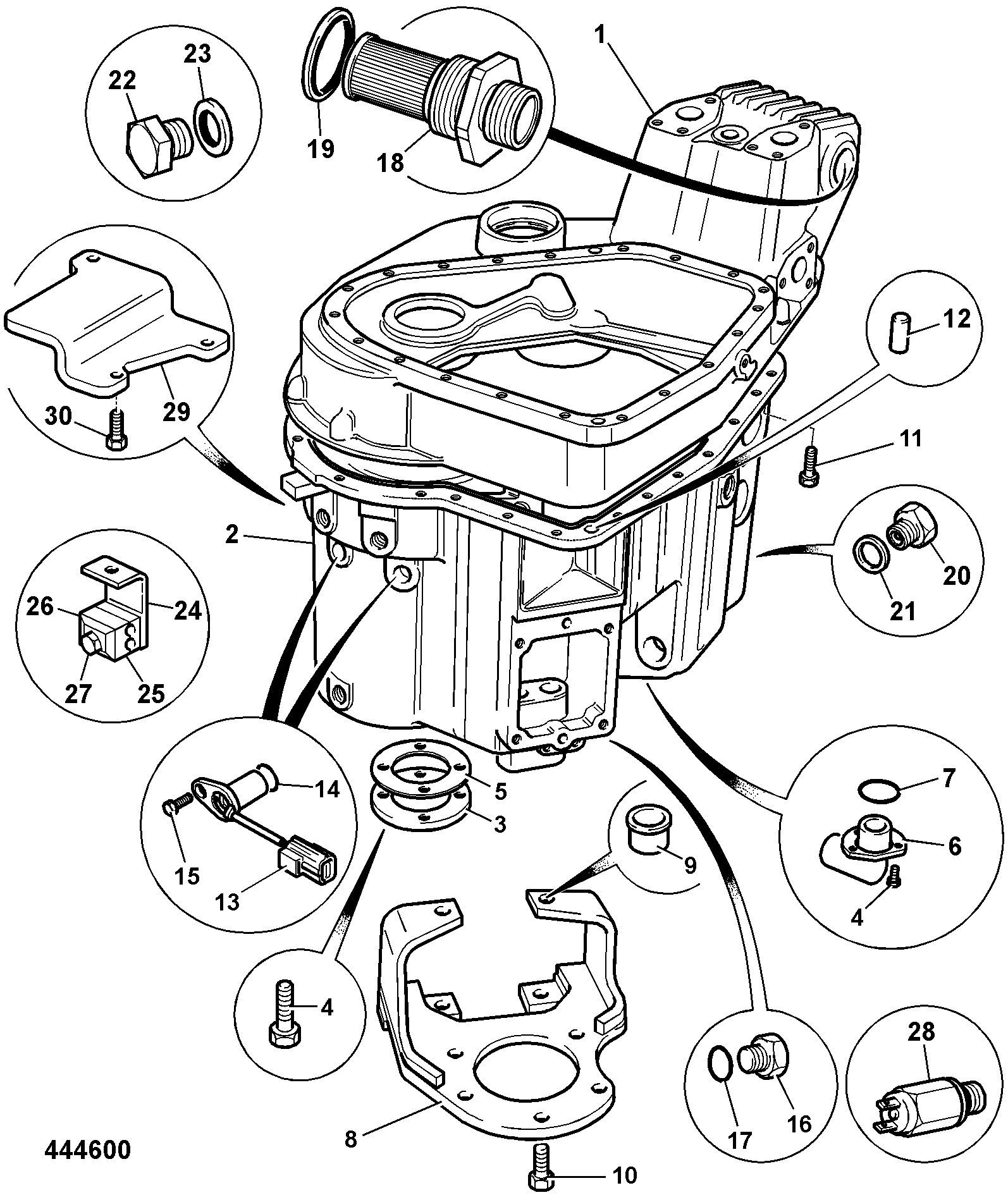

DIAG-F6-2-1-393590 F6-2-1 GEARBOX HOUSING
View Diagram -

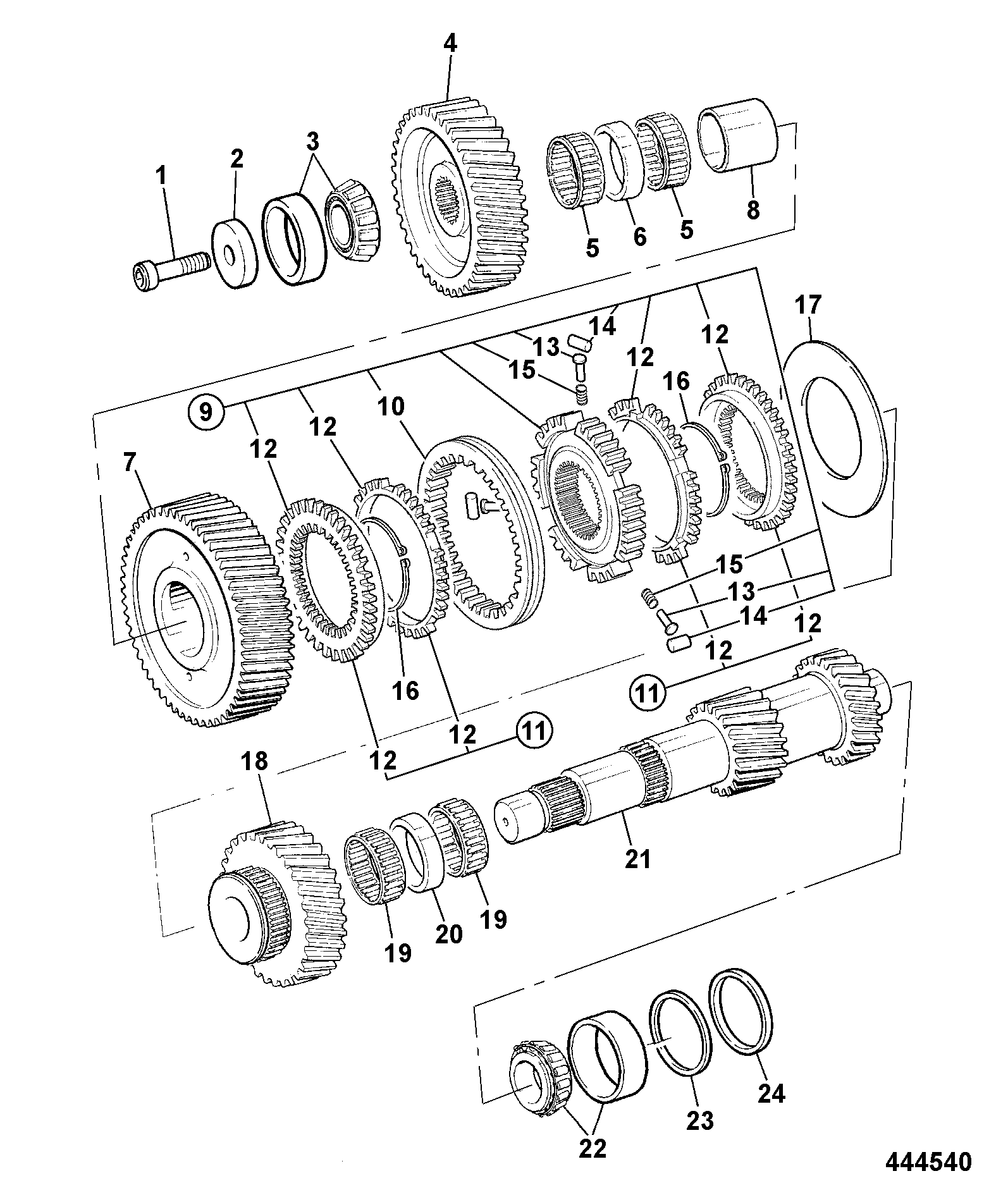

DIAG-F6-3-1-393590 F6-3-1 SHAFT, INPUT AND REVERSE GEAR
View Diagram -
DIAG-F5-2-2-393590 F5-2-2 TRANSMISSION GEARBOX ASSEMBLY, TWIN PTO 40/50/65/80KPH, 6 SPEED CABLESHIFT
View Diagram
