| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| Q-R COUPLING CAP 30/600139 335/Y2964 | 1 | $0.44 | ||||
| SEAL - TRIPLE LIP 904/20172 | 1 | $37.32 | ||||
| SOLENOID VALVE ASSY-CETOP 25/220998 25/MM6396 | 1 | $526.75 | ||||
| 2 | FLYWHEEL HOUSING SAE3 459/30464 | 1 | $861.96 | |||
| 3 | GA REVERSER UNIT STD 332/Y1327 | 1 | $1,650.50 | |||
| 4 | YOKE - OUTPUT - 1480 459/70317 | 1 | $358.49 | |||
| 6 | GA GEAR LEVER TURRET 332/Y0161 | 1 | $273.08 | |||
| 7 | SOLONOID BLOCK 459/10144 | 1 | $311.95 | |||
| 10 | TAPER PLUG - 1/4" BSP 816/80052 | 1 | $11.57 | |||
| 11 | WASHER BONDED 1/4 BSP 1406/0011 | 1 | $1.52 | |||
| 12 | COUPLING MALE G1/4"B 333/Y6172 | 1 | $8.23 | |||
| 16 | TAPERED PROTECTION PLUG 835/10087 | 1 | $12.52 | |||
| 20 | ADAPTOR G1/4A M/M 1604/0002 | 1 | $29.81 | |||
| 26 | BOLT 826/01361 | 1 | $3.43 | |||
Showing 1 to 14 of 14 parts
Related Assemblies
-

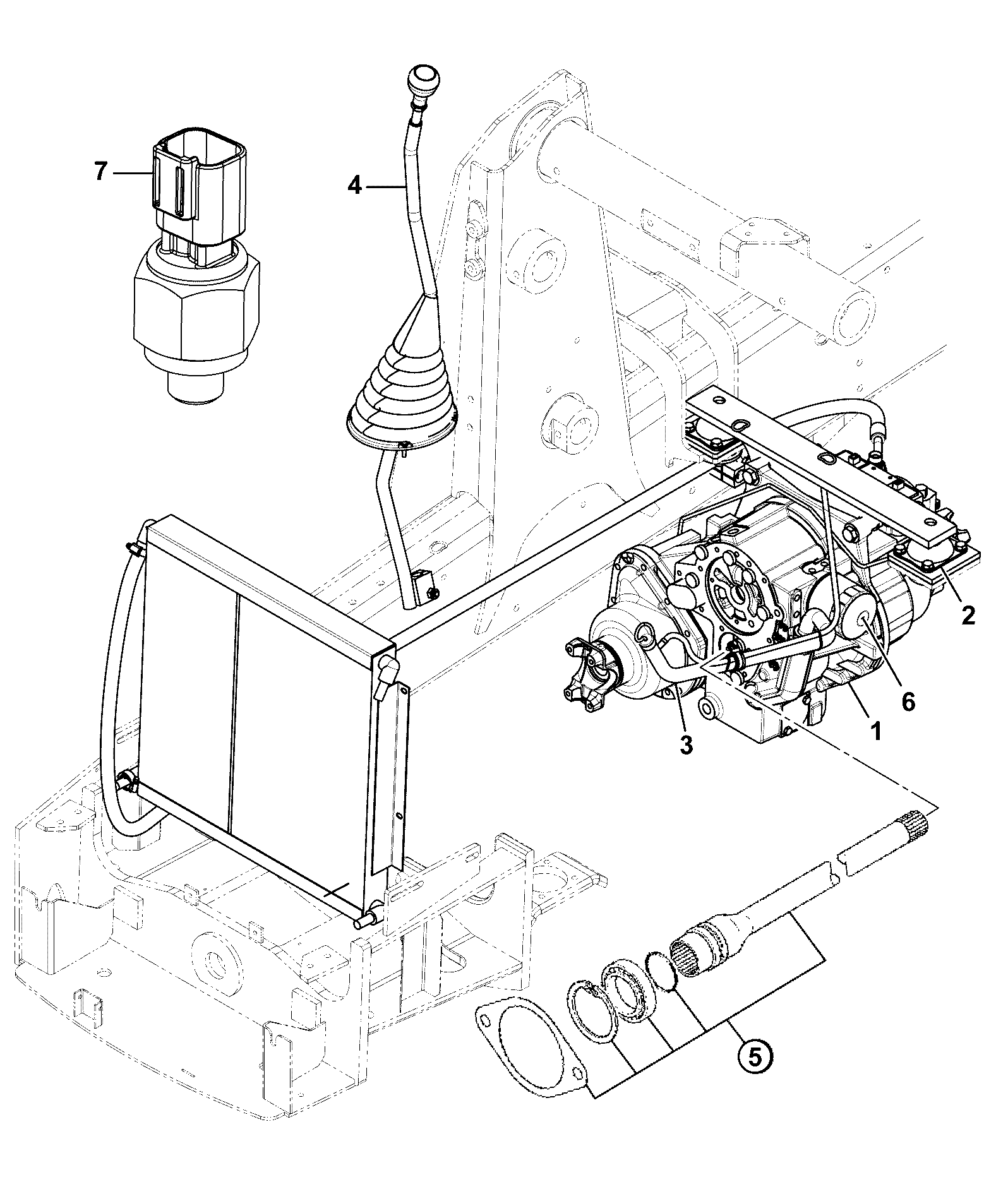

DIAG-F500-1-5-394883 F500-1-5 SYNCHROSHUTTLE GEARBOX INSTALLATION ASSEMBLIES 2WD
View Diagram -
DIAG-F520-30-5-394883 F520-30-5 COMMON PARTS SYNCHROSHUTTLE TRANSMISSION 2WD, LOW RATIO
View Diagram -
DIAG-F590-25-5-394883 F590-25-5 OTHER SS PARTS ASSEMBLY REARCASE, 2WD
View Diagram
