Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | TORQUE CONVERTER 12.2" 04/501600 04/600650 | 1 | $1,121.28 | |||
| 2 | DRIVE PLATE KIT 12.2 04/501700 | 1 | $490.24 | |||
| 3 | BOLT 04/501703 | 1 | $10.46 | |||
| 4 | Bolt 04/501702 | 1 | $16.72 | |||
| 6 | SET-SCREW M10 L-_30mm 1315/0408Z | 1 | $1.22 | |||
| 7 | DOWEL 02/101370 | 1 | $19.27 | |||
| 9 | DIPSTICK (LONG) 123/02459 | 1 | $32.36 | |||
| 10 | 1"SEALASTIC NUT 155/10600 | 1 | $68.77 | |||
| 11 | BRACKET 123/02598 | 1 | $226.33 | |||
| 12 | TUBE, 10 METRES 647/02111 | 1 | $55.49 | |||
| 13 | HOSE CLIP 821/00433 | 1 | $7.72 | |||
| 14 | SET SCREW M10x20 1315/0405Z | 1 | $4.23 | |||
| 15 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
Showing 1 to 13 of 13 parts
Related Assemblies
-
DIAG-F5-7-3-395104-11190292 F5-7-3 TORQUE CONVERTER 2.8:1 RATIO DRIVE PLATE & TRANSMISSION DIPSTICK
View Diagram -

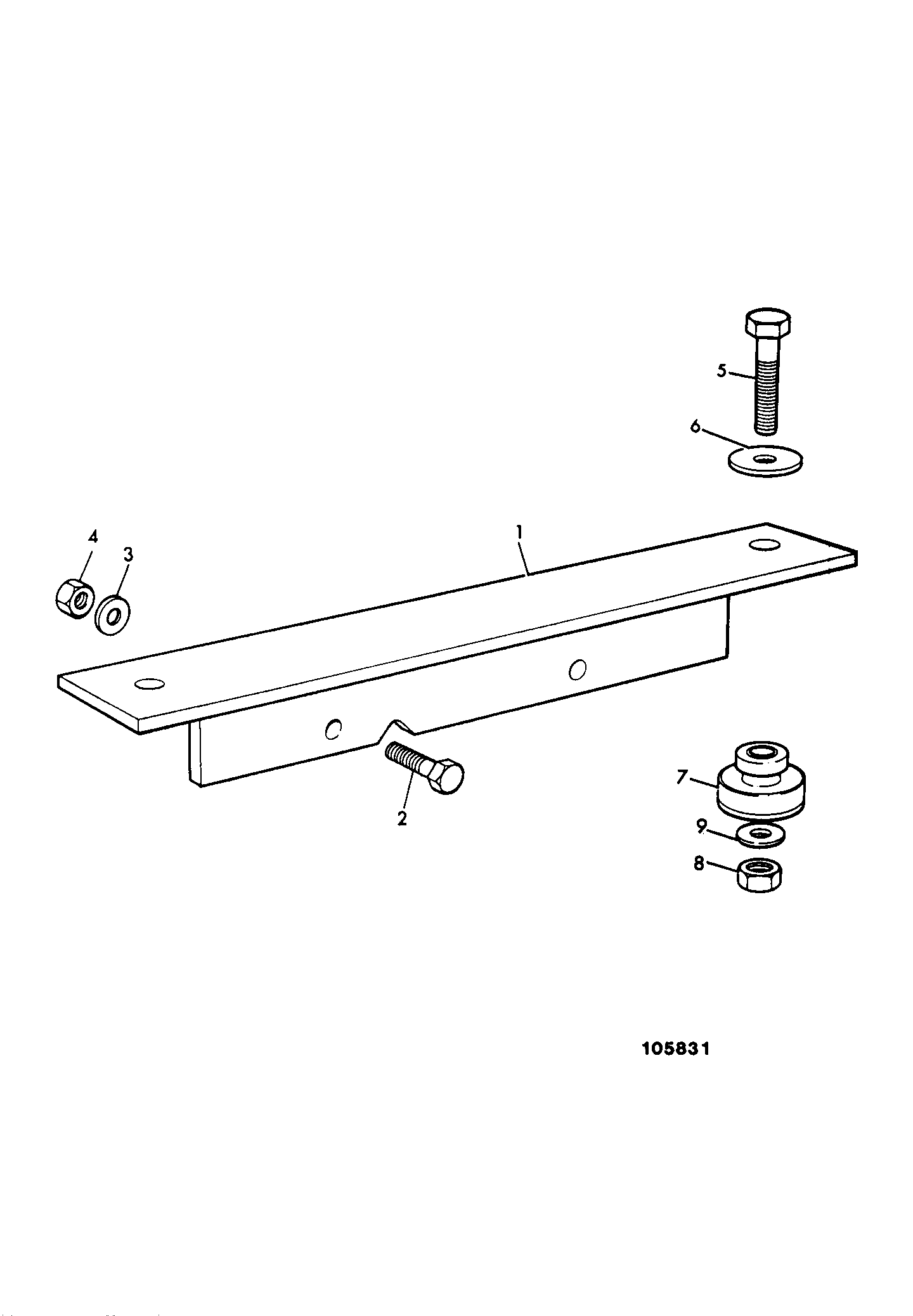

DIAG-F5-8-1-395104-11190300 F5-8-1 TRANSMISSION MOUNTING JCB SYNCRO SHUTTLE, 2WD, 4WD
View Diagram -

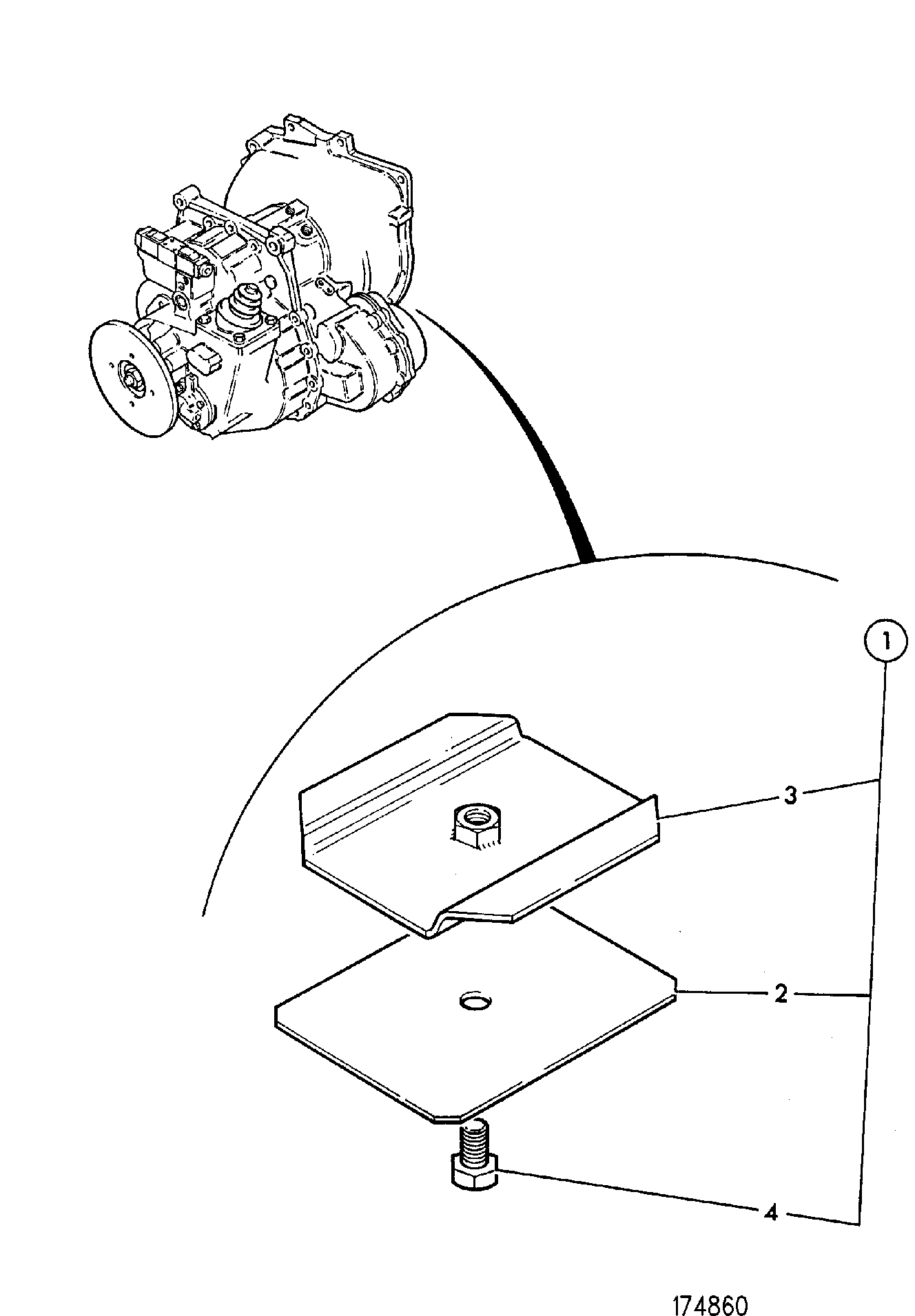

DIAG-F5-9-1-395104-11190303 F5-9-1 FLYWHEEL HOUSING COVER PLATE 2WD, 4WD
View Diagram
