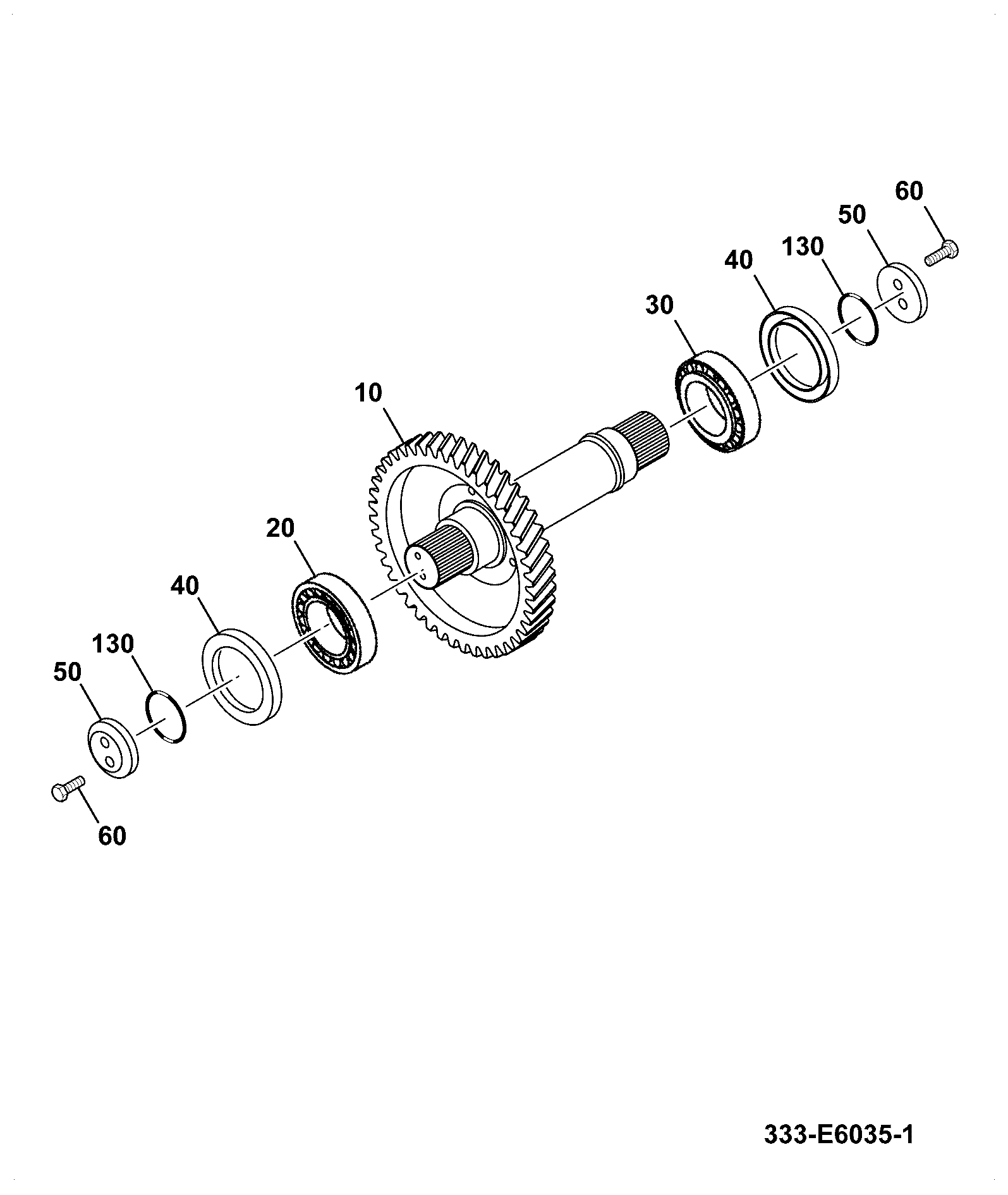

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | Shaft 333/E6249 | 1 | $2,702.75 | |||
| 20 | STUD 826/10625 | 1 | $2.89 | |||
| 40 | Coupling 333/E6243 | 1 | $2,738.03 | |||
| 40/42 | Carrier 333/E6244 | 1 | $3,421.07 | |||
| 40/52 | PISTON 04/600203 | 1 | $219.74 | |||
| 40/52/30 | ORING 04/600169 | 1 | $18.85 | |||
| 40/52/40 | O RING 04/600204 | 1 | $41.81 | |||
| 40/74 | WASHER 04/600239 | 1 | $17.60 | |||
| 40/80 | Ring 333/E6245 04/600905 | 1 | $22.86 | |||
| 40/90 | SPRING SPRING COMPRESSION 04/600240 | 1 | $179.26 | |||
| 40/92 | Ring 333/E6196 | 1 | $16.22 | |||
| 40/106 | DISC, CLUTCH 04/600698 | 1 | $80.24 | |||
| 40/110 | DISC CLUTCH 04/600699 | 1 | $111.49 | |||
| 40/120 | DISC 04/600176 | 1 | $55.44 | |||
| 40/130 | Shim 04/600177 333/E6198 | 1 | $360.46 | |||
| 40/150 | RING 04/600189 | 1 | $43.48 | |||
| 40/150 | RING 04/600190 | 1 | $71.55 | |||
| 40/150 | RING 04/600191 | 1 | $56.03 | |||
| 40/150 | RING 04/600192 | 1 | $69.73 | |||
| 40/150 | RING 04/600193 | 1 | $51.32 | |||
| 40/150 | RING 04/600194 | 1 | $29.20 | |||
| 40/150 | RING 04/600196 | 1 | $80.83 | |||
| 40/150 | RING 04/600197 | 1 | $69.79 | |||
| 40/150 | RING 04/600198 | 1 | $29.20 | |||
| 40/150 | Ring retaining 04/600188 | 1 | $44.16 | |||
| 40/150 | Ring retaining 04/600195 | 1 | $69.73 | |||
| 40/150 | Ring retaining 04/600199 | 1 | $73.84 | |||
| 40/150 | Ring retaining 04/600200 | 1 | $69.79 | |||
| 40/150 | Ring retaining 04/600201 | 1 | $74.88 | |||
| 160 | Gear idler 04/600235 | 1 | $2,357.03 | |||
| 170 | BEARING 04/600236 | 1 | $146.73 | |||
| 180 | BEARING 04/600552 | 1 | $110.43 | |||
| 190 | RING RETAINING 04/600238 | 1 | $33.70 | |||
| 200 | CIRCLIP 10/907409 | 1 | $4.48 | |||
| 210 | Bearing Bearing 333/E6202 | 1 | $566.43 | |||
| 220 | Bearing Bearing 333/E6242 | 1 | $582.00 | |||
| 230 | RING PISTON 04/800629 04/600186 | 1 | $24.57 | |||
Showing 1 to 37 of 37 parts
Related Assemblies
-
DIAG-F5-40-1-404777 F5-40-1 PS TRANSMISSIONS COUPLING FIFTH
View Diagram -
DIAG-F5-42-1-404777 F5-42-1 PS TRANSMISSIONS OUTPUT GROUP
View Diagram -
DIAG-F5-39-1-404777 F5-39-1 PS TRANSMISSIONS COUPLING FOURTH
View Diagram
