Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | DIPSTICK TRANS 478/00691 | 1 | $235.98 | |||
| 2 | TUBE TRANSMISSION 478/00687 | 1 | $171.18 | |||
| 4 | GROMMET 2410/0105 | 1 | $4.77 | |||
| 5 | BOLT M12X55 1315/3513Z | 1 | $1.94 | |||
| 6 | NUT M12 STD SELF LOCK 1370/0403Z | 1 | $2.11 | |||
| 7 | TUBE UPPER FILLER 477/01498 | 1 | $1,639.68 | |||
| 8 | FILLER CAP (VENTED) 477/01134 | 1 | $63.15 | |||
| 9 | REINFORCED PVC TUBE - 1m length 647/03900 | 1 | $42.03 | |||
| 10 | (W) (P) CLIP - WORMDRIVE 25/40mm 2201/0007 | 1 | $4.66 | |||
| 11 | GEARBOX FILLER 477/00419 | 1 | $106.80 | |||
| 12 | WASHER BONDED 1"BSP 1406/0026 | 1 | $11.54 | |||
| 13 | HOSE 3.04M(10FT) 648/21209 648/21200 | 1 | $186.73 | |||
| 14 | CLIP - WORMDRIVE 12/22mm(KANBAN) 2201/0004 | 1 | $4.72 | |||
| 15 | GROMMET (P493) 2410/0306 | 1 | $19.90 | |||
| 16 | CABLE TIE 180MM 123/00190 | 1 | $0.30 | |||
| 17 | TRANSMISSION OIL FILLER LABEL 817/00150 | 1 | $46.54 | |||
| 18 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 19 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-
DIAG-F5-3-1-393522 F5-3-1 PIPEWORK GEARBOX BALANCE
View Diagram -

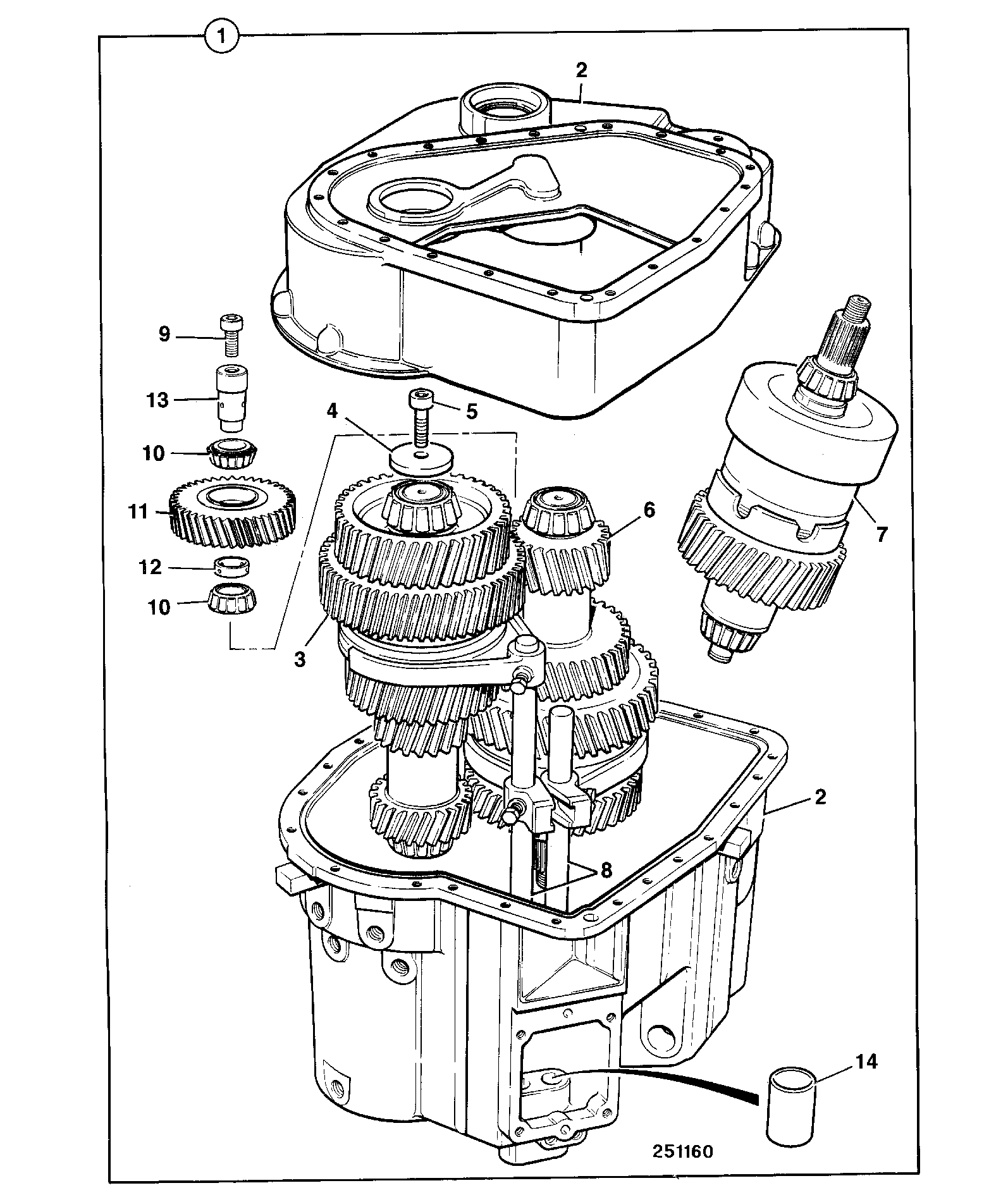

DIAG-F6-1-1-393522 F6-1-1 GEARBOX, RANGE 50KPH
View Diagram -

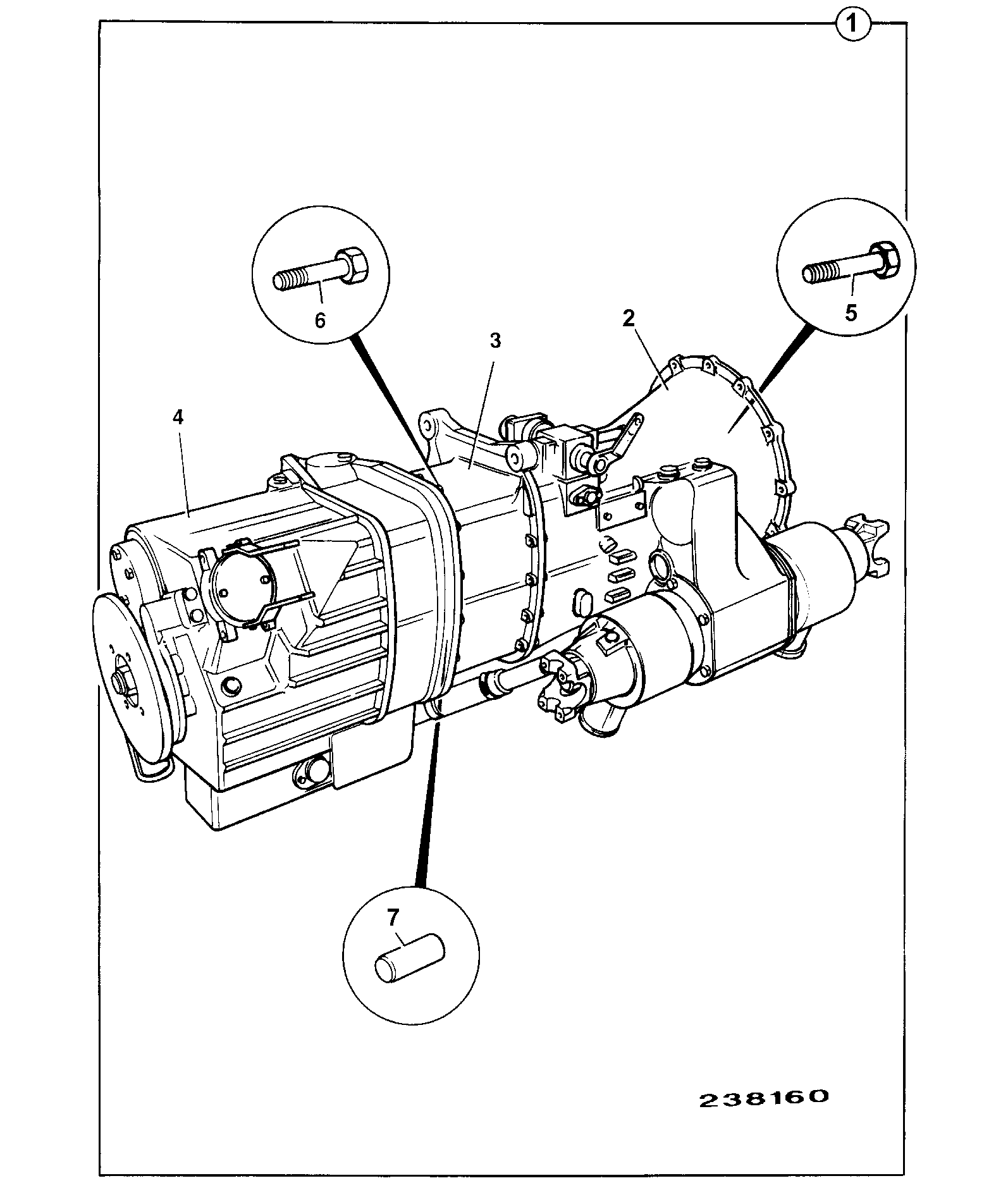

DIAG-F5-2-6-393522 F5-2-6 TRANSMISSION GEARBOX ASSEMBLY, 30KPH SELECTRONIC
View Diagram
