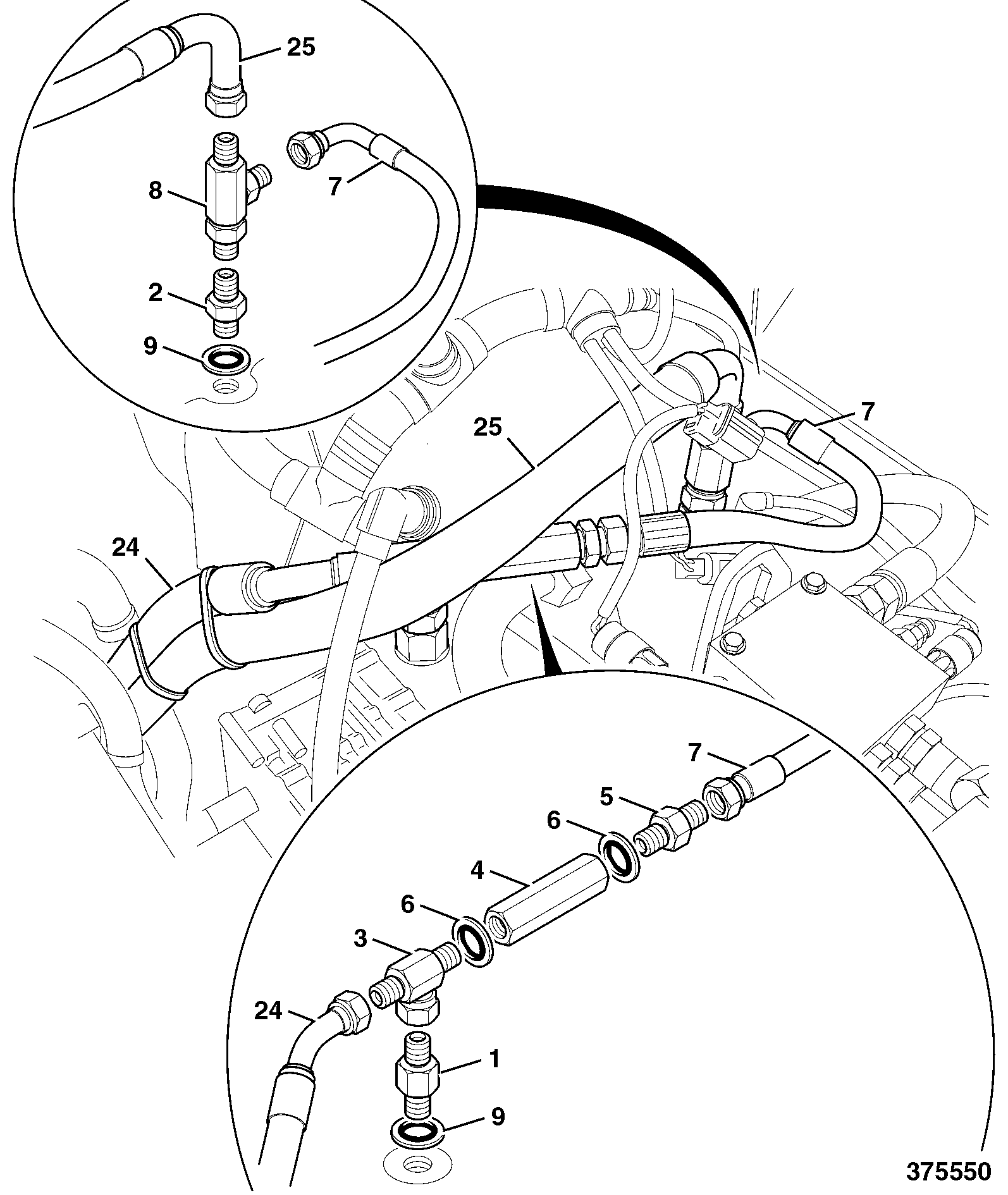

F5-24-1 OIL PIPES Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	ADAPTOR 04/800385	1	AVAILABLE TO ORDER	$26.16	Quantity
2	O RING 10/906821	1	AVAILABLE TO ORDER	$4.45	Quantity
3	PIPE 04/800584 04/600497	1	AVAILABLE TO ORDER	$297.13	Quantity
4	PIPE 04/600498	1	AVAILABLE TO ORDER	$308.54	Quantity
5	Pipe 04/600499	1	AVAILABLE TO ORDER	$71.46	Quantity
8	Adapter 04/600529	1	AVAILABLE TO ORDER	$148.92	Quantity
9	O RING 04/800590	1	AVAILABLE TO ORDER	$14.55	Quantity
