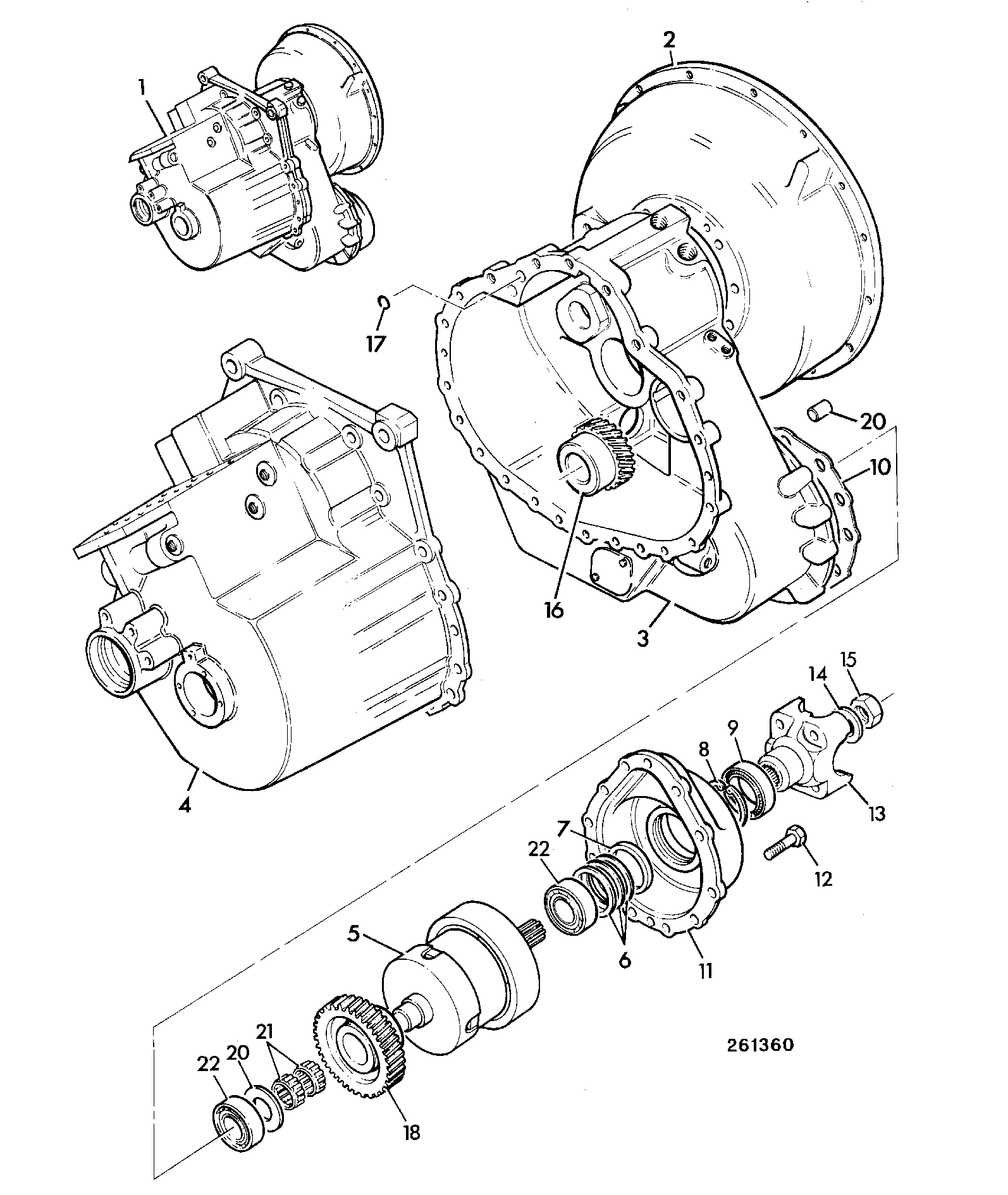

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| (P) 2.5 SEC DELAY TIMER 728/24800 | 1 | $180.49 | ||||
| ADAPTOR G3/8A-G1/4A 1606/0003 1606/2052 | 1 | $15.43 | ||||
| BOLT M10 X 100 1321/3420Z | 1 | $7.49 | ||||
| KEEP PLATE 911/15101 | 1 | $4.87 | ||||
| TIMER LINK HARNESS 721/11649 | 1 | $195.77 | ||||
| 1 | HOUSING - FLYWHEEL 449/02102 | 1 | $1,877.55 | |||
| 2 | FRONT CASE M/C 4WD 459/30262 | 1 | $5,274.40 | |||
| 3 | BLANKING PLUG 460/32702 | 1 | $211.92 | |||
| 4 | SETSCREW 826/01417 | 1 | $12.98 | |||
| 5 | DOWEL 445/14001 | 1 | $6.66 | |||
| 7 | ADAPTOR 1/2BSP X 5/8BSP 1606/0017 | 1 | $14.01 | |||
| 8 | WASHER 1406/0018 | 1 | $4.09 | |||
| 9 | PLUG-RELIEF VALVE 816/80041 | 1 | $37.00 | |||
| 10 | SPRING (T.C. RELIEF) 814/00222 | 1 | $8.72 | |||
| 11 | 14.DIA BALL RB14910TG20T 916/00008 | 1 | $1.22 | |||
| 12 | TAPER PLUG - 3/8 BSP(KANBAN) 816/80053 | 1 | $12.08 | |||
| 13 | GASKET 813/50027 | 1 | $2.11 | |||
| 14 | SUCTION STRAINER 32/902200 | 1 | $125.88 | |||
| 15 | SETSCREW M8 x 16 1321/0303Z | 1 | $1.49 | |||
| 16 | FILTER ADAPTOR 816/15184 | 1 | $67.41 | |||
| 17 | FILTER (NOW SUPERSEDED BY 581/M8563) 581/18063 581/M7012 | 1 | $17.79 | |||
| 18 | 'O' RING 828/10222 | 1 | $0.98 | |||
| 20 | WASHER BONDED 3/8" BSP(KANBAN) 1406/0015 | 1 | $1.52 | |||
| 24 | (W) (P) GRUBSCREW M8 X 8L 826/01065 | 1 | $11.22 | |||
| 30 | ADAPTOR 7/16UNFx1/4BSP 1603/0001 | 1 | $14.07 | |||
| 31 | WASHER BONDED 1/4 BSP 1406/0011 | 1 | $1.52 | |||
| 32 | PRESSURE TEST POINT 3/8" 45/908300 45/MM7150 | 1 | $31.17 | |||
| 33 | TRANS OIL PRESS SWITCH 701/80322 403/N4302 | 1 | $38.25 | |||
| 34 | BRACKET-CALIPER MOUNTING 331/16159 | 1 | $286.49 | |||
| 35 | BOLT - VERBUS RIPP - M12 x 30 826/01080 | 1 | $3.41 | |||
| 38 | (W) (P) SCREW 826/00792 | 1 | $4.63 | |||
| 39 | O Ring 16.5 ID x 3 CS 828/00376 828/10438 | 1 | $1.66 | |||
| 40 | SENSOR GEARTOOTH 716/30134 | 1 | $301.79 | |||
| 41 | SPACER 449/03301 | 1 | $111.52 | |||
Showing 1 to 34 of 34 parts
Related Assemblies
-
DIAG-F5-2-2-402417-14146335 F5-2-2 GEARBOX,4WD CLUTCH EXTERNAL COMPONENTS
View Diagram -
DIAG-F5-2-10-402417-14146337 F5-2-10 CLUTCH,INPUT P/SHIFT TRANSMISSION
View Diagram -
DIAG-F5-1-3-402417 F5-1-3 TRANSMISSION, 4 SPEED,PERM 4WD (TIER TWO ENGINES)
View Diagram
