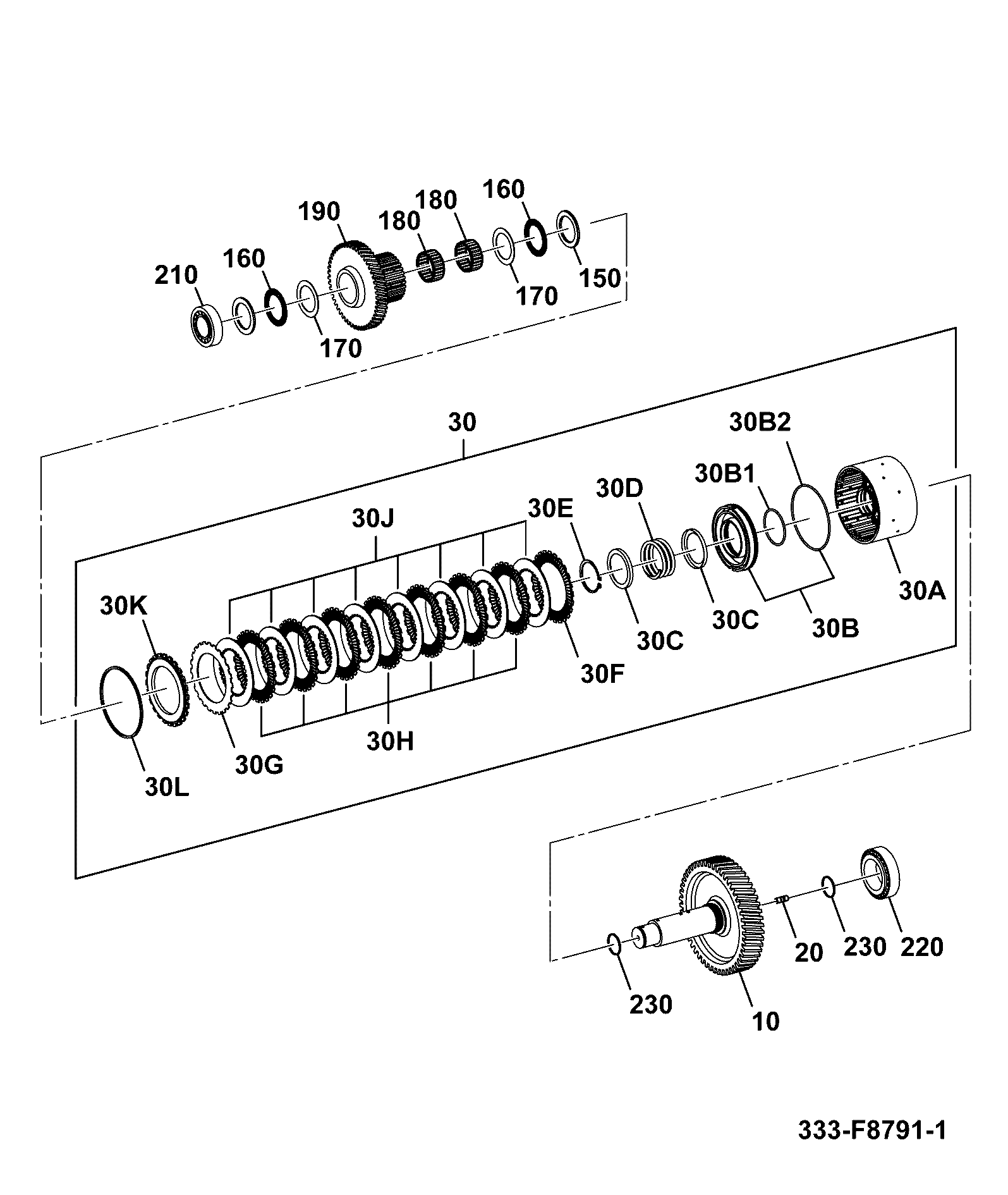

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | Shaft 333/F8963 | 1 | $2,572.67 | |||
| 20 | STUD 826/10625 | 1 | $2.89 | |||
| 30 | Coupling 332/D6924 | 1 | $3,701.02 | |||
| 30B | PISTON 04/600203 | 1 | $219.74 | |||
| 30B1 | ORING 04/600169 | 1 | $18.85 | |||
| 30B2 | O RING 04/600204 | 1 | $41.81 | |||
| 30C | WASHER 04/600239 | 1 | $17.60 | |||
| 30D | SPRING SPRING COMPRESSION 04/600240 | 1 | $179.26 | |||
| 30E | Ring 333/E6245 04/600905 | 1 | $22.86 | |||
| 30F | Ring 333/E6196 | 1 | $16.22 | |||
| 30G | DISC CLUTCH 04/600702 | 1 | $68.92 | |||
| 30H | Disc clutch 04/600701 | 1 | $77.89 | |||
| 30K | DISC CLUTCH 04/600207 | 1 | $33.99 | |||
| 30L | RING 04/600213 | 1 | $31.06 | |||
| 30L | RING 04/600214 | 1 | $32.42 | |||
| 30L | RING 04/600215 | 1 | $31.48 | |||
| 30L | RING 04/600216 | 1 | $28.83 | |||
| 30L | RING 04/600217 | 1 | $29.90 | |||
| 30L | RING 04/600218 | 1 | $29.90 | |||
| 30L | RING 04/600219 | 1 | $30.66 | |||
| 30L | RING 04/600220 | 1 | $29.90 | |||
| 30L | RING 04/600221 | 1 | $29.90 | |||
| 30L | Ring retaining 04/600209 | 1 | $31.66 | |||
| 30L | Ring retaining 04/600210 | 1 | $32.14 | |||
| 30L | Ring retaining 04/600211 | 1 | $32.33 | |||
| 30L | Ring retaining 04/600212 | 1 | $34.58 | |||
| 30L | Ring retaining 04/600222 | 1 | $33.30 | |||
| 30L | Ring retaining 04/600223 | 1 | $32.72 | |||
| 30L | SHIM SHIM 04/600226 | 1 | $269.35 | |||
| 40 | BEARING 04/600236 | 1 | $146.73 | |||
| 50 | BEARING 04/600552 | 1 | $110.43 | |||
| 60 | RING RETAINING 04/600238 | 1 | $33.70 | |||
| 70 | CIRCLIP 10/907409 | 1 | $4.48 | |||
| 80 | GEAR IDLER 49 TEETH 04/600355 | 1 | $1,861.92 | |||
| 200 | Bearing Bearing 333/E6242 | 1 | $582.00 | |||
| 220 | RING PISTON 04/800629 04/600186 | 1 | $24.57 | |||
Showing 1 to 36 of 36 parts
Related Assemblies
-
DIAG-F5-10-2-404766 F5-10-2 COUPLING K4
View Diagram -
DIAG-F5-12-2-404766 F5-12-2 COUPLING KR
View Diagram -
DIAG-F5-9-2-404766 F5-9-2 COUPLING K3
View Diagram
