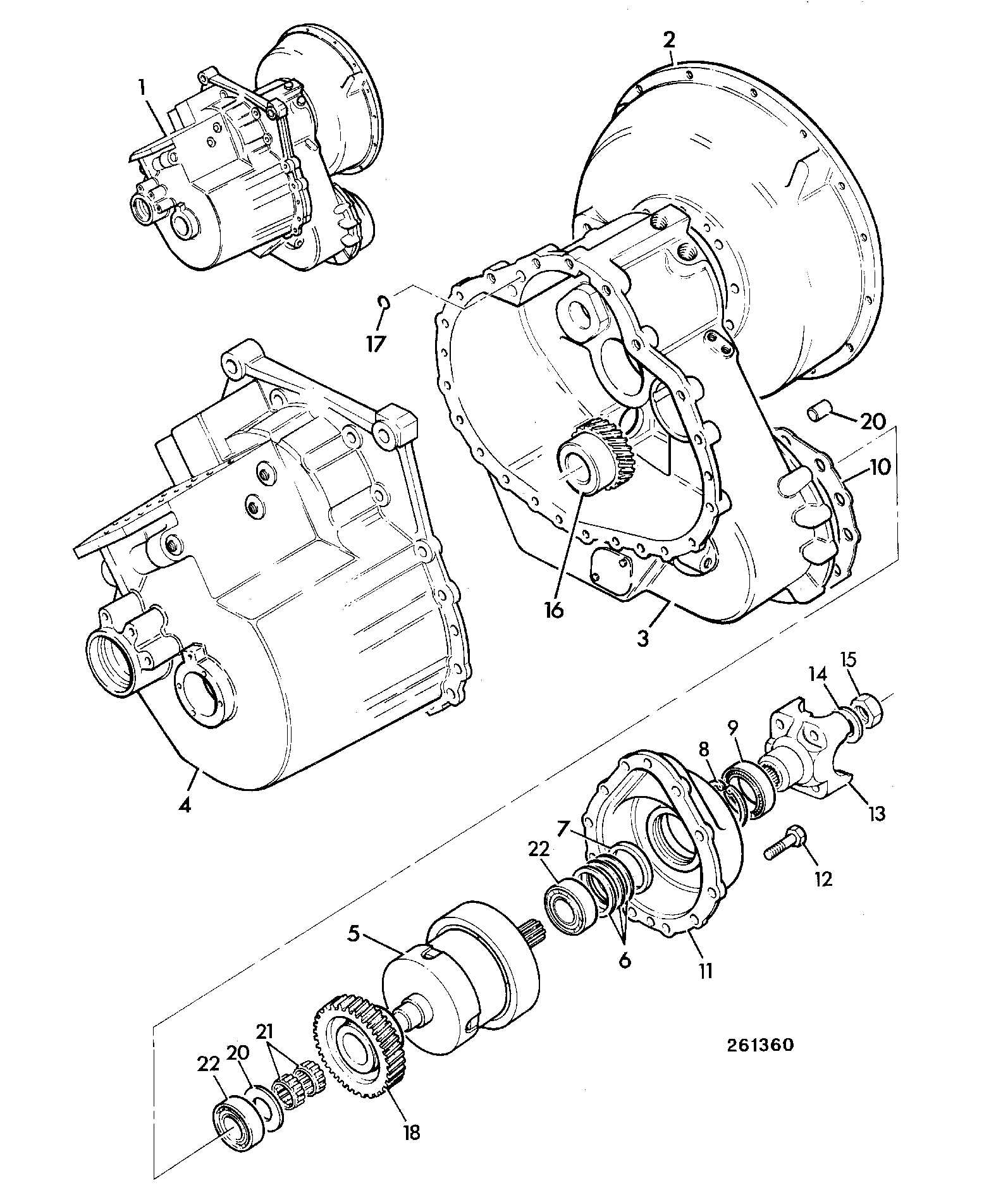

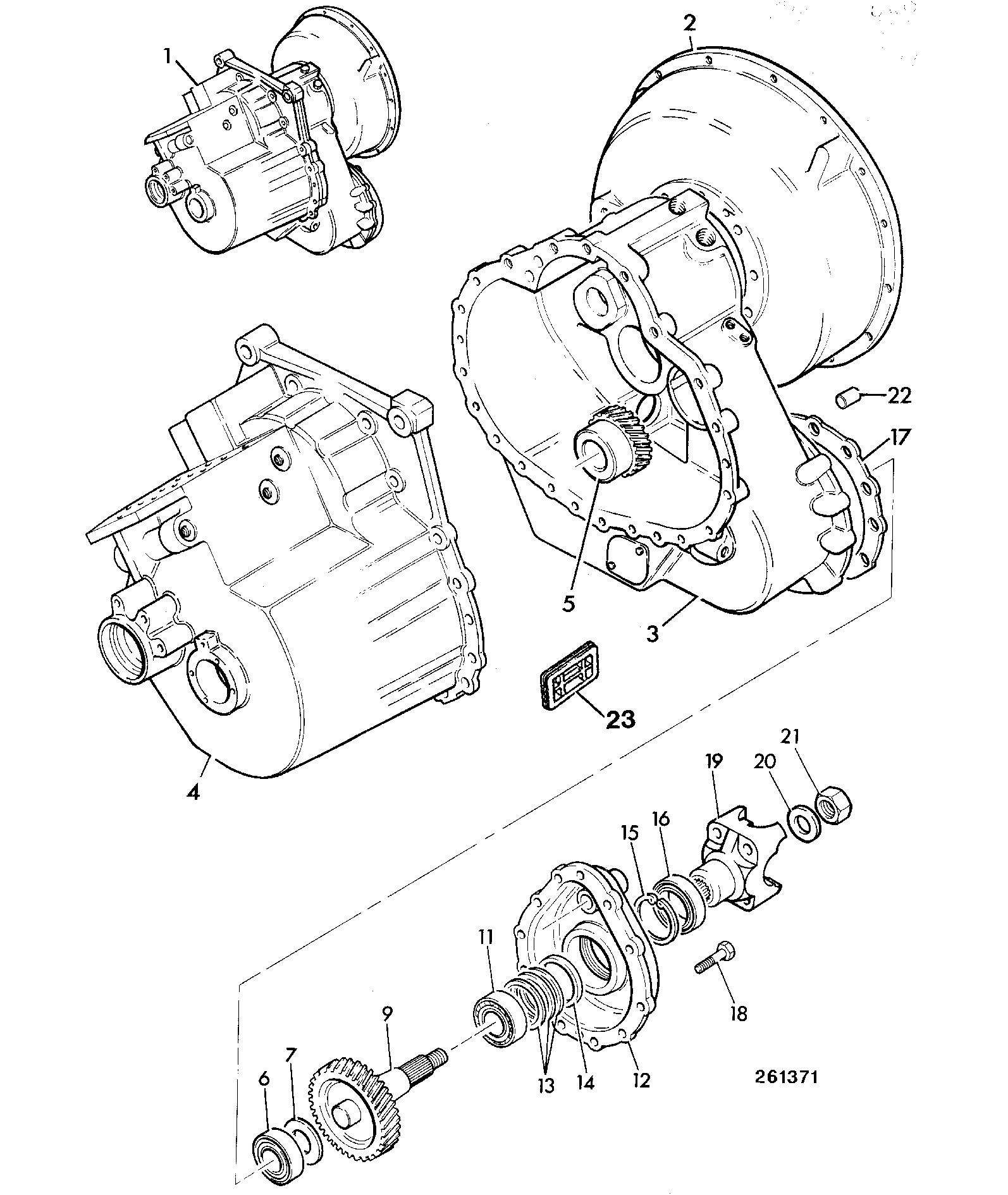

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | 2 WAY AMP JT TO DEUTSCH D 721/10763 | 1 | $39.86 | |||
| 1 | GA PS750 G'BOX - SERVICE XLR 460/91100 998/M3640 | 1 | $21,243.35 | |||
| 1 | GA PS750 MY09 XLR PERM 449/M2729 | 1 | $26,832.94 | |||
| 2 | HOUSING - FLYWHEEL 449/02102 | 1 | $1,877.55 | |||
| 3 | 'O' RING 828/10222 | 1 | $0.98 | |||
| 3 | FRONT CASE M/C 4WD 459/30262 | 1 | $5,274.40 | |||
| 5 | GEAR-INPUT 4WD-21T 445/38601 | 1 | $857.58 | |||
| 7 | OUTPUT THRUST WASHER 445/03209 | 1 | $92.07 | |||
| 9 | OUTPUT GEAR & *SHAFT 44T 459/50691 | 1 | $782.50 | |||
| 11 | BEARING TAPER ROLLER 907/52800 | 1 | $103.83 | |||
| 12 | COVER - 4WD OUTPUT-449/10014P 459/30482 | 1 | $437.59 | |||
| 13 | SHIM KIT 921/51700 445/04700 | 1 | $6.29 | |||
| 14 | SPACER 4WD 445/04012 | 1 | $21.92 | |||
| 15 | INT CIRCLIP 65mm [1300 06 2203/1071 | 1 | $15.38 | |||
| 16 | SEAL - TRIPLE LIP 904/20172 | 1 | $37.32 | |||
| 17 | GASKET - 4WD 813/50054 | 1 | $7.23 | |||
| 18 | SETSCREW 826/01417 | 1 | $12.98 | |||
| 19 | COUPLING YOKE 445/10703 | 1 | $381.90 | |||
| 20 | M 24 HARDENED WASHER 823/00328 | 1 | $12.61 | |||
| 21 | STAKE NUT M24 826/00817 | 1 | $3.32 | |||
| 22 | DOWEL 445/14001 | 1 | $6.66 | |||
| 23 | RUBBER GROMMET.GEARBOX. 445/13703 | 1 | $91.89 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-
DIAG-F5-1-11-400854 F5-1-11 TRANSMISSION BEVEL & PS740 G/BOX PERM 4WD
View Diagram -
DIAG-F5-1-13-400854 F5-1-13 TRANSMISSION BEVEL & PS740 G/BOX 2/4WD CLUTCH
View Diagram -
DIAG-F5-1-15-400854 F5-1-15 TRANSMISSION 4 SPEED,4 W/D,MK11
View Diagram
