F5-1-11 POWER TAKE-OFF Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	Flange 04/803012	1	AVAILABLE TO ORDER	$3,705.15	Quantity
4	CIRCLIP 04/800152	1	AVAILABLE TO ORDER	$1.43	Quantity
6	STUD 04/800236	1	AVAILABLE TO ORDER	$10.54	Quantity
7	NUT 04/800237	1	AVAILABLE TO ORDER	$4.17	Quantity
8	GASKET 04/800406 04/800167	1	AVAILABLE TO ORDER	$58.01	Quantity

Showing 1 to 5 of 5 parts

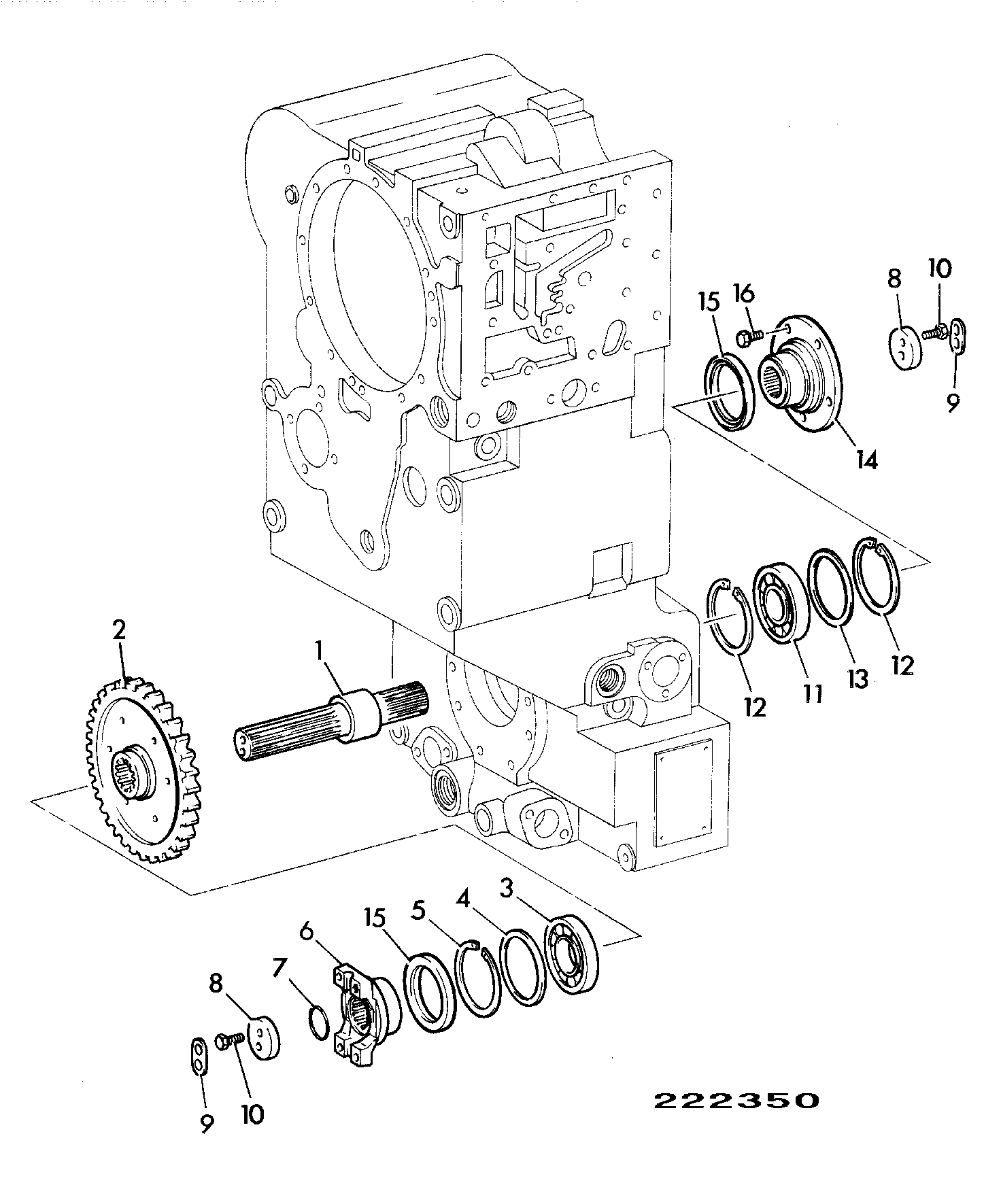

DIAG-F5-1-10-404550 F5-1-10 OUTPUT GROUP
View Diagram

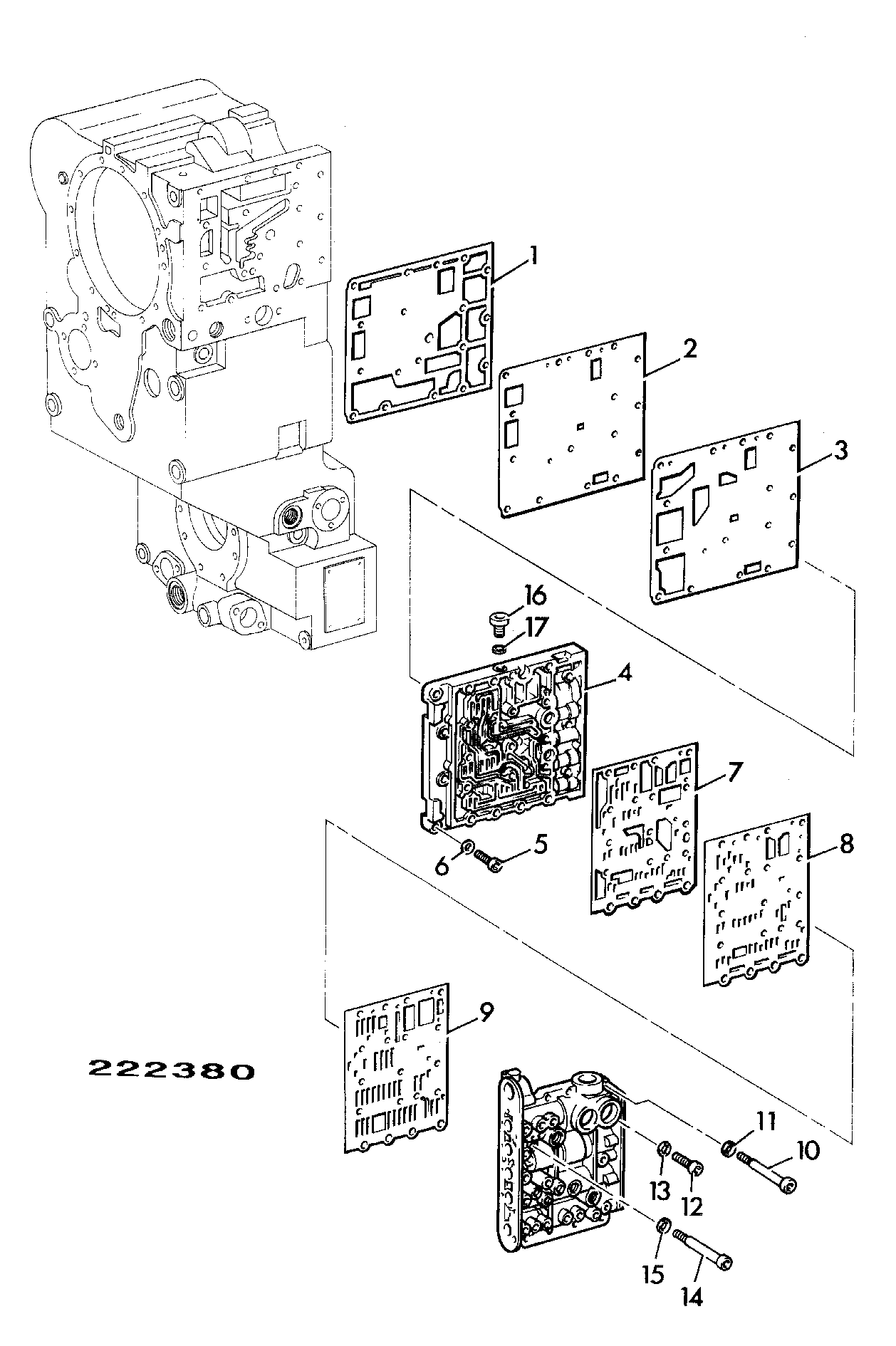

DIAG-F5-1-12-404550 F5-1-12 GEARSHIFT SYSTEM
View Diagram
DIAG-F5-1-9-404550 F5-1-9 COUPLING GROUP
View Diagram

Previous Assembly DIAG-F5-1-10-404550 F5-1-10 OUTPUT GROUP Next Assembly DIAG-F5-1-12-404550 F5-1-12 GEARSHIFT SYSTEM
