| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| GA BEVEL TRANSMISSION-P42 455/M0101 | 1 | $38,381.92 | ||||
| PIPE 4WD PS750 830/11256 | 1 | $77.91 | ||||
| RUBBER GROMMET.GEARBOX. 445/13703 | 1 | $91.89 | ||||
| 1 | GA PS750 MY09 XLR HYD 449/M2751 | 1 | $19,124.45 | |||
| 2 | HOUSING - FLYWHEEL 449/02102 | 1 | $1,877.55 | |||
| 3 | SERVICE KIT-PS750 4WD FRO 459/30470 998/M2006 | 1 | $2,920.63 | |||
| 4 | G.A. REAR CASE (SPEEDO) 459/10265 | 1 | $2,572.49 | |||
| 5 | G.A. CLUTCH - 4WD 459/M6900 459/M4796 | 1 | $1,051.34 | |||
| 5 | G.A. CLUTCH - 4WD 459/M6921 | 1 | $2,435.72 | |||
| 5 | SETSCREW 826/01553 | 1 | $39.59 | |||
| 6 | SHIM KIT 40/303518 | 1 | $6.58 | |||
| 7 | SPACER 4WD 445/04012 | 1 | $21.92 | |||
| 8 | INT CIRCLIP 65mm [1300 06 2203/1071 | 1 | $15.38 | |||
| 9 | SEAL - TRIPLE LIP 904/20172 | 1 | $37.32 | |||
| 10 | GASKET - 4WD 813/50054 | 1 | $7.23 | |||
| 11 | COVER - 4WD OUTPUT-449/10014P 459/30482 | 1 | $437.59 | |||
| 12 | SETSCREW 826/01417 | 1 | $12.98 | |||
| 13 | COUPLING YOKE 445/10703 | 1 | $381.90 | |||
| 14 | M 24 HARDENED WASHER 823/00328 | 1 | $12.61 | |||
| 15 | STAKE NUT M24 826/00817 | 1 | $3.32 | |||
| 16 | GEAR-INPUT 4WD-21T 445/38601 | 1 | $857.58 | |||
| 17 | 'O' RING 828/10222 | 1 | $0.98 | |||
| 18 | GEAR-OUTPUT-4WD-44T 445/38602 | 1 | $2,672.87 | |||
| 20 | THRUST WASHER 445/05003 823/10582 | 1 | $98.49 | |||
| 21 | ROLLER BEARING HK 4020A 917/02600 | 1 | $36.48 | |||
| 22 | BEARING TAPER ROLLER 907/52800 | 1 | $103.83 | |||
Showing 1 to 26 of 26 parts
Related Assemblies
-

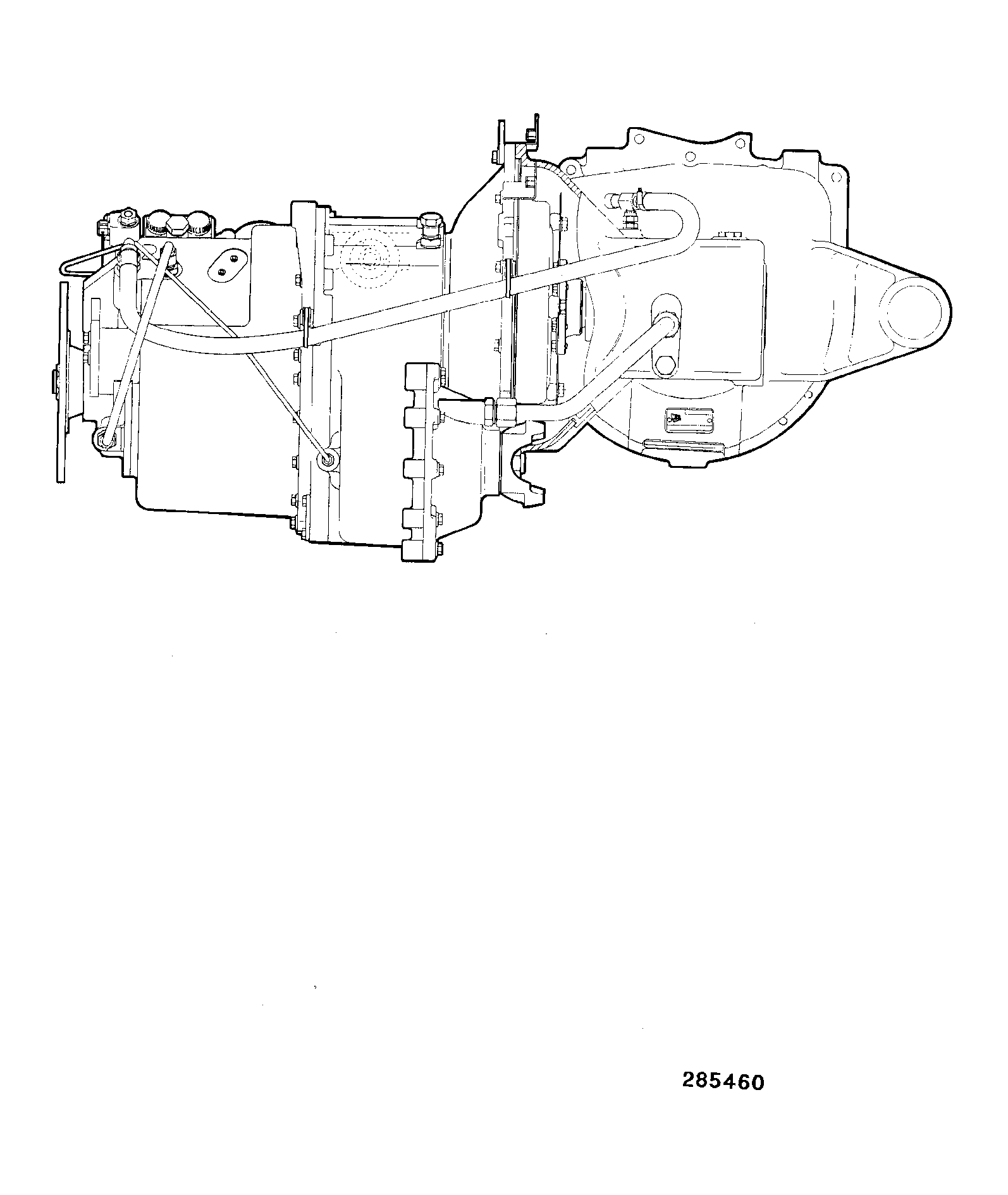

DIAG-F5-0-3-402580-14334001 F5-0-3 TRANSMISSION/GEARBOX IDENTIFICATION
View Diagram -
DIAG-F5-2-1-402580-14334021 F5-2-1 TRANSMISSION,PERM 4WD,EXT COMPONENTS 449/M0112
View Diagram -

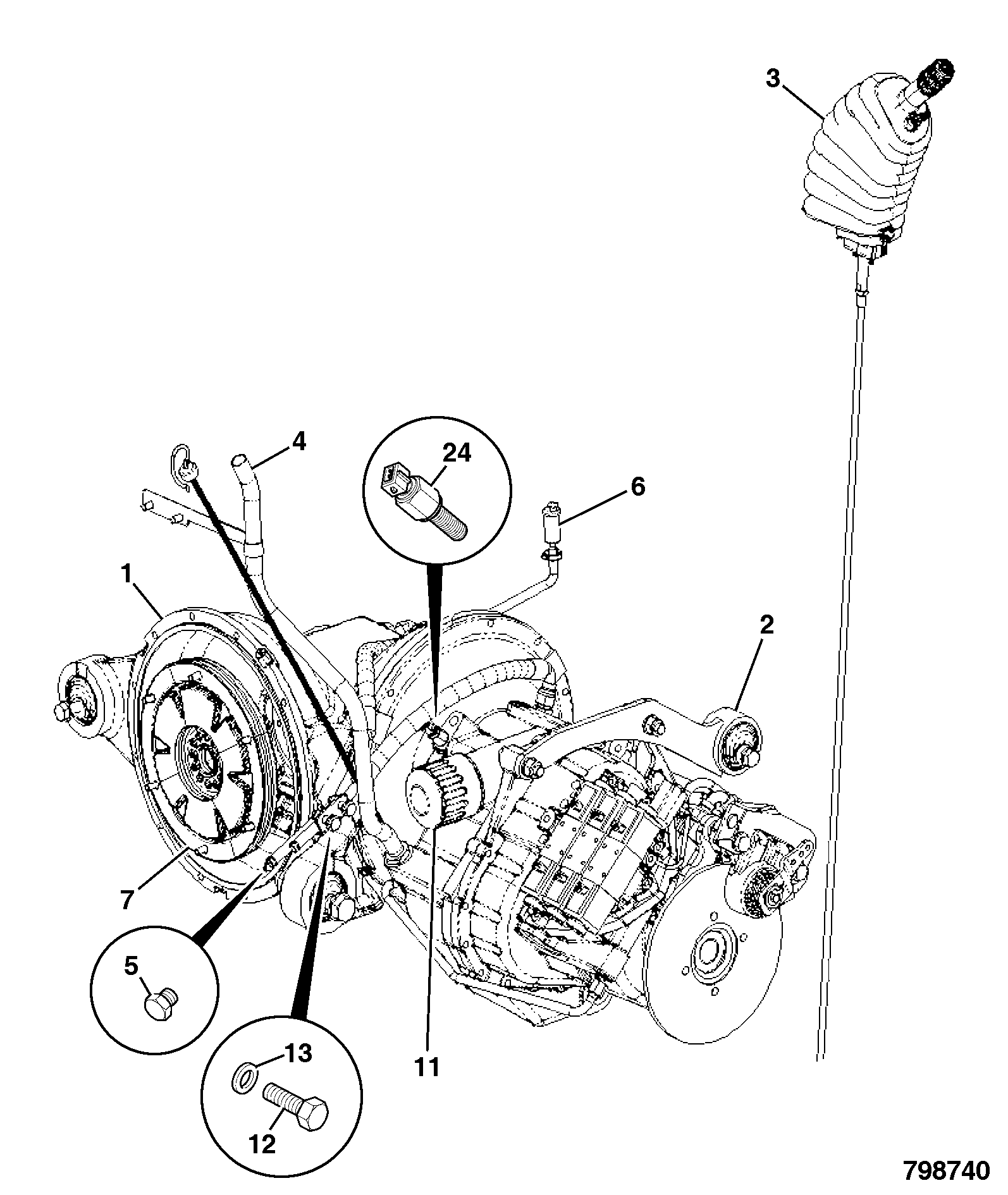

DIAG-F5-0-2-402580-14333998 F5-0-2 TRANSMISSION/GEARBOX LAYOUT PS750
View Diagram
