Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| KIT 332/D0974 | 1 | $628.91 | ||||
| 1 | LINDE MOTOR 105CC THROUGH DRIVE 332/F2191 | 1 | $12,648.85 | |||
| 2 | WA TOP BRACKET 335/09705 | 1 | $188.78 | |||
| 3 | BOTTOM BRACKET 331/52888 | 1 | $201.26 | |||
| 4 | BOLT.M16x55 LG. (P715/P710) 1315/3713D | 1 | $7.72 | |||
| 5 | HEX-SCREW M16 L-_30mm LG 1315/0708D | 1 | $0.00 | |||
| 6 | WASHER M16 PLAIN 1420/0011D | 1 | $0.91 | |||
| 7 | BRAKE CALIPER 60MM DIA 478/32100 15/920366 | 1 | $616.66 | |||
| 8 | CALIPER - HAYES BRAKE M90 15/M04038 | 1 | $1,237.45 | |||
| 9 | SET SCREW M12x45 1315/0511D | 1 | $3.38 | |||
| 10 | BOLT M16 L-100mm DACROMET PLATED 1315/3720D | 1 | $0.00 | |||
| 11 | BRACKET-BRAKE MOUNTING 331/26622 | 1 | $35.95 | |||
| 12 | HEX-SCREW M16 L-_45mm LG 1315/0711D | 1 | $7.72 | |||
| 13 | ELBOW ADAPTOR M/M 816/90478 | 1 | $18.16 | |||
| 14 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 15 | ADAPTOR G3/4A X 7/8 SAE 1620/2058 | 1 | $5.52 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-

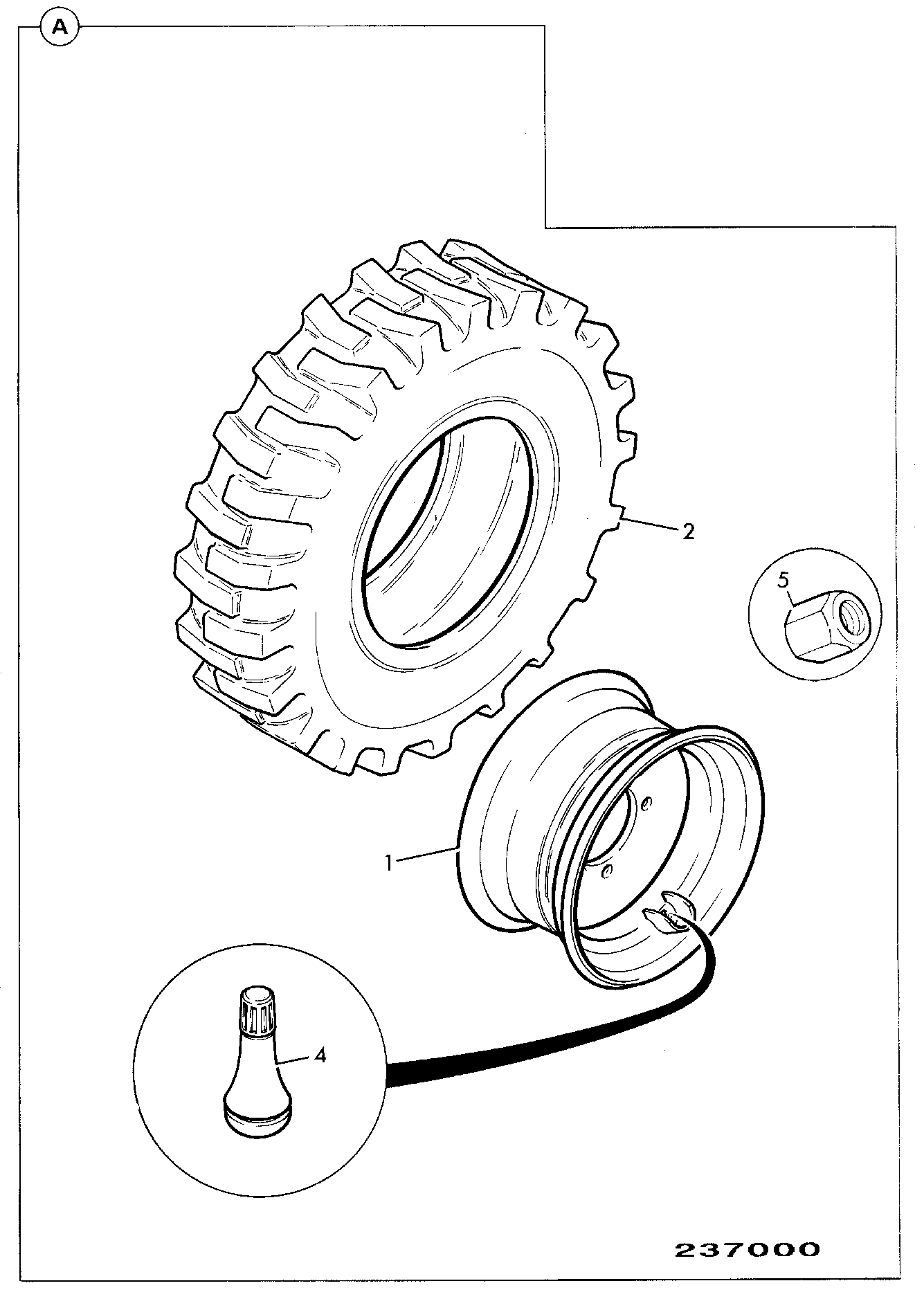

DIAG-F3-2-1-400524 F3-2-1 WHEELS & TYRES
View Diagram -
DIAG-F5-2-1-400524 F5-2-1 MOTOR,DRIVE & DROPBOX COMBINED SERVICABLE ITEMS
View Diagram -

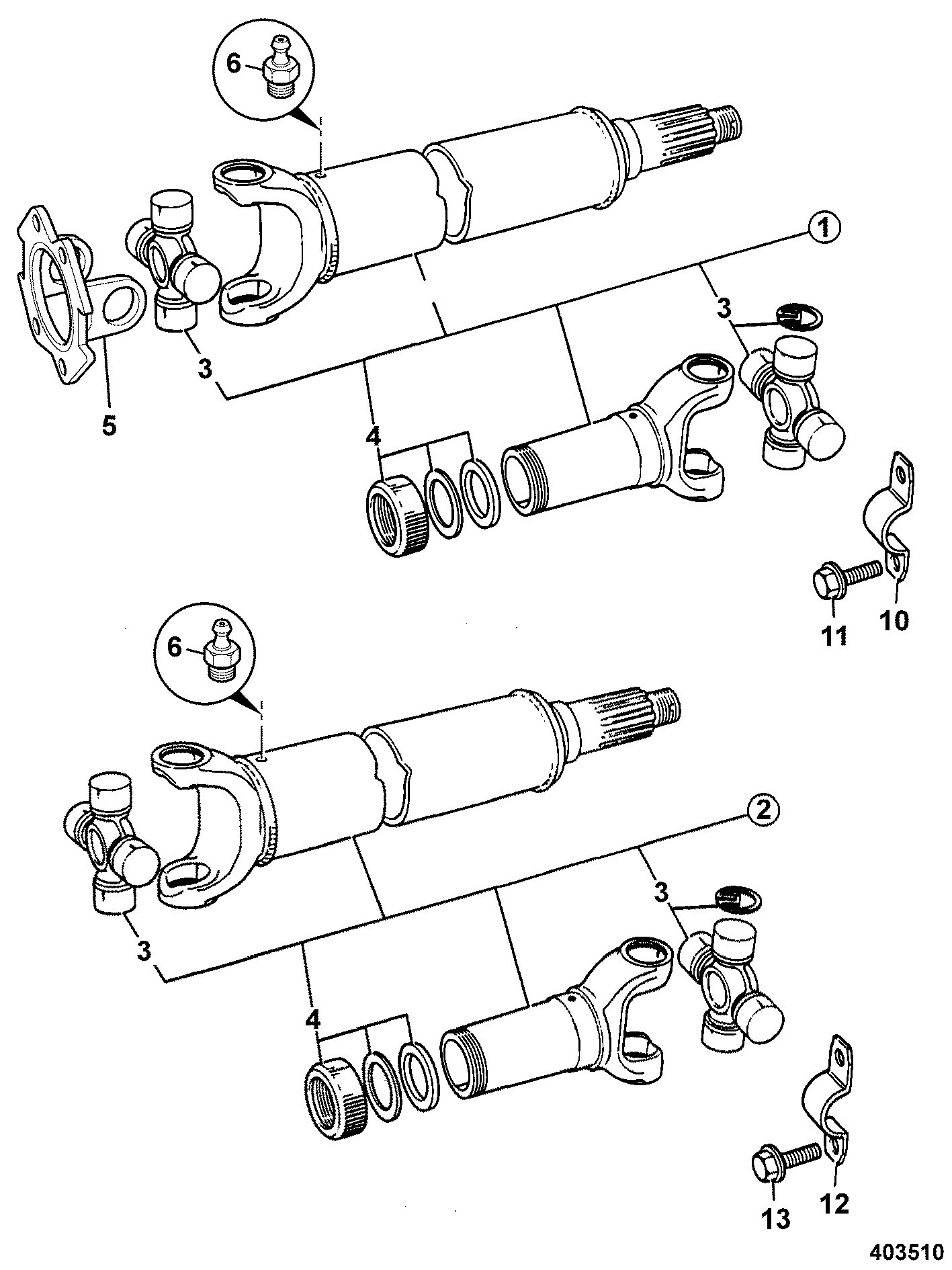

DIAG-F3-1-1-400524 F3-1-1 PROPSHAFTS
View Diagram
