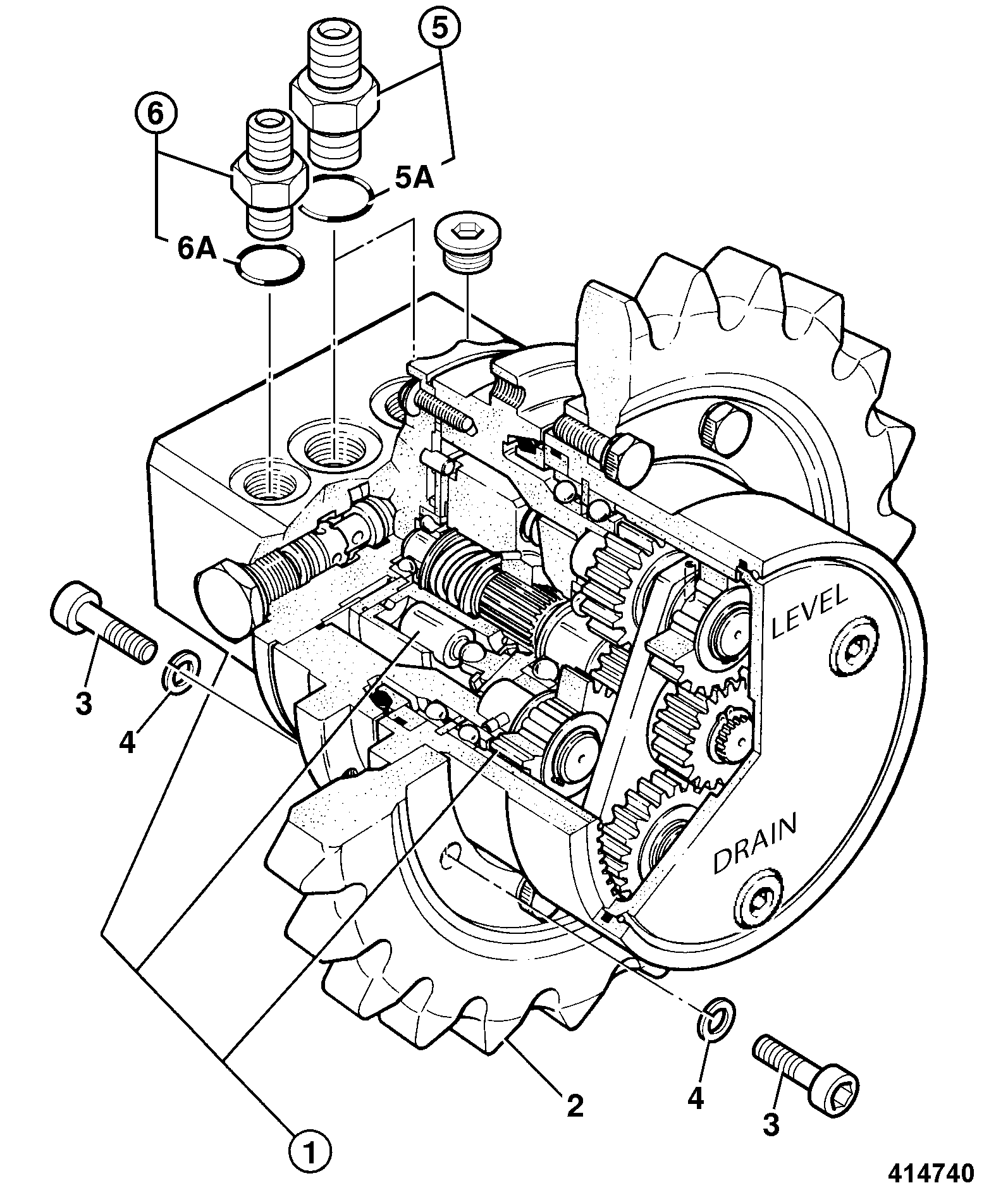

F4-1-2 MOTOR, SLEW Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	ADAPTOR 7/8SAE x G1/4A 816/90365	1	AVAILABLE TO ORDER	$43.32	Quantity
	ADAPTOR G1/4A-7/16UNF(M) 1620/2050	1	AVAILABLE TO ORDER	$2.60	Quantity
	ADAPTOR PLATE 331/38084	1	AVAILABLE TO ORDER	$63.47	Quantity
	KIT-SEAL HYD MOTOR 20/952121	1	AVAILABLE TO ORDER	$143.24	Quantity
	MOTOR -SLEW * 20/925452	1	AVAILABLE TO ORDER	$2,392.07	Quantity

Showing 1 to 5 of 5 parts
