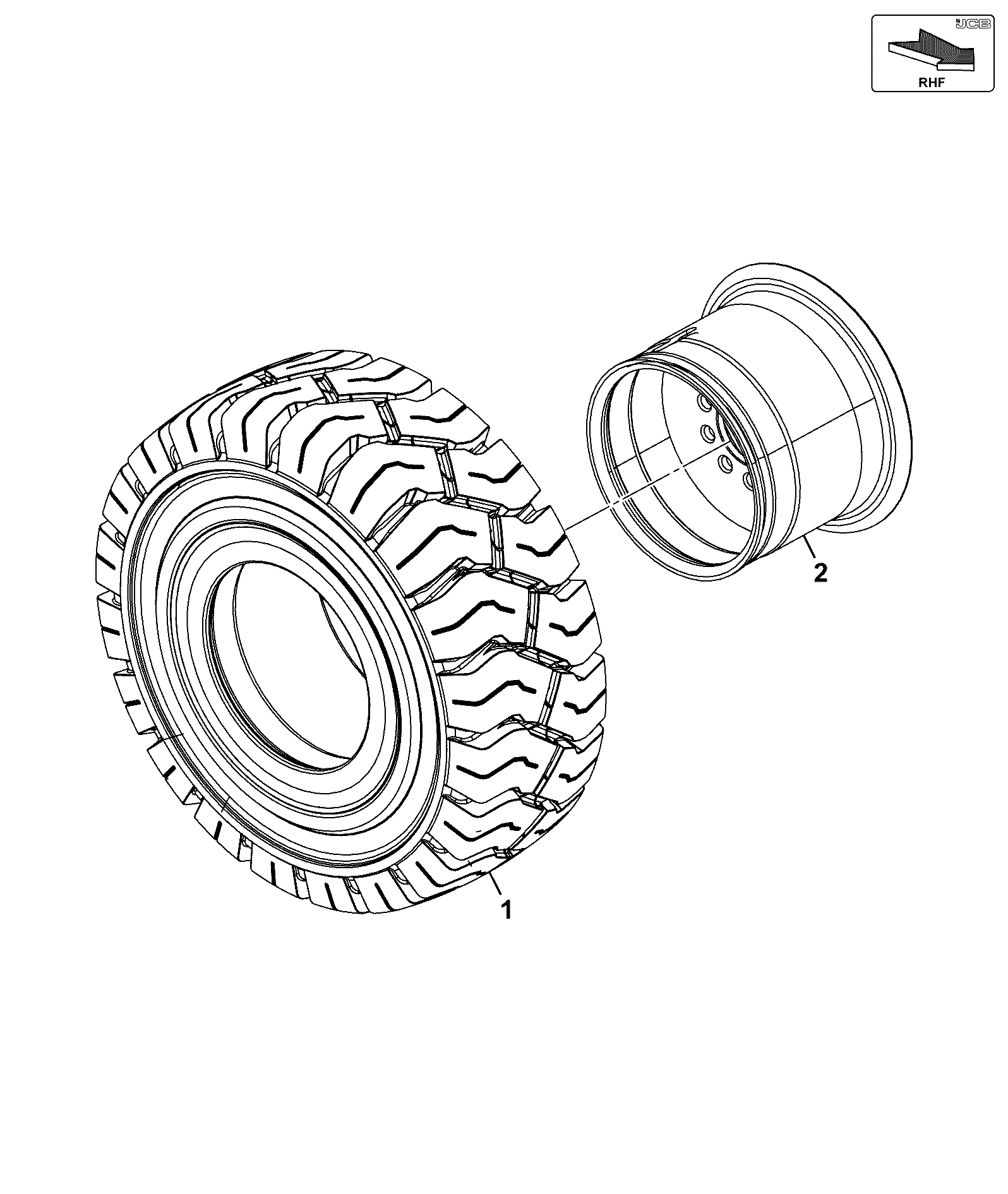

F390-5-5 OTHER WHEEL AND TYRE PARTS ASSEMBLY WHEEL AND TYRE REAR Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	R.WHL&TYR ASSY. MAGN.QUIC 401/F9452	1	AVAILABLE TO ORDER	$1,518.73	Quantity
2	WHEEL RIM 8G-12 4 5 stud 41/940142	1	AVAILABLE TO ORDER	$451.11	Quantity

Showing 1 to 2 of 2 parts
