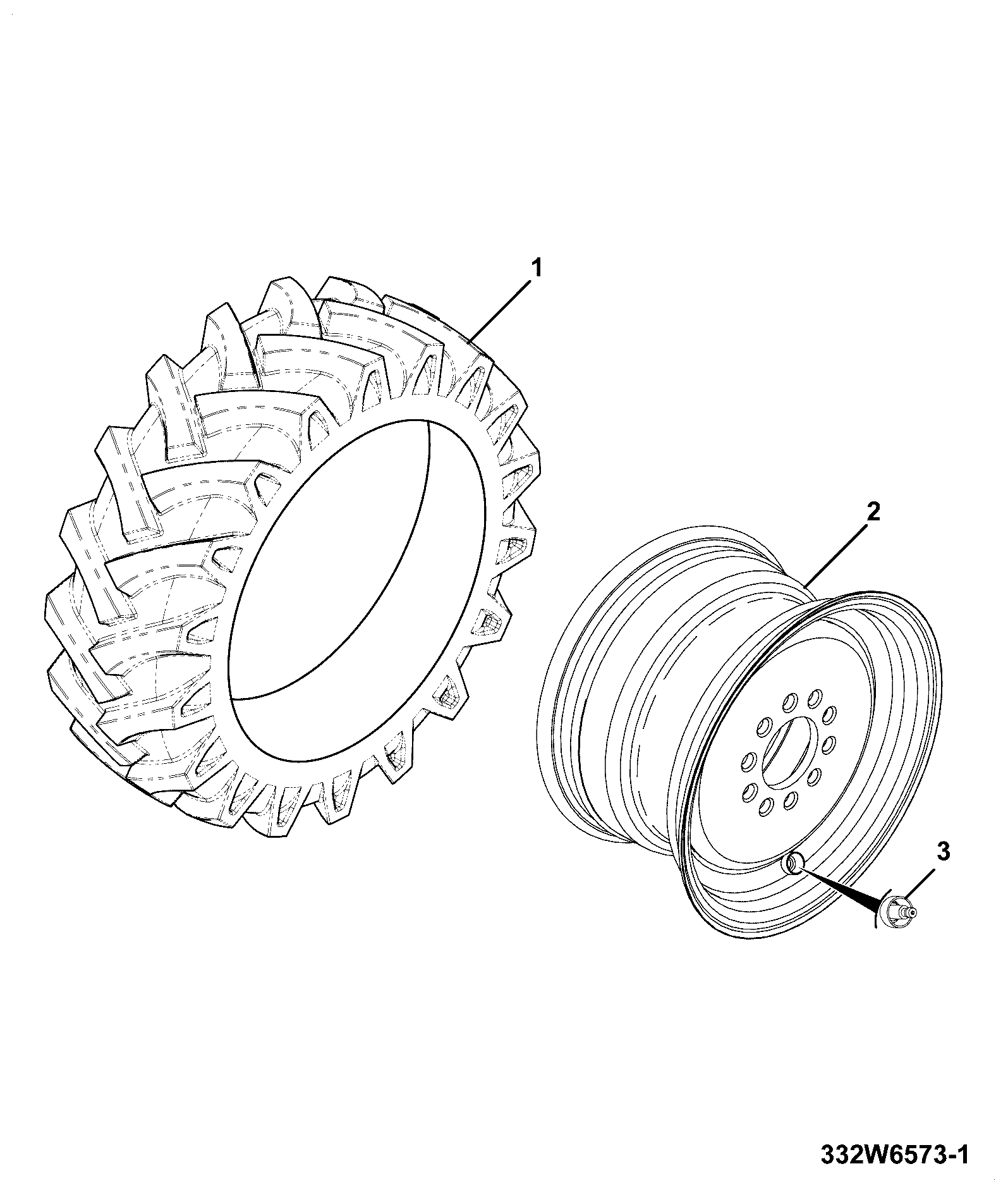

F390-33-1 WHEEL & TYRE ASSEMBLY STANDARD – LEFT Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Part Number	Qty.	Avl.	Price (USD)	Action
ABI - WHEEL AND TYRE - ST 332/U7306 334/U6442	1	AVAILABLE TO ORDER	$1,199.23	Quantity
TYRE - 10.0/75-15.3 BKT A 334/U6374	1	AVAILABLE TO ORDER	$656.24	Quantity
TYRE VALVE 151/05201	1	AVAILABLE TO ORDER	$24.00	Quantity
WHEEL RIM P282 9X15 332/U7318	1	AVAILABLE TO ORDER	$356.27	Quantity

Showing 1 to 4 of 4 parts
