F330-76-1 WHEELS AND TYRES FRONT AND REAR GSR ABI Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	ABI W&T ALLIANCE 690 GSR 17.5R25 400/G7168	1	AVAILABLE TO ORDER	$3,417.19	Quantity
1	WHEEL 14.00X25/1.3 OFF+30 400/G6348	1	AVAILABLE TO ORDER	$1,052.14	Quantity
2	TYRE JCB EARTHMOVER 17.5R25 42/925328	1	AVAILABLE TO ORDER	$3,802.75	Quantity
3	TYRE VALVE 265/00500	1	AVAILABLE TO ORDER	$25.77	Quantity

Showing 1 to 4 of 4 parts

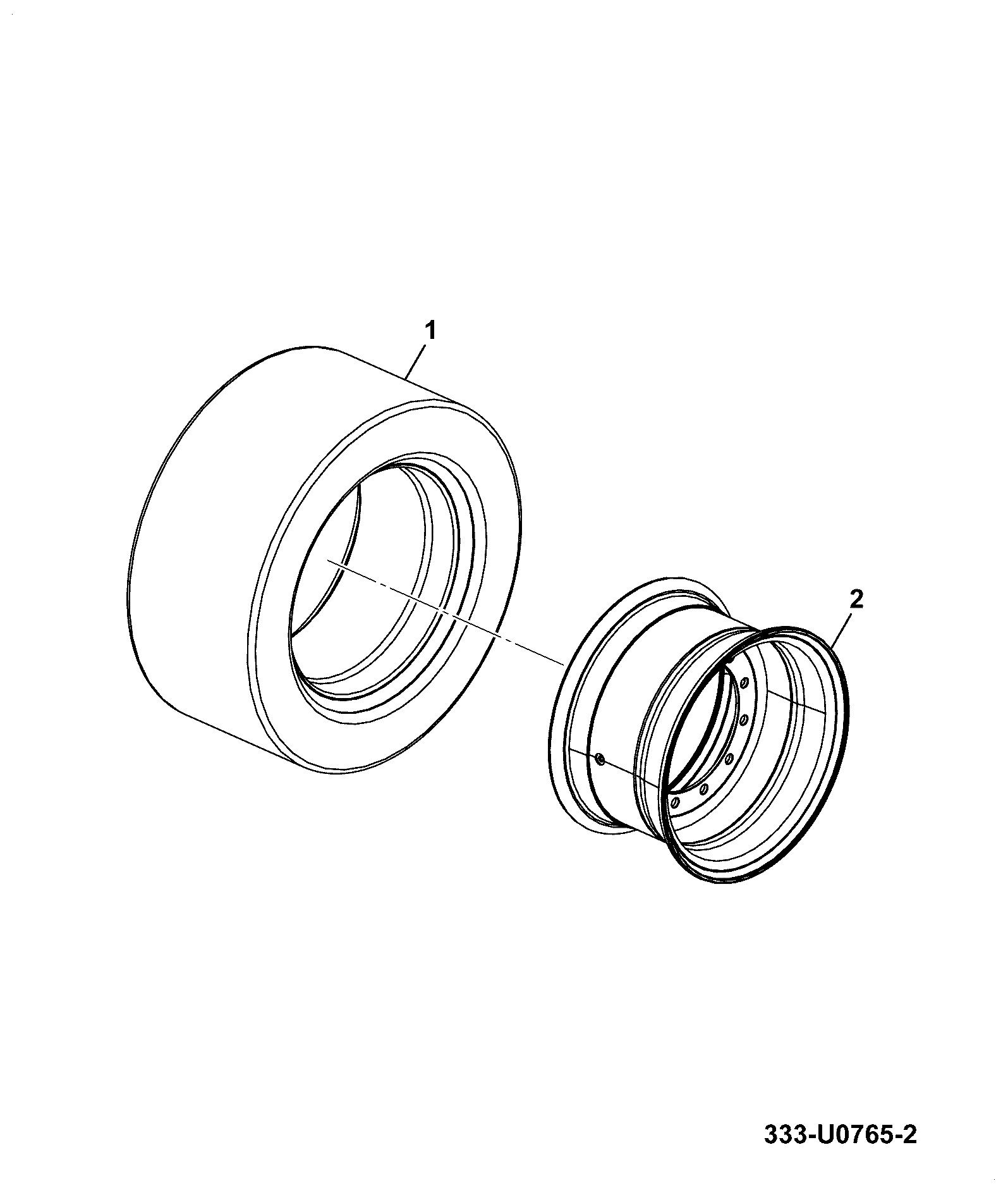

DIAG-F330-100-1-404621 F330-100-1 WHEELS AND TYRES FRONT AND REAR SOLID REVOLUTION SE, 17.5 R25
View Diagram
DIAG-F600-100-1-404621 F600-100-1 POWER SHIFT AUTO SHIFT CVT INSTALLATION ASSEMBLIES TRANSMISSION AND PROPSHAFT ASSEMBLY, 417
View Diagram

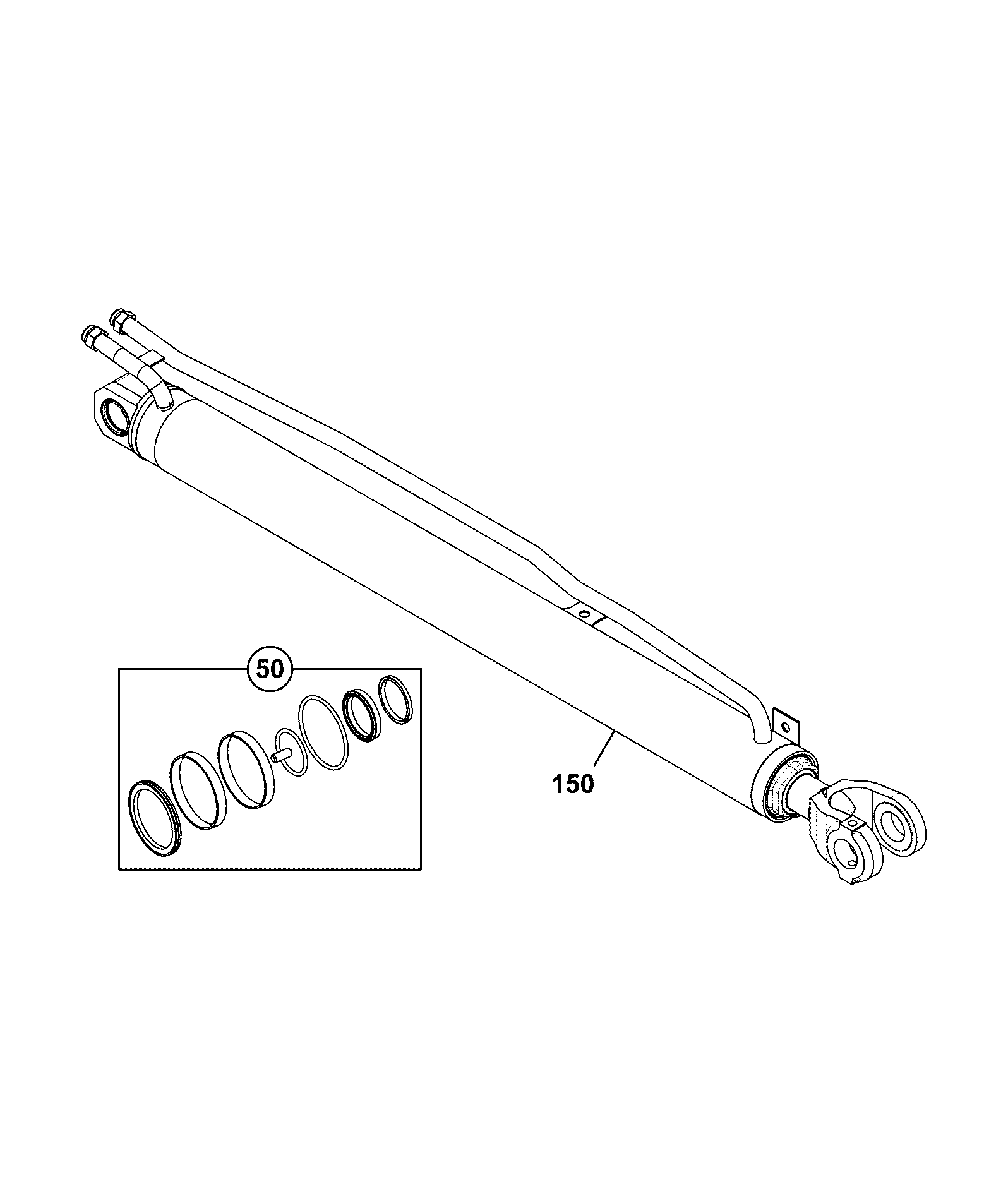

DIAG-E415-5-5-404621 E415-5-5 RAMS SHOVEL (CLAM/SIDE TIP) TILT
