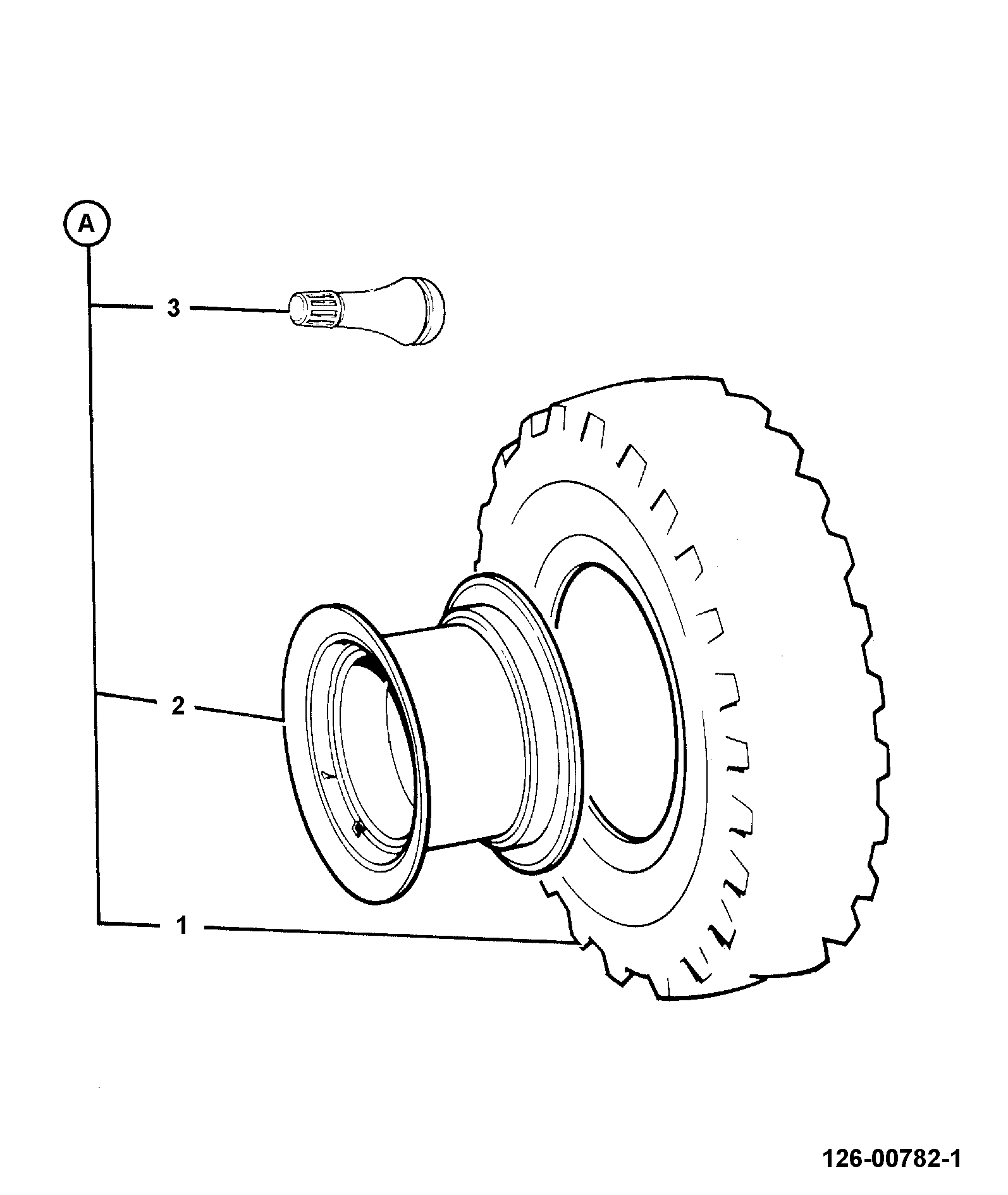

F330-50-1 WHEELS AND TYRES FRONT AND REAR WHEEL 440/80xR28 XMCL Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	TYRE 440/80-R28 MICHELIN 42/103000 42/925375	1	AVAILABLE TO ORDER	$4,996.75	Quantity
2	RIM TW15Lx28 (+36) 334/D5741	1	AVAILABLE TO ORDER	$1,070.54	Quantity
3	TYRE VALVE 151/05201	1	AVAILABLE TO ORDER	$24.00	Quantity
A	WHEEL 440/80xR28 XMCL (+3 128/D6188	1	AVAILABLE TO ORDER	$5,769.16	Quantity

Showing 1 to 4 of 4 parts

DIAG-F330-35-1-394906 F330-35-1 WHEELS AND TYRES FRONT AND REAR 24" POWCL 440/80 +45
View Diagram
DIAG-F330-5-1-394906 F330-5-1 WHEELS AND TYRES FRONT AND REAR ASSEMBLY AWS, 24", 400/80 + 85
View Diagram

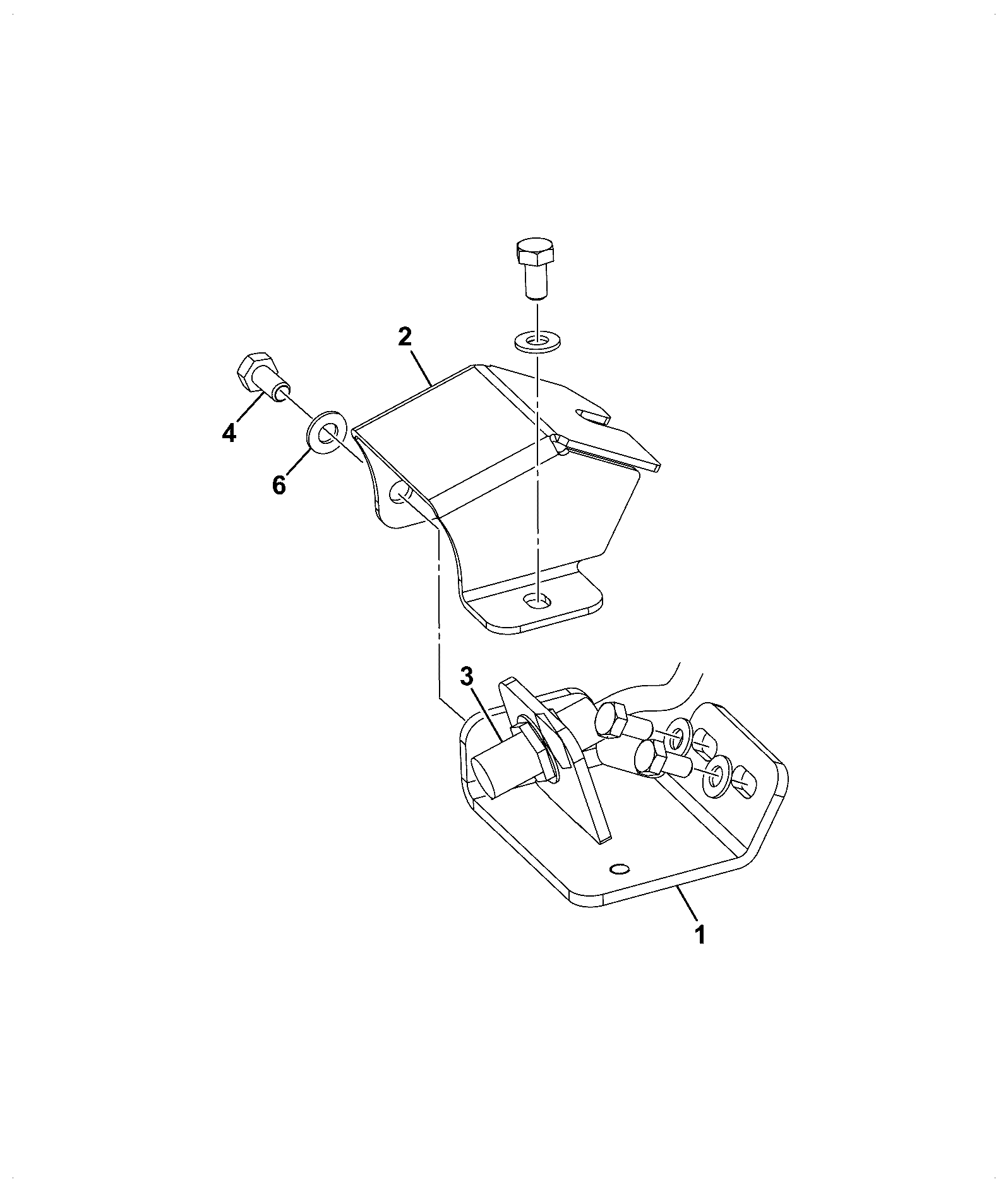

DIAG-F290-10-1-394906 F290-10-1 OTHER REAR AXLE ITEMS PROXIMITY SWITCH
