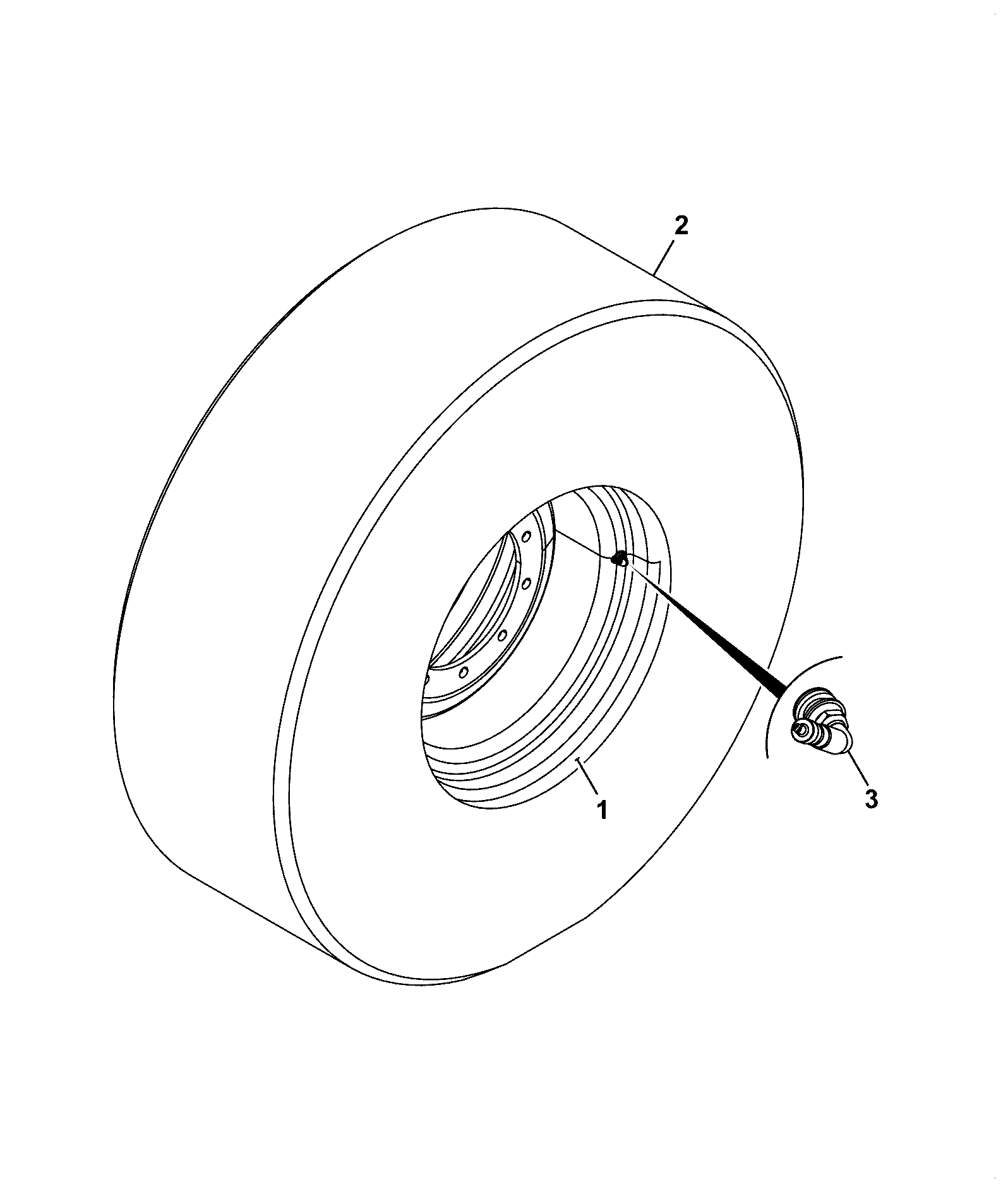

F330-40-1 WHEELS AND TYRES FRONT AND REAR GOODYEAR 15.5R25 SGL D/L Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	WHEEL & TYRE ASSY Goodyear 269/00124	1	AVAILABLE TO ORDER	$3,664.44	Quantity
1	TYRE 15.5 X 25 12PLY 42/405700	1	AVAILABLE TO ORDER	$2,558.46	Quantity
2	WHEEL 41/917600	1	AVAILABLE TO ORDER	$829.12	Quantity
3	TYRE VALVE 151/05201	1	AVAILABLE TO ORDER	$24.00	Quantity

Showing 1 to 4 of 4 parts

DIAG-F330-5-1-404488 F330-5-1 WHEELS AND TYRES FRONT AND REAR ABI LDR GRIP
View Diagram

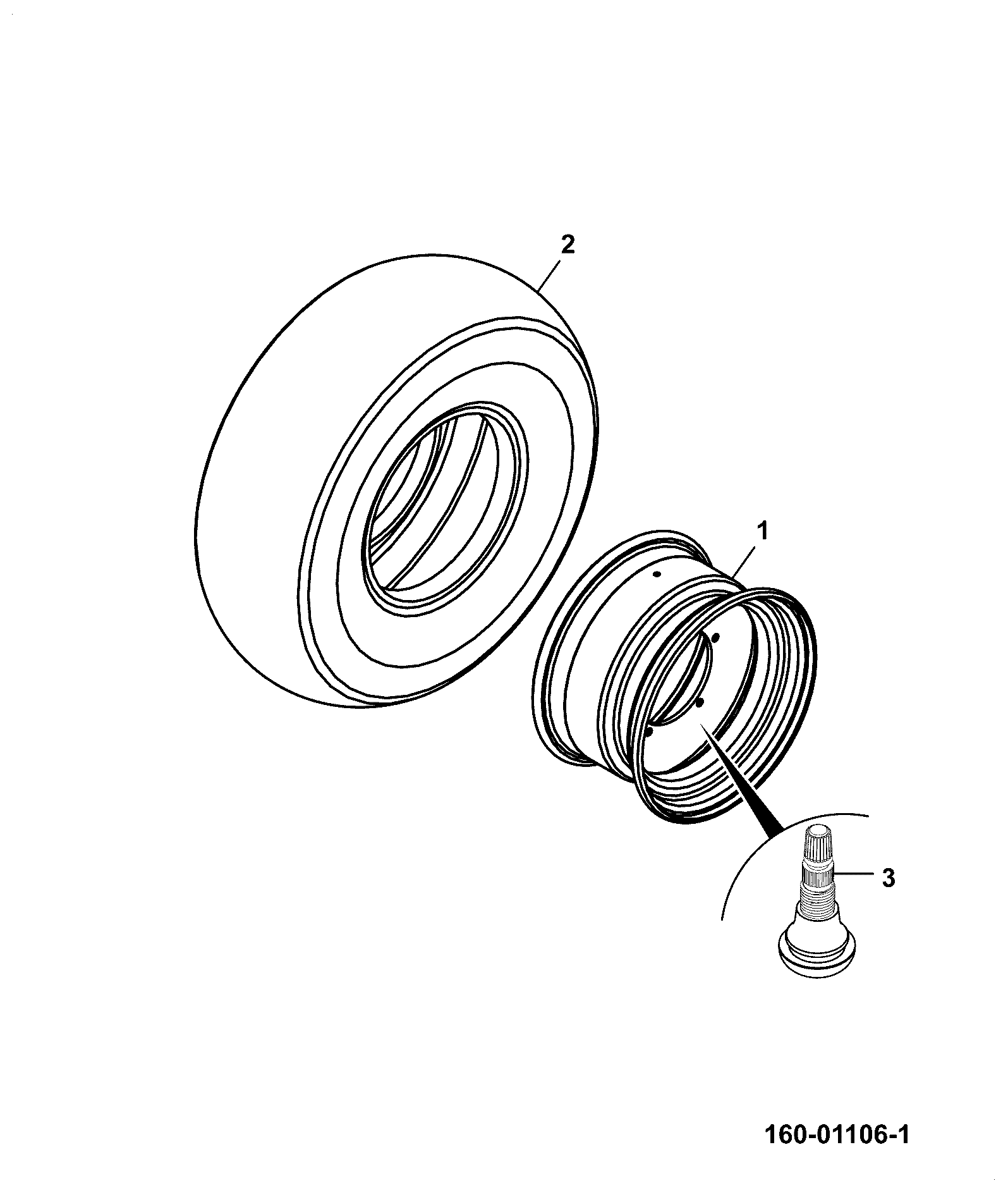

DIAG-F330-50-1-404488 F330-50-1 WHEELS AND TYRES FRONT AND REAR ASSEMBLY
View Diagram

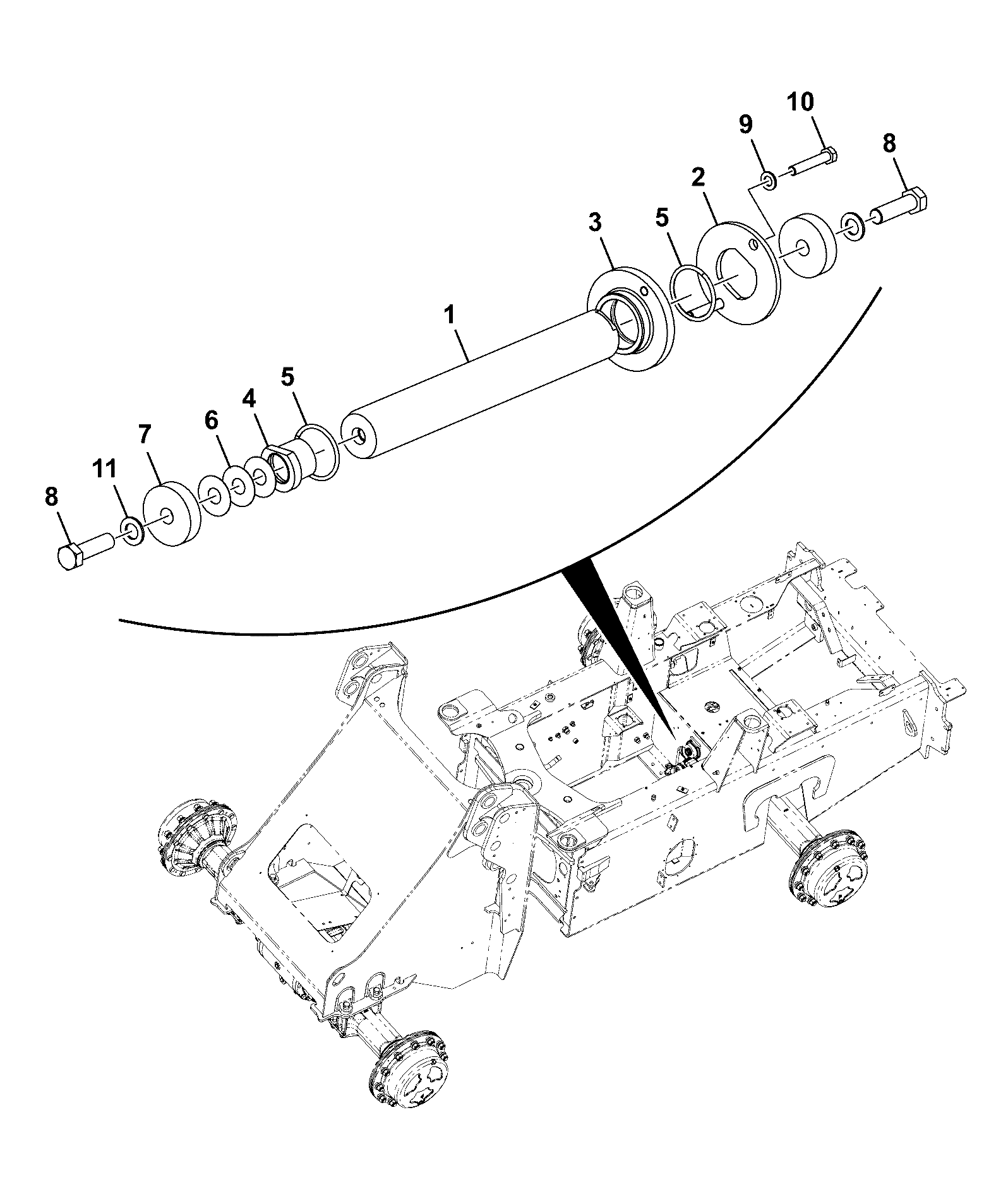

DIAG-F290-1-1-404488 F290-1-1 OTHER REAR AXLE ITEMS ASSEMBLY PIVOT
