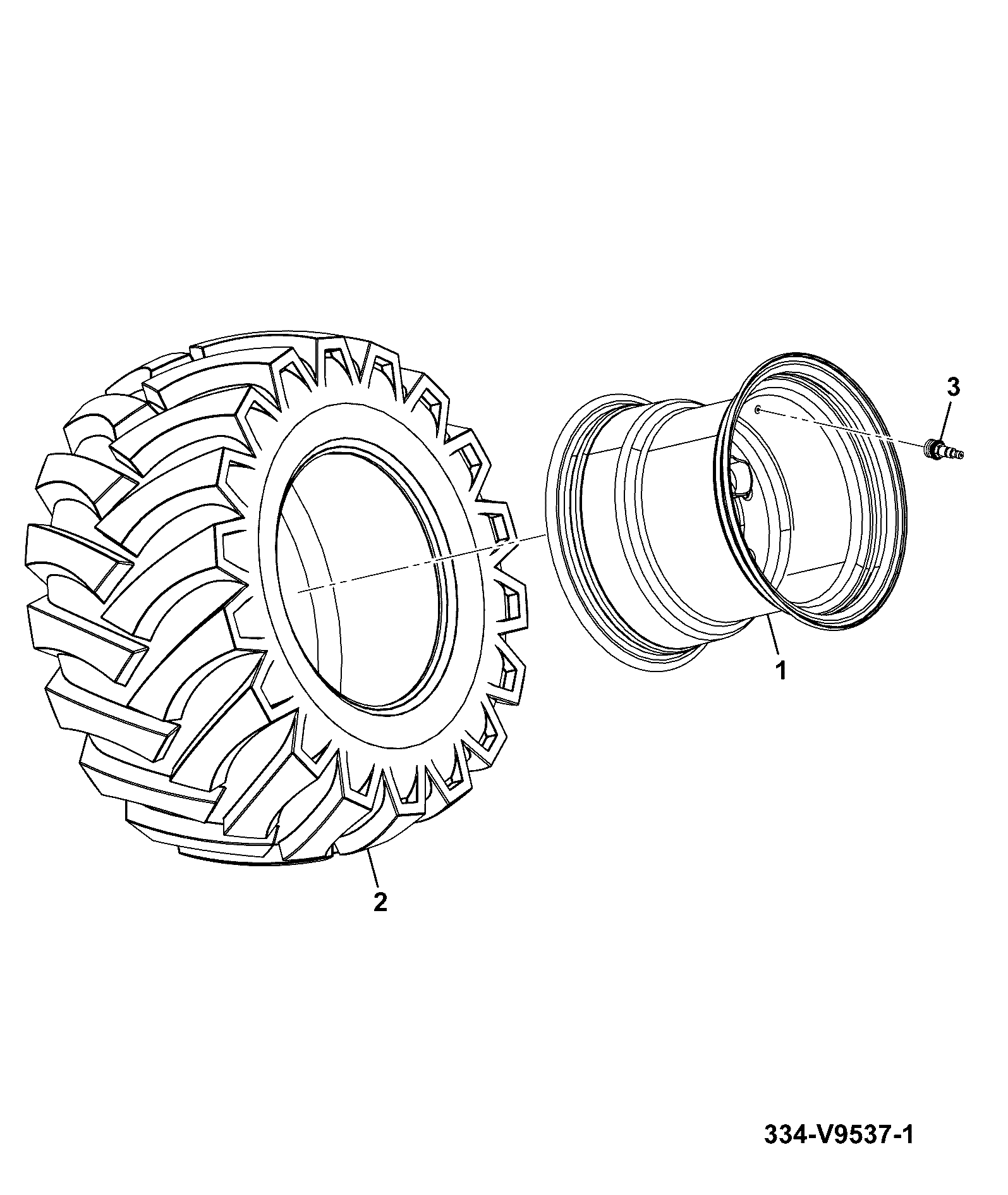

F330-35-1 WHEELS AND TYRES FRONT AND REAR ASSEMBLY NARROW, LEFT SIDE Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	LH NARROW WHEEL AG ASSY 334/W0950	1	AVAILABLE TO ORDER	$741.73	Quantity
1	15.3X9 WHEEL RIM 6X205 ET 402/E6976	1	AVAILABLE TO ORDER	$310.86	Quantity
2	TYRE - 10.0/75-15.3 BKT A 334/U6374	1	AVAILABLE TO ORDER	$656.24	Quantity
3	TYRE VALVE 151/05201	1	AVAILABLE TO ORDER	$24.00	Quantity

Showing 1 to 4 of 4 parts
