F330-35-1 WHEELS AND TYRES FRONT AND REAR 10″ X 16.5″, SOLIDEAL, 12 PLY, 520-40 Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	Wheel &Tyre assy 10 x 16.5 / 12 PLY 331/32595	1	AVAILABLE TO ORDER	$919.79	Quantity
1	RIM 8.25 X 16.5 ET+23 333/V8238	1	AVAILABLE TO ORDER	$372.17	Quantity
2	Tyre 10"x 16"/5 12 42/925194	1	AVAILABLE TO ORDER	$541.15	Quantity
3	VALVE, TYRE - FLEXIBLE 123/05041	1	AVAILABLE TO ORDER	$92.43	Quantity

Showing 1 to 4 of 4 parts

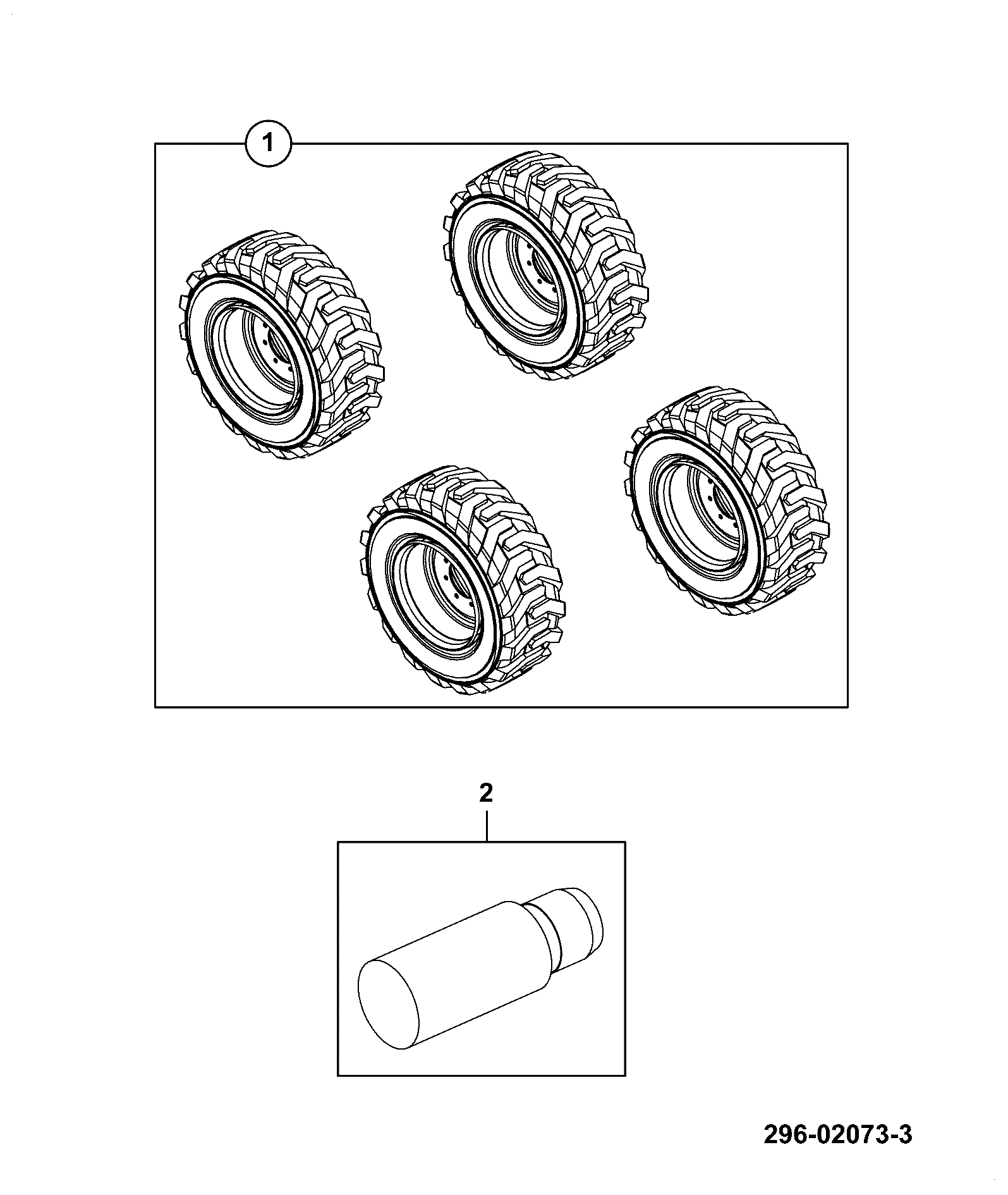

DIAG-F300-20-1-400151 F300-20-1 WHEELS AND TYRES 10" X 16.5", SOLIDEAL, 12 PLY, 1545 WIDE, YELLOW, 520-40
View Diagram

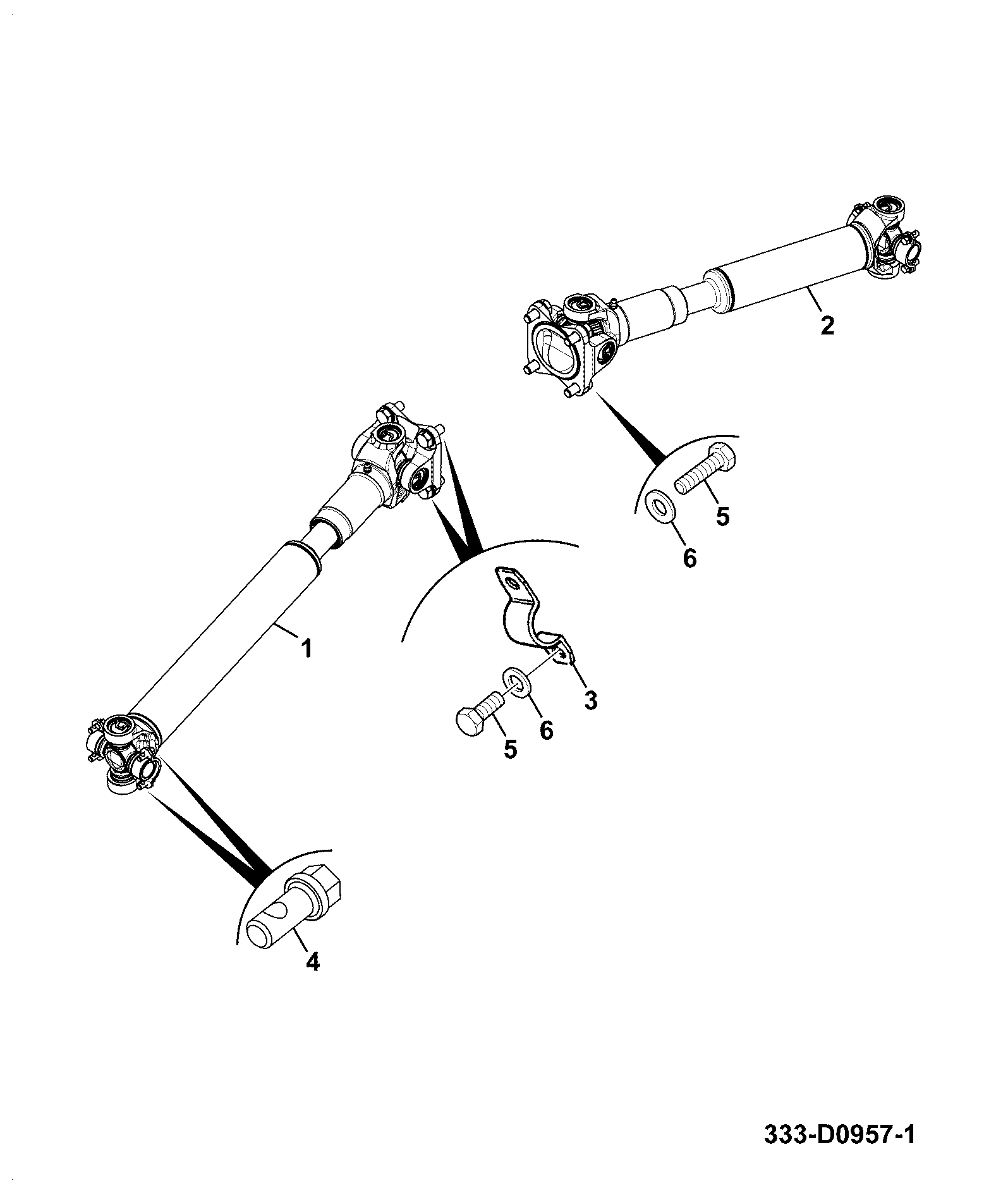

DIAG-F350-1-1-400151 F350-1-1 PROPSHAFT INSTALLATION ASSEMBLIES HYDROSTATIC 520-40
