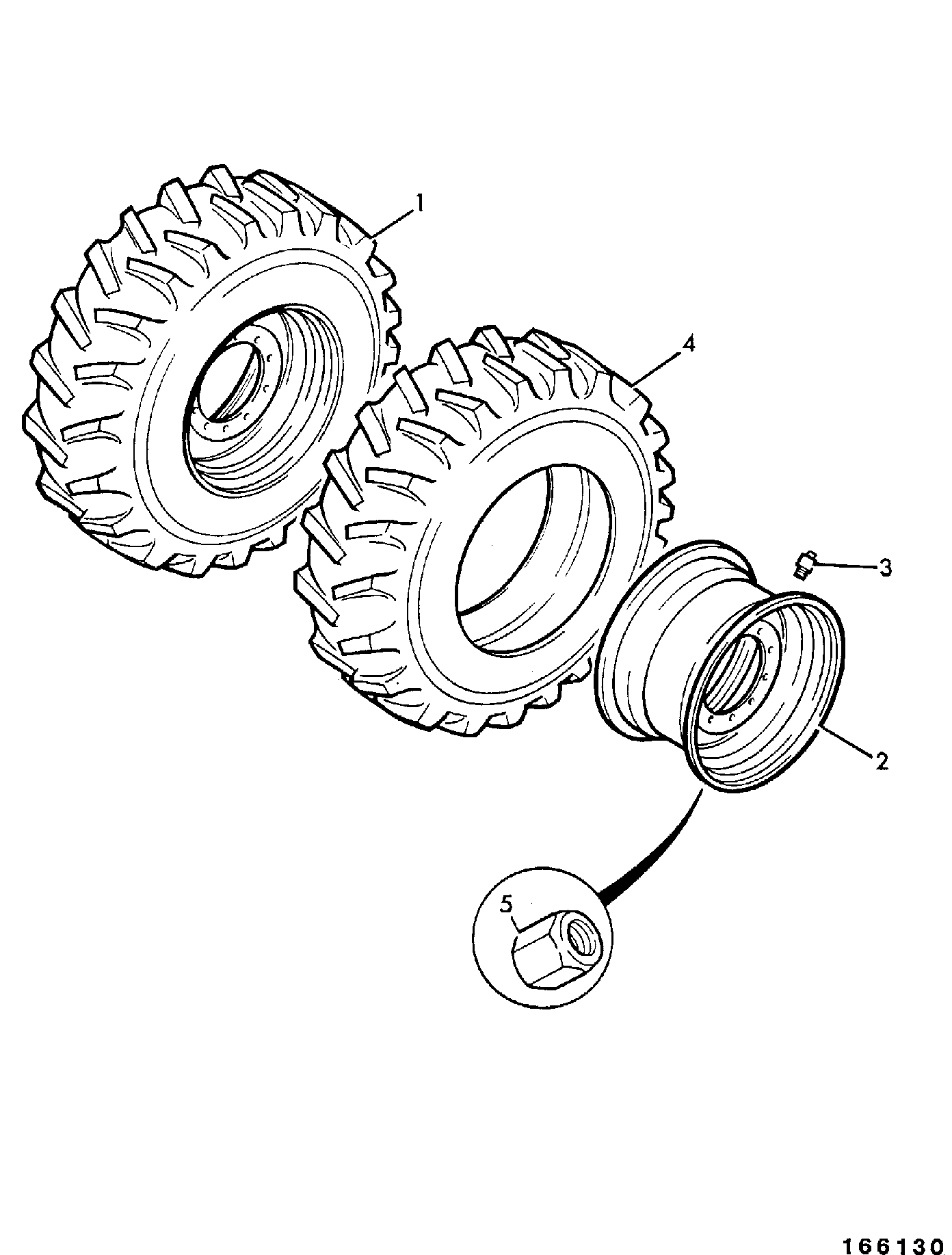

F330-10-1 WHEELS AND TYRES FRONT AND REAR MICHELIN 15.5 R25 XTLA Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	MICHELIN 15.5 R25 XTLA 160/01080	1	AVAILABLE TO ORDER	$6,166.31	Quantity
1	WHEEL12.00 X 25 DC 41/924700	1	AVAILABLE TO ORDER	$829.12	Quantity
2	15.5x25 XTLA MICHELIN 42/107000	1	AVAILABLE TO ORDER	$4,828.06	Quantity
3	TYRE VALVE 151/05201	1	AVAILABLE TO ORDER	$24.00	Quantity

Showing 1 to 4 of 4 parts

DIAG-F330-9-1-403048 F330-9-1 WHEELS AND TYRES FRONT AND REAR MICHELIN,460/70 R24
View Diagram

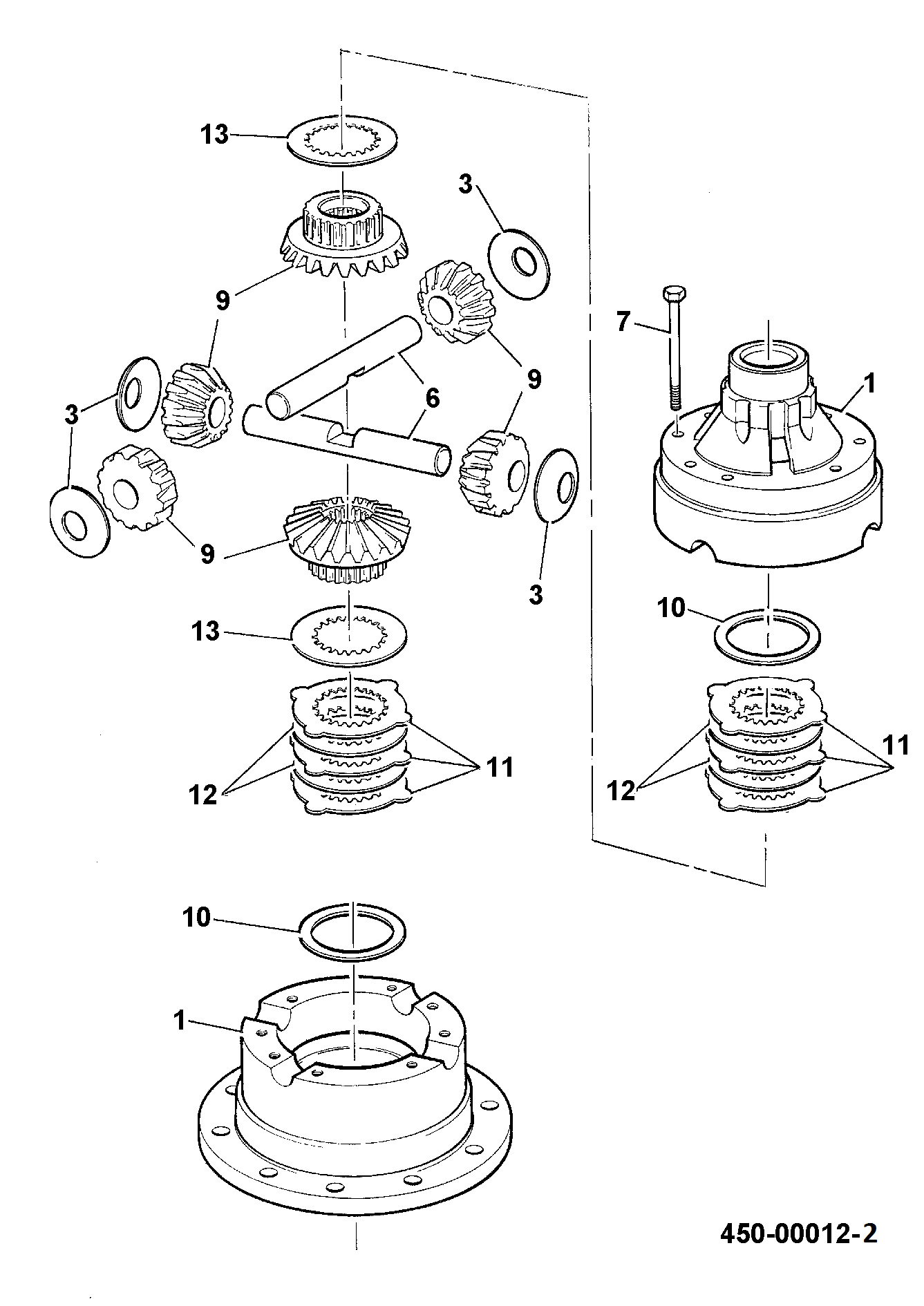

DIAG-F260-2-1-403048 F260-2-1 DIFFERENTIAL ASSEMBLY LSD 450/26200/3
View Diagram

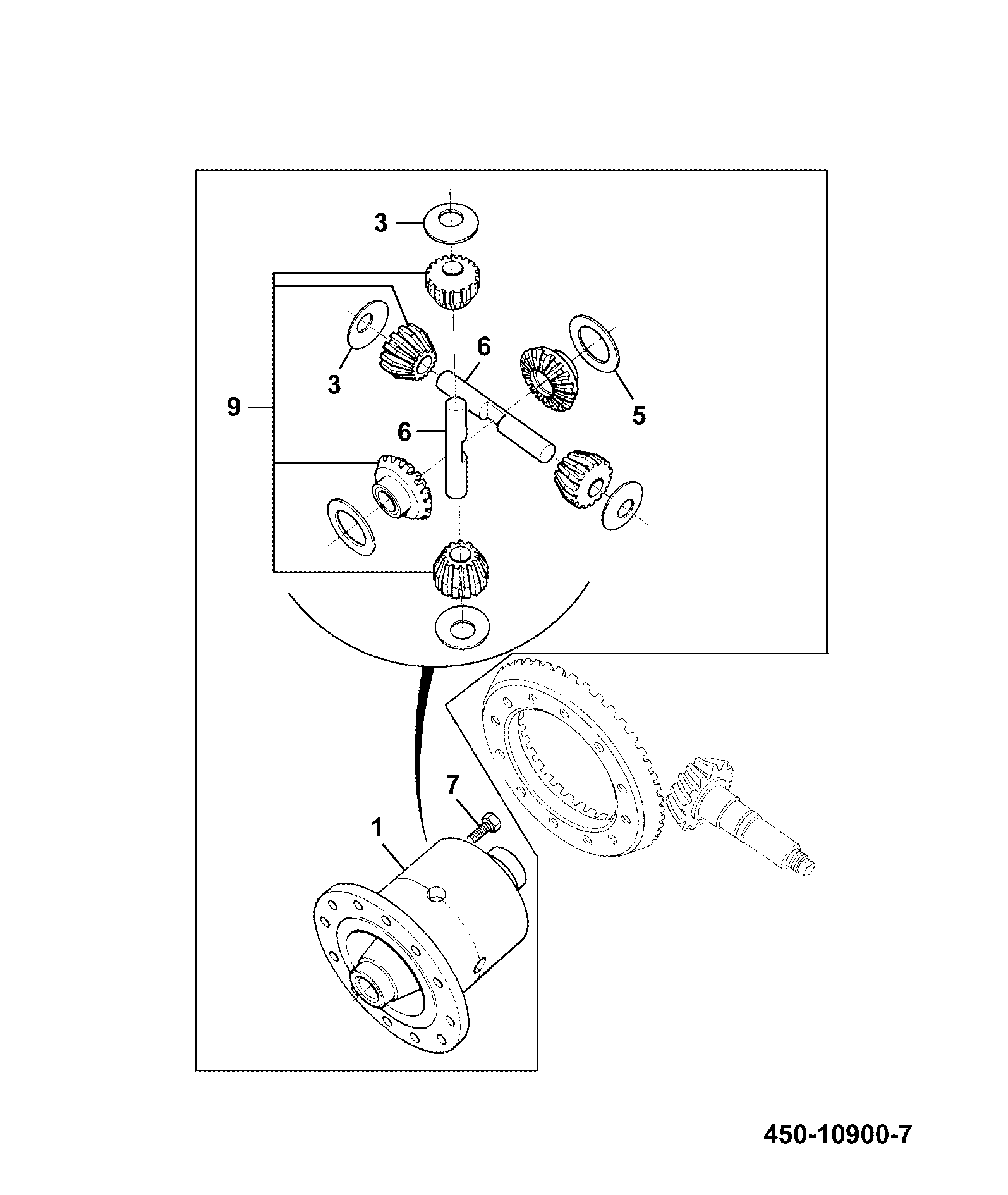

DIAG-F260-1-1-403048 F260-1-1 DIFFERENTIAL ASSEMBLY 450/10900/7
