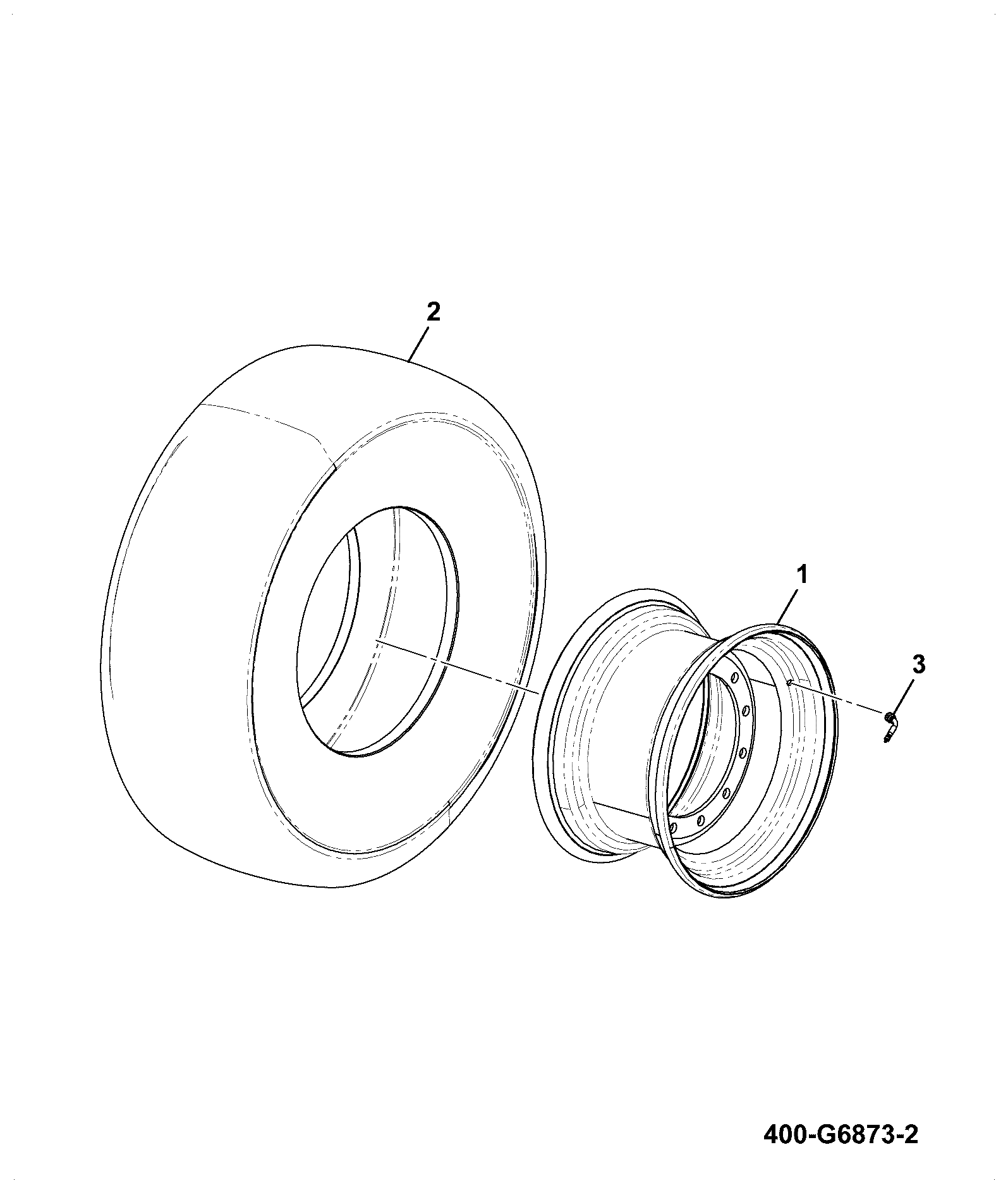

F330-1-1 WHEELS AND TYRES FRONT AND REAR GSR ABI Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	ABI W&T ALLIANCE 690 GSR 17.5R25 400/G7168	1	AVAILABLE TO ORDER	$3,417.19	Quantity
1	WHEEL 14.00X25/1.3 OFF+30 400/G6348	1	AVAILABLE TO ORDER	$1,052.14	Quantity
2	TYRE JCB EARTHMOVER 17.5R25 42/925328	1	AVAILABLE TO ORDER	$3,802.75	Quantity
3	TYRE VALVE 265/00500	1	AVAILABLE TO ORDER	$25.77	Quantity

Showing 1 to 4 of 4 parts
