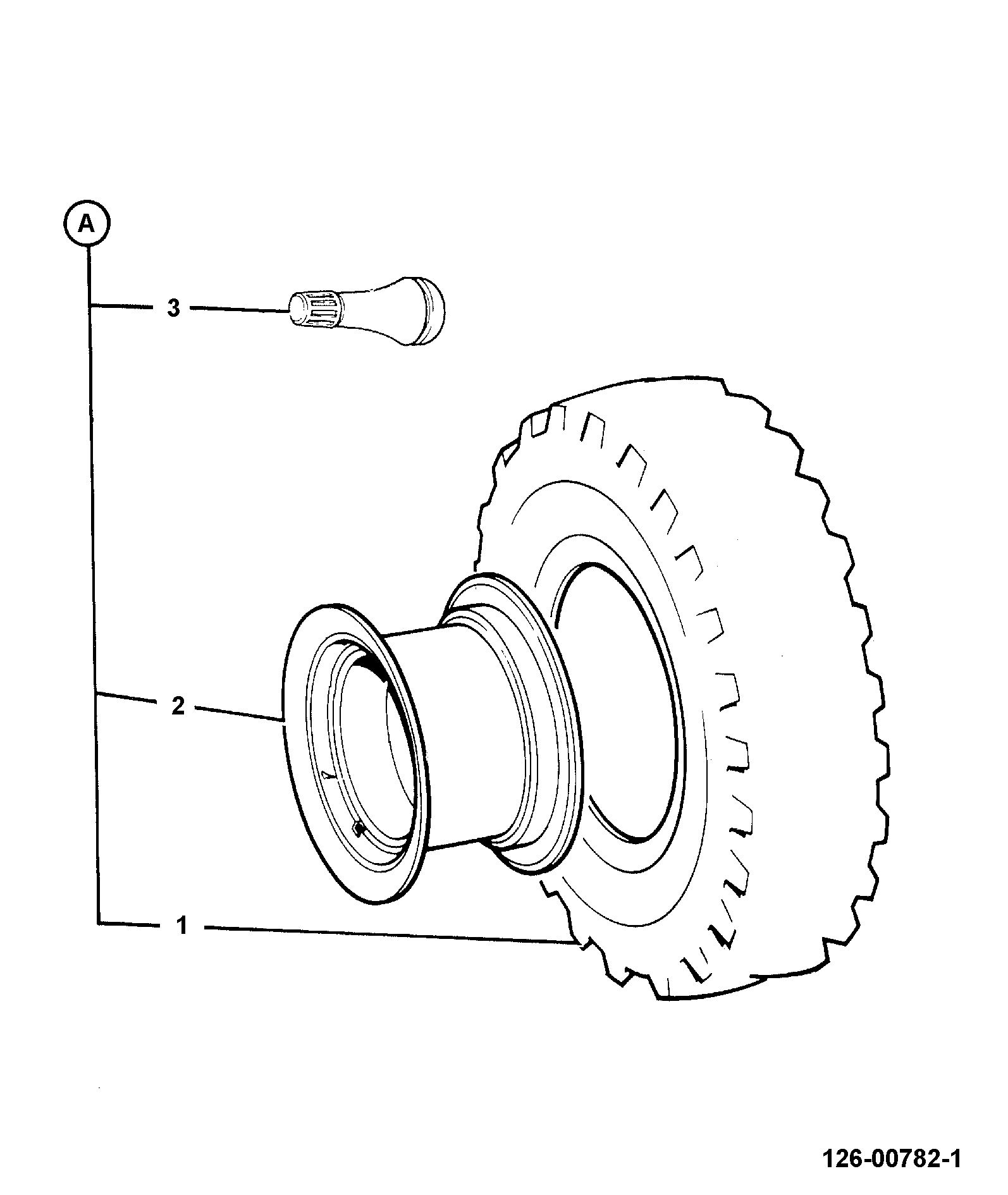

F320-5-1 WHEELS AND TYRES REAR ASSEMBLY 2WS 2WD/4WD 16.9X28X12 IND. SITEMASTER Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Tyre JCB Sitemaster 16.9-28 12PR 42/925170	1	AVAILABLE TO ORDER	$1,786.89	Quantity
2	RIM W14LX28 +60MM 41/910200 334/L2024	1	AVAILABLE TO ORDER	$766.52	Quantity
3	TYRE VALVE 151/05201	1	AVAILABLE TO ORDER	$24.00	Quantity
A	WHEEL 2ws 16.9x28x 331/25399 128/L1811	1	AVAILABLE TO ORDER	$2,331.34	Quantity

Showing 1 to 4 of 4 parts

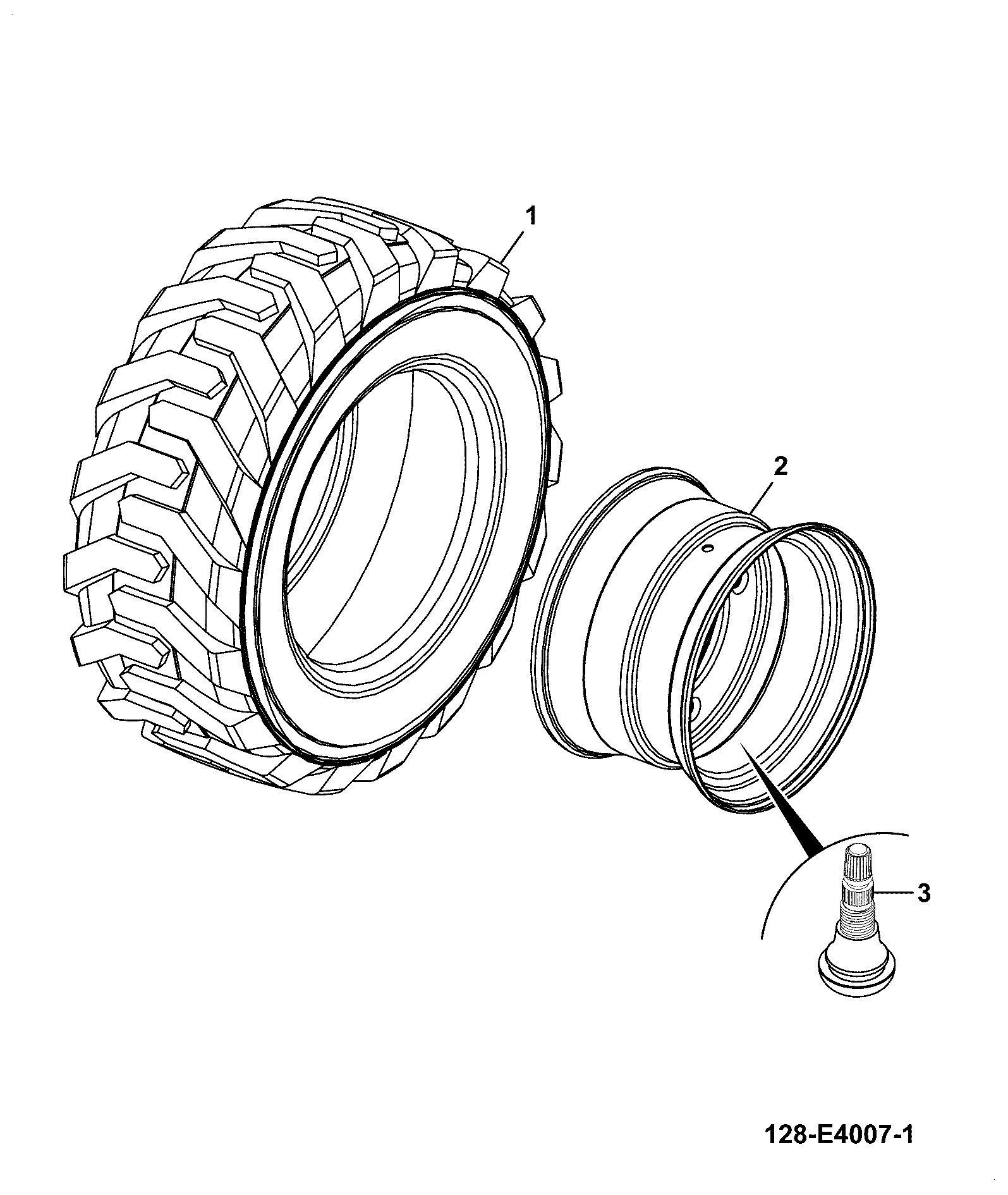

DIAG-F320-10-1-394795 F320-10-1 WHEELS AND TYRES REAR ASSEMBLY 2WS 2WD/4WD 19.5LX24X12 GALAXY
View Diagram
DIAG-F310-15-1-394795 F310-15-1 WHEELS AND TYRES FRONT ASSEMBLY 14X17.5X10 GALAXY, SUNBELT
View Diagram

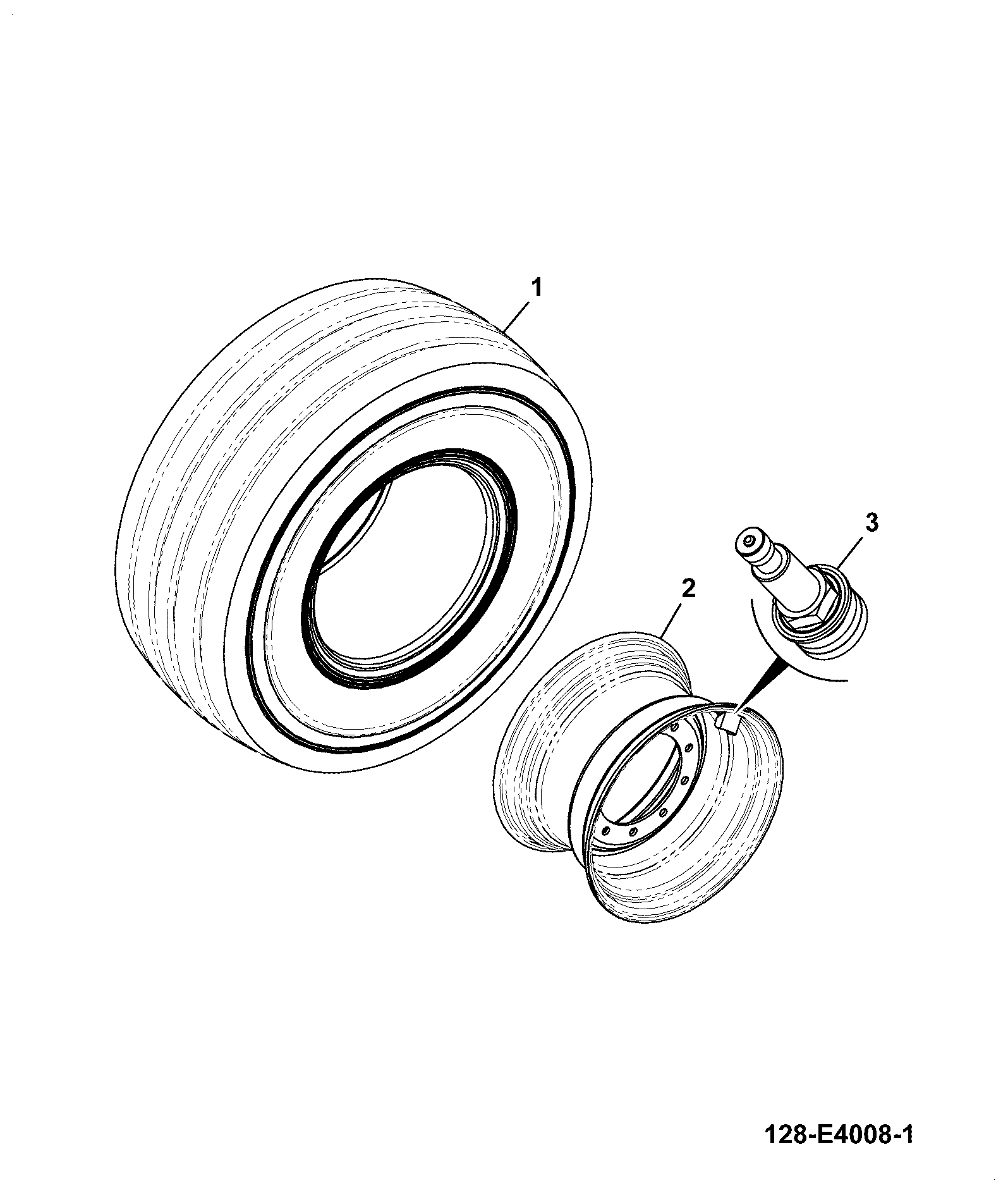

DIAG-F320-25-1-394795 F320-25-1 WHEELS AND TYRES REAR ASSEMBLY 19.5X24X12 GALAXY, SUNBELT
