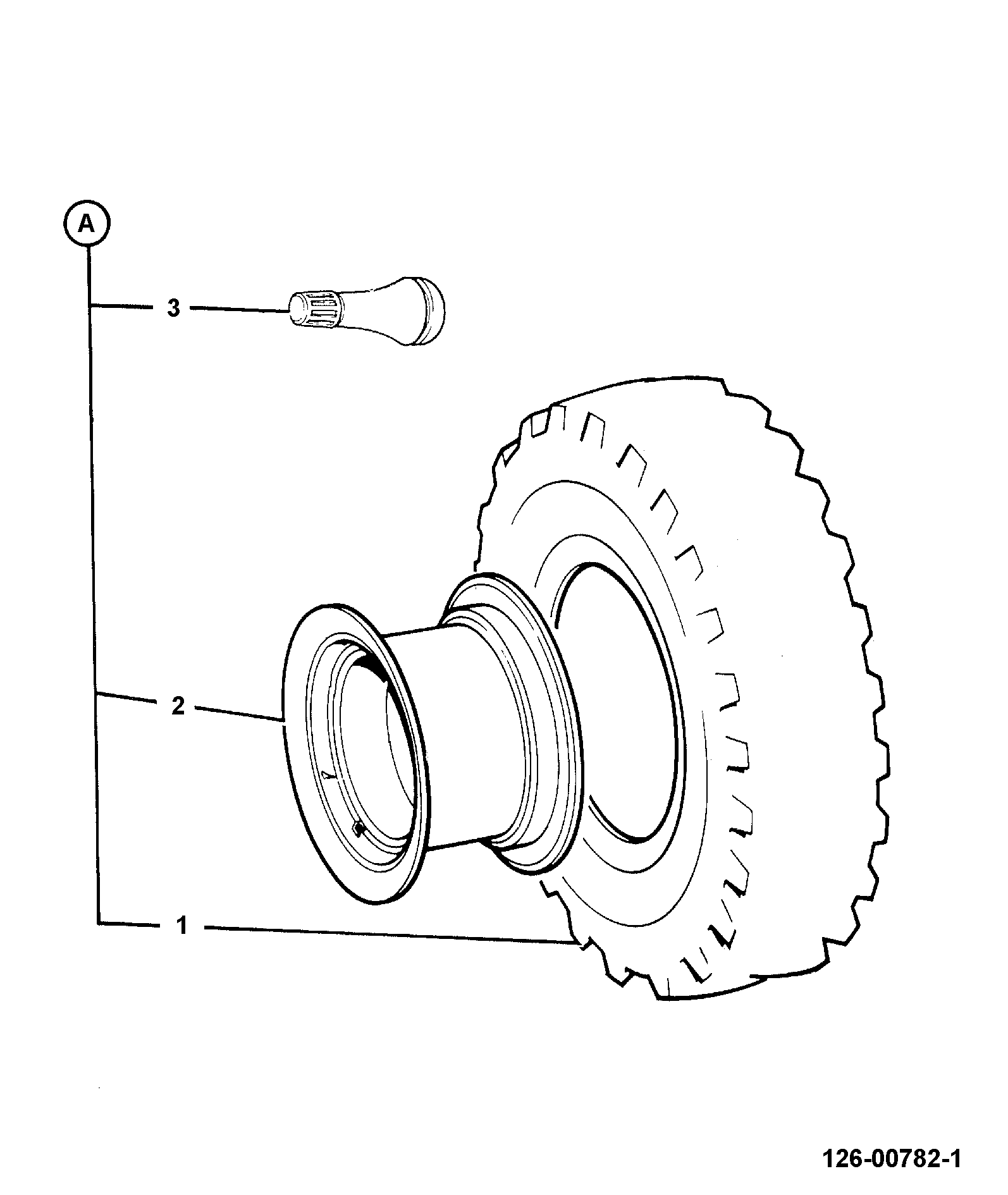

F320-5-1 WHEELS AND TYRES REAR ASSEMBLY 2WS 2WD/4WD 19.5LX24X12 GALAXY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	TYRE 19.5LX24X12PR R4 GALAXY 42/925389	1	AVAILABLE TO ORDER	$1,733.81	Quantity
2	RIM TW16LX24+60MM YELLOW 334/L2033 401/C4248	1	AVAILABLE TO ORDER	$764.29	Quantity
3	TYRE VALVE 151/05201	1	AVAILABLE TO ORDER	$24.00	Quantity
A	WHEEL 2ws 19.5Lx24 331/68636 128/L1804	1	AVAILABLE TO ORDER	$6,187.93	Quantity

Showing 1 to 4 of 4 parts
