F320-15-1 WHEELS AND TYRES REAR ASSEMBLY 440/80xR28 XMCL (-20) BLK Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	WHEEL 440/80xR28 XMCL (-2 128/K5708	1	AVAILABLE TO ORDER	$5,216.97	Quantity
1	TYRE 440/80-R28 MICHELIN 42/103000 42/925375	1	AVAILABLE TO ORDER	$4,996.75	Quantity
2	RIM TW15Lx28 (-20) BLK 402/K5711	1	AVAILABLE TO ORDER	$850.83	Quantity
3	TYRE VALVE 151/05201	1	AVAILABLE TO ORDER	$24.00	Quantity

Showing 1 to 4 of 4 parts

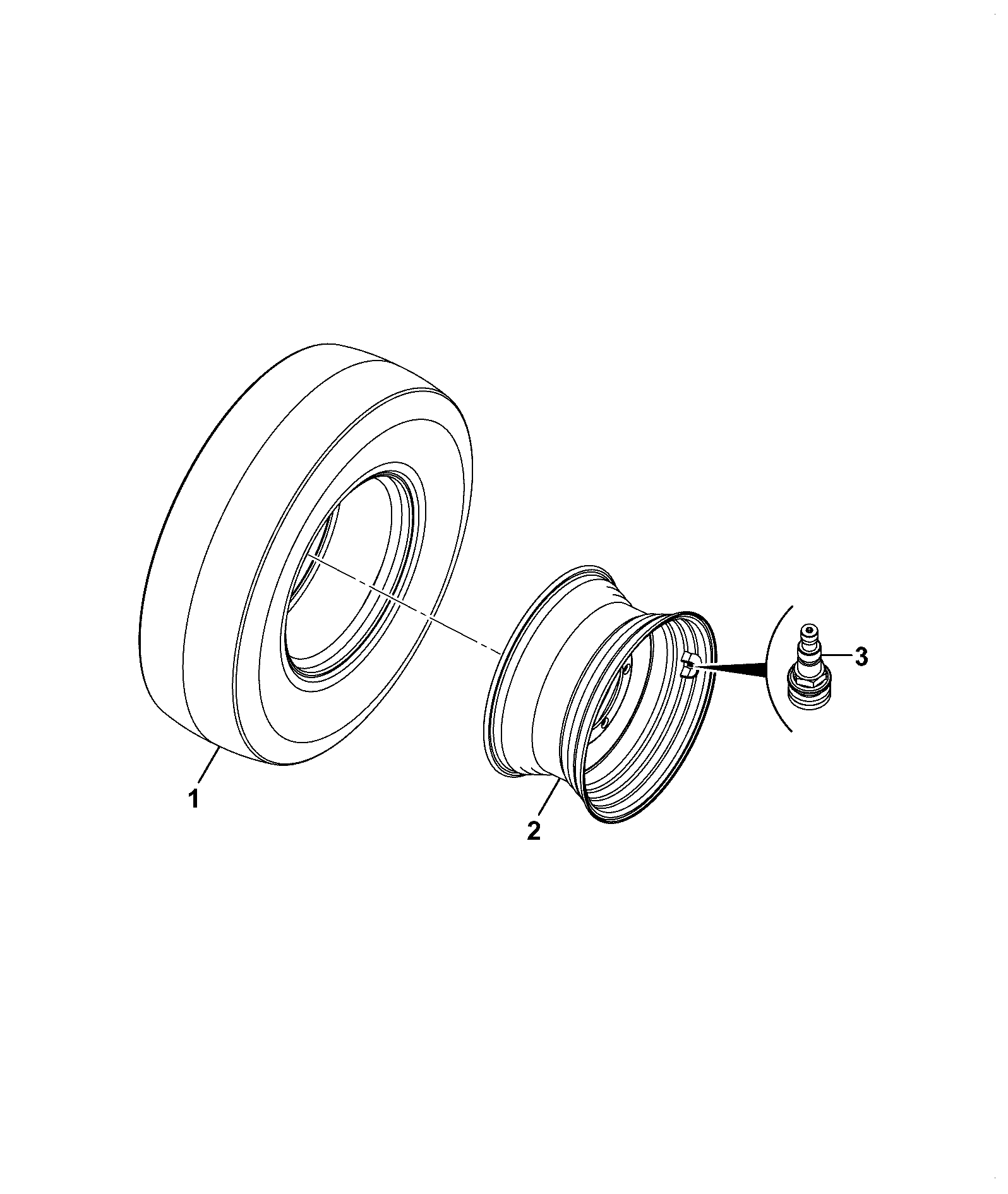

DIAG-F320-5-1-394809-10800572 F320-5-1 WHEELS AND TYRES REAR WHEEL, 2WS, 18.4LX26X12PR
View Diagram

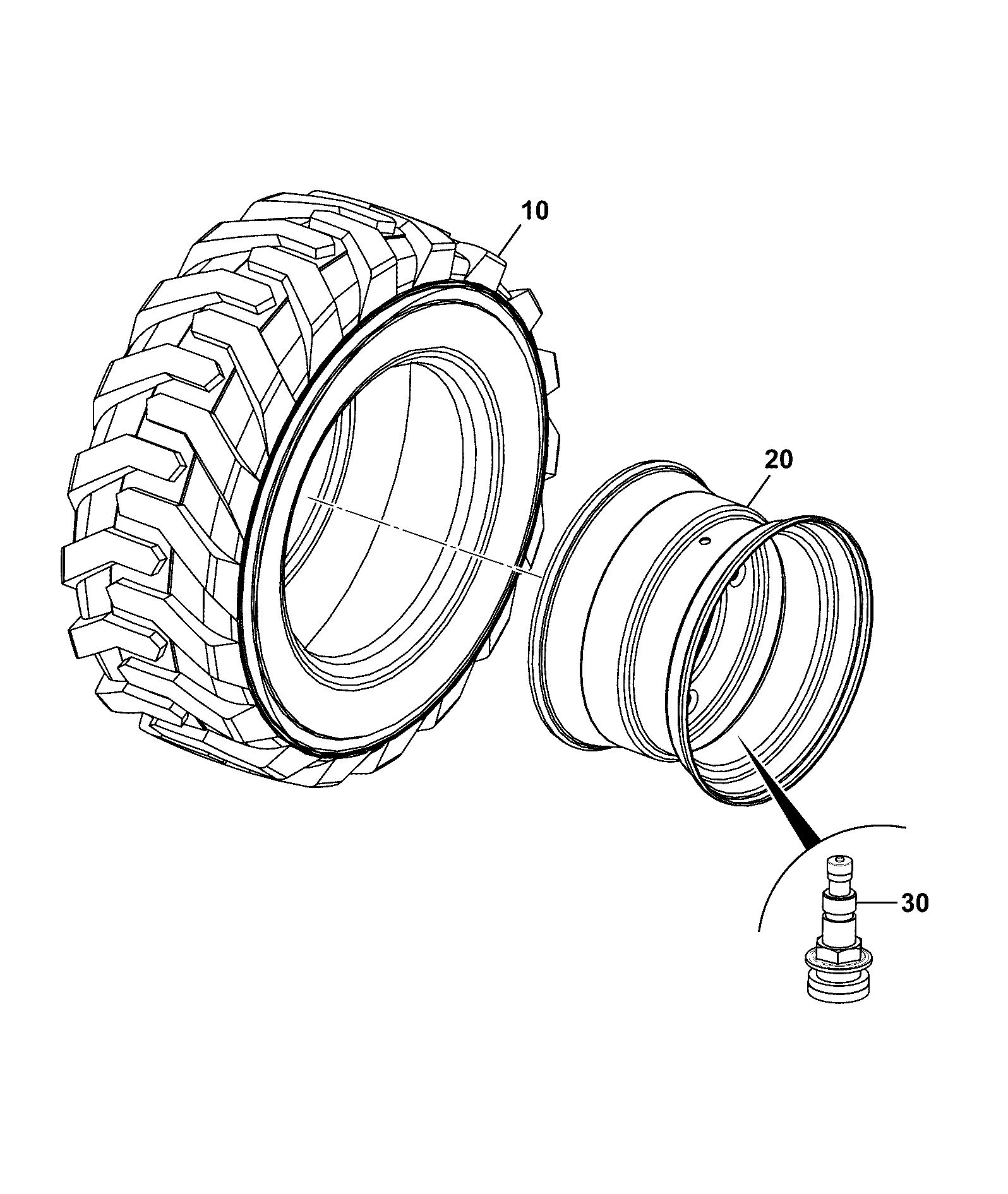

DIAG-F330-1-1-394809-10800577 F330-1-1 WHEELS AND TYRES FRONT AND REAR ASSEMBLY 480/80-26 POWER CL
View Diagram

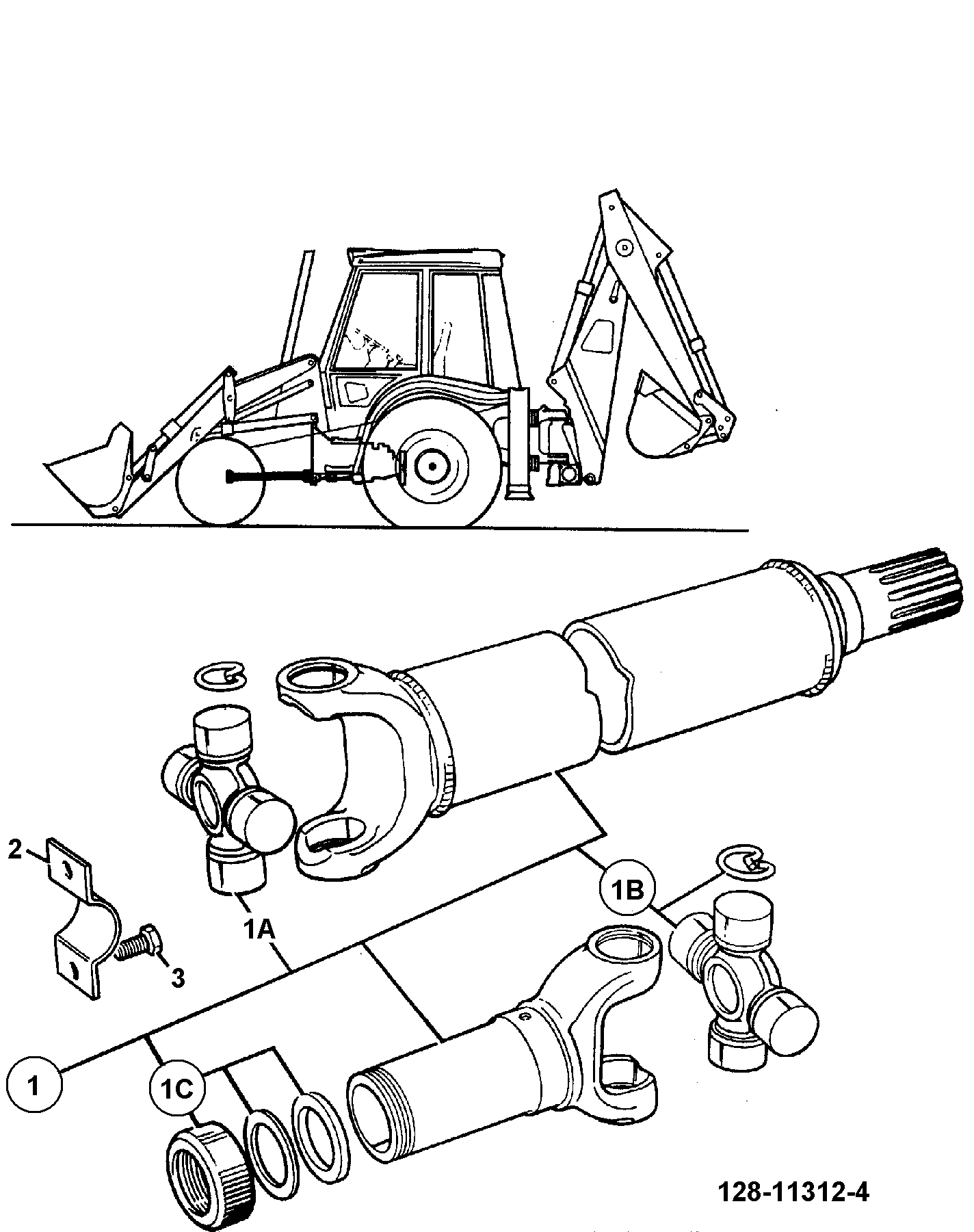

DIAG-F360-1-1-394809 F360-1-1 PROP SHAFT FRONT
