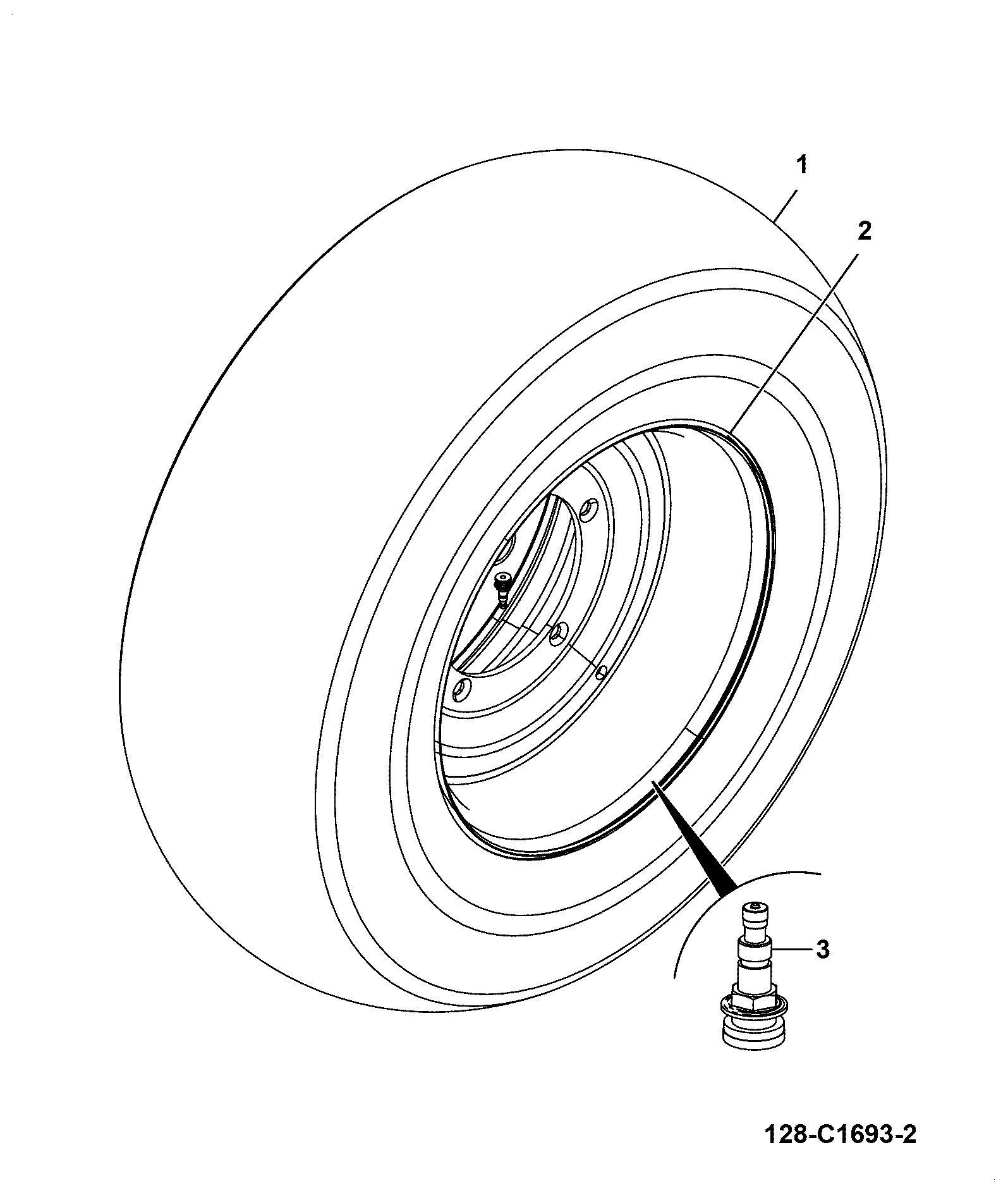

F320-15-1 WHEELS AND TYRES REAR 2WS, 16.9x28x12 Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Tyre JCB Sitemaster 16.9-28 12PR 42/925170	1	AVAILABLE TO ORDER	$1,786.89	Quantity
2	RIM W14LX28 +60MM 41/910200 334/L2024	1	AVAILABLE TO ORDER	$766.52	Quantity
3	TYRE VALVE 151/05201	1	AVAILABLE TO ORDER	$24.00	Quantity
A	WHEEL 2ws 16.9x28x 331/25399 128/L1811	1	AVAILABLE TO ORDER	$2,331.34	Quantity

Showing 1 to 4 of 4 parts

DIAG-F320-35-1-394764 F320-35-1 WHEELS AND TYRES REAR 25x19.5x12PR TITAN
View Diagram

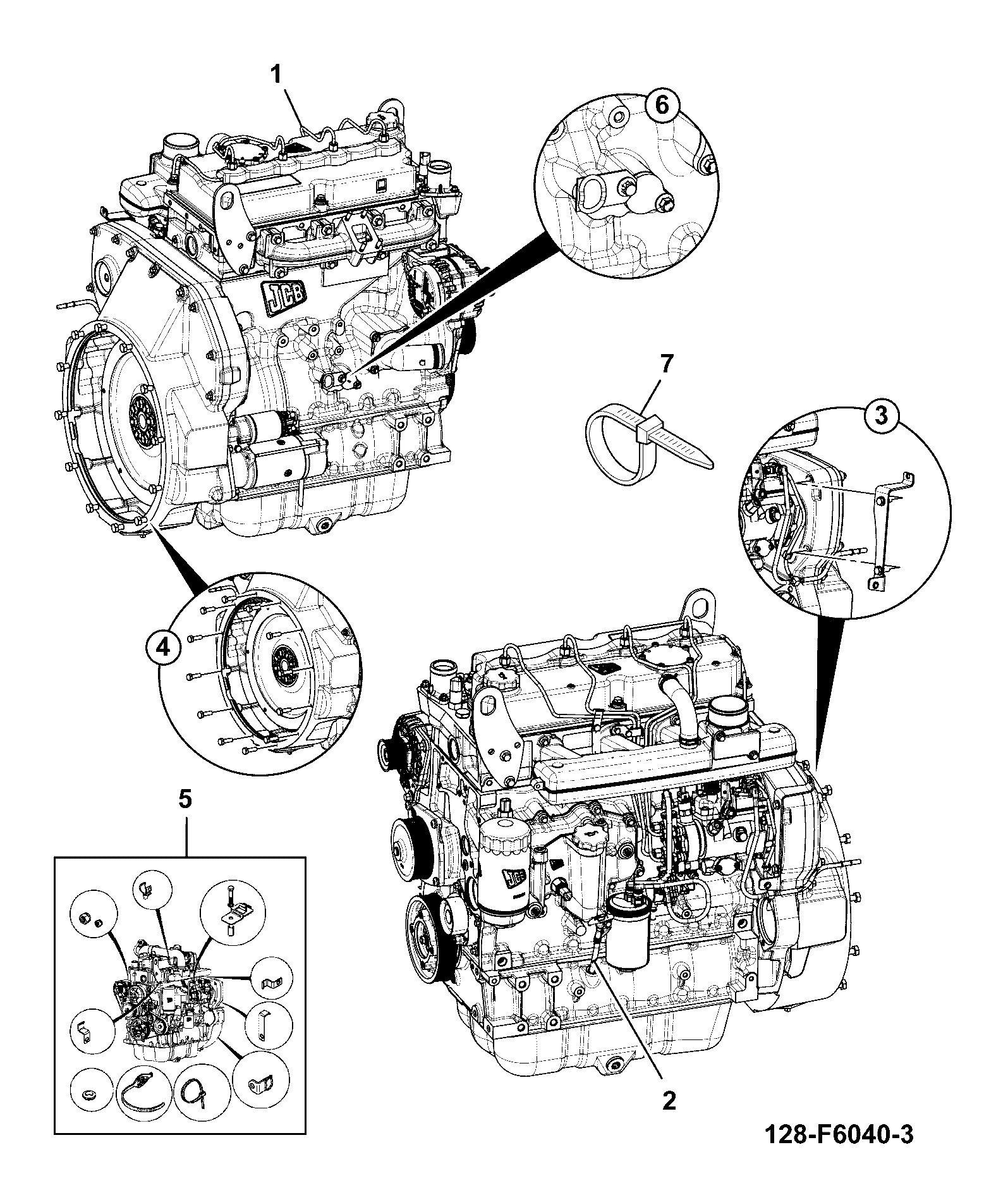

DIAG-L100-45-1-394764 L100-45-1 ENGINE INSTALLATION ASSEMBLIES NATURALLY ASPIRATED, 63/84 T2
View Diagram

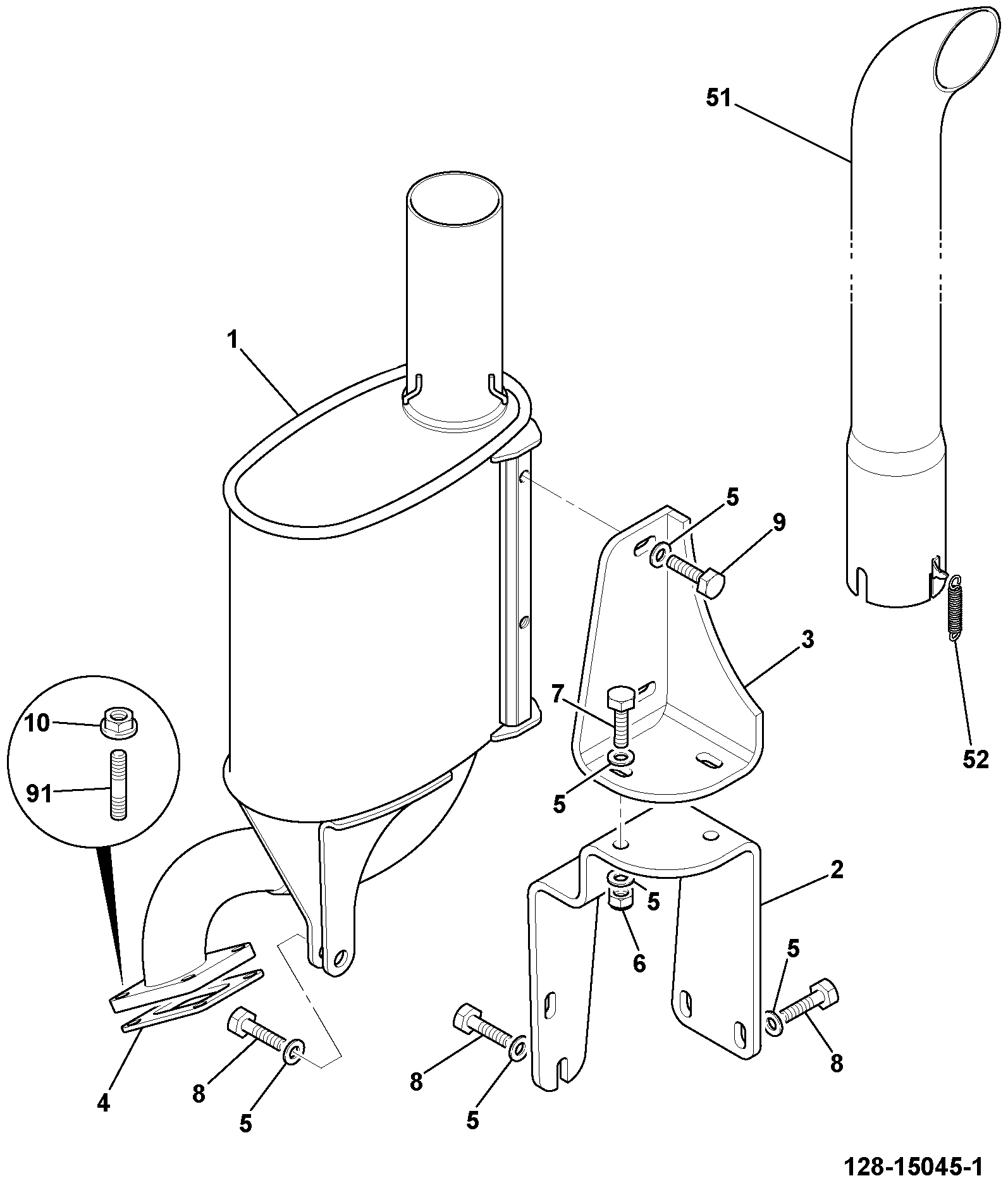

DIAG-L200-10-1-394764 L200-10-1 EXHAUST SYSTEM INSTALLATION ASSEMBLIES NATURALLY ASPIRATED
