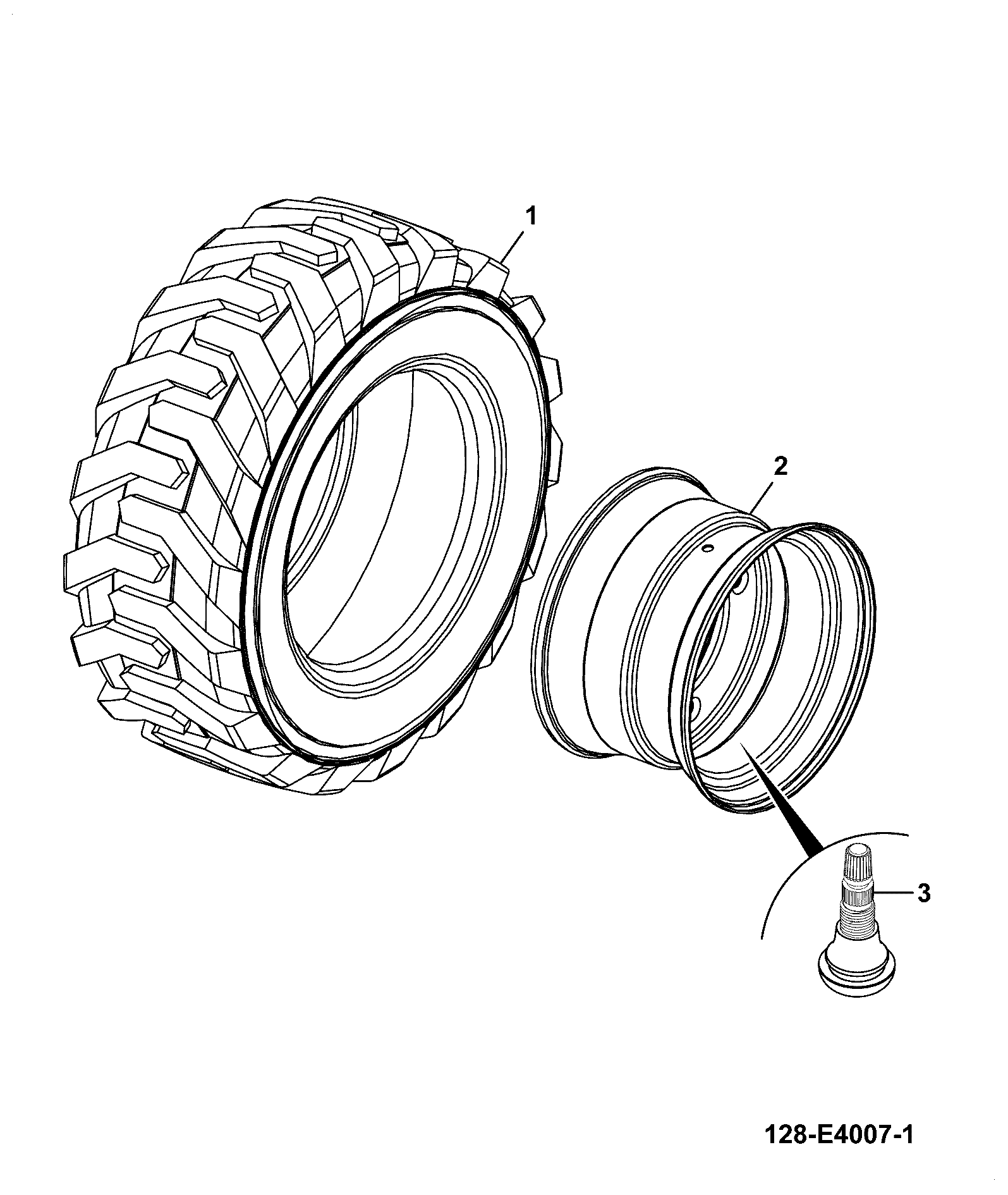

F320-10-1 WHEELS AND TYRES REAR ASSEMBLY 19.5X24X12 GALAXY, SUNBELT Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	TYRE 19.5LX24X12PR R4 GALAXY 42/925389	1	AVAILABLE TO ORDER	$1,733.81	Quantity
2	RIM DW16LX24 +60MM SUNBELT 335/E1978	1	AVAILABLE TO ORDER	$361.33	Quantity
3	TYRE VALVE 151/05201	1	AVAILABLE TO ORDER	$24.00	Quantity

Showing 1 to 3 of 3 parts

DIAG-F310-10-1-394788 F310-10-1 WHEELS AND TYRES FRONT ASSEMBLY 14X17.5X10 GALAXY, SUNBELT
View Diagram
DIAG-E465-15-1-394788 E465-15-1 RAMS DIPPER ASSEMBLY
View Diagram

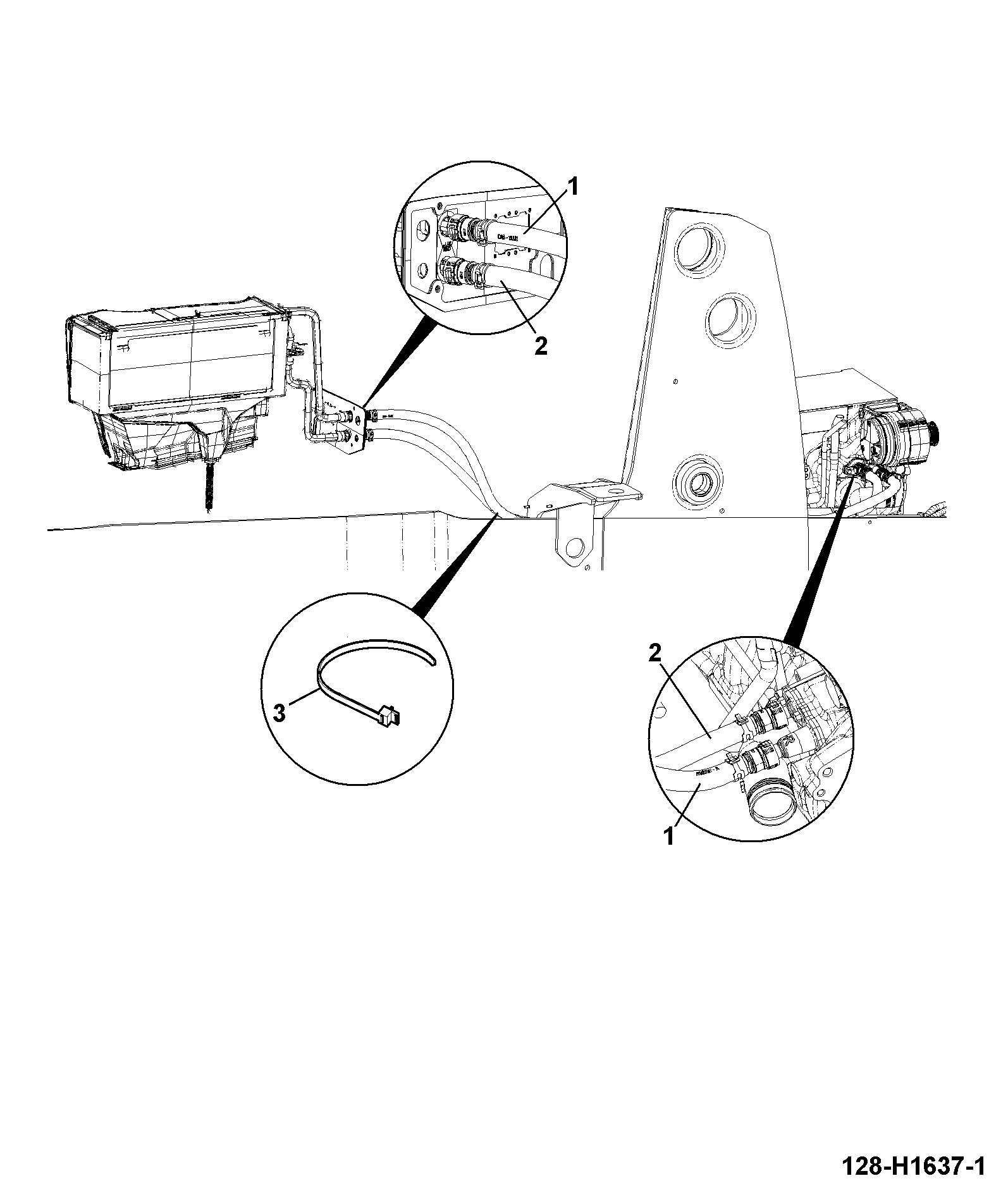

DIAG-L640-15-1-394788 L640-15-1 COOLANT CIRCUIT HEATER FEED AND RETURN, T4i
