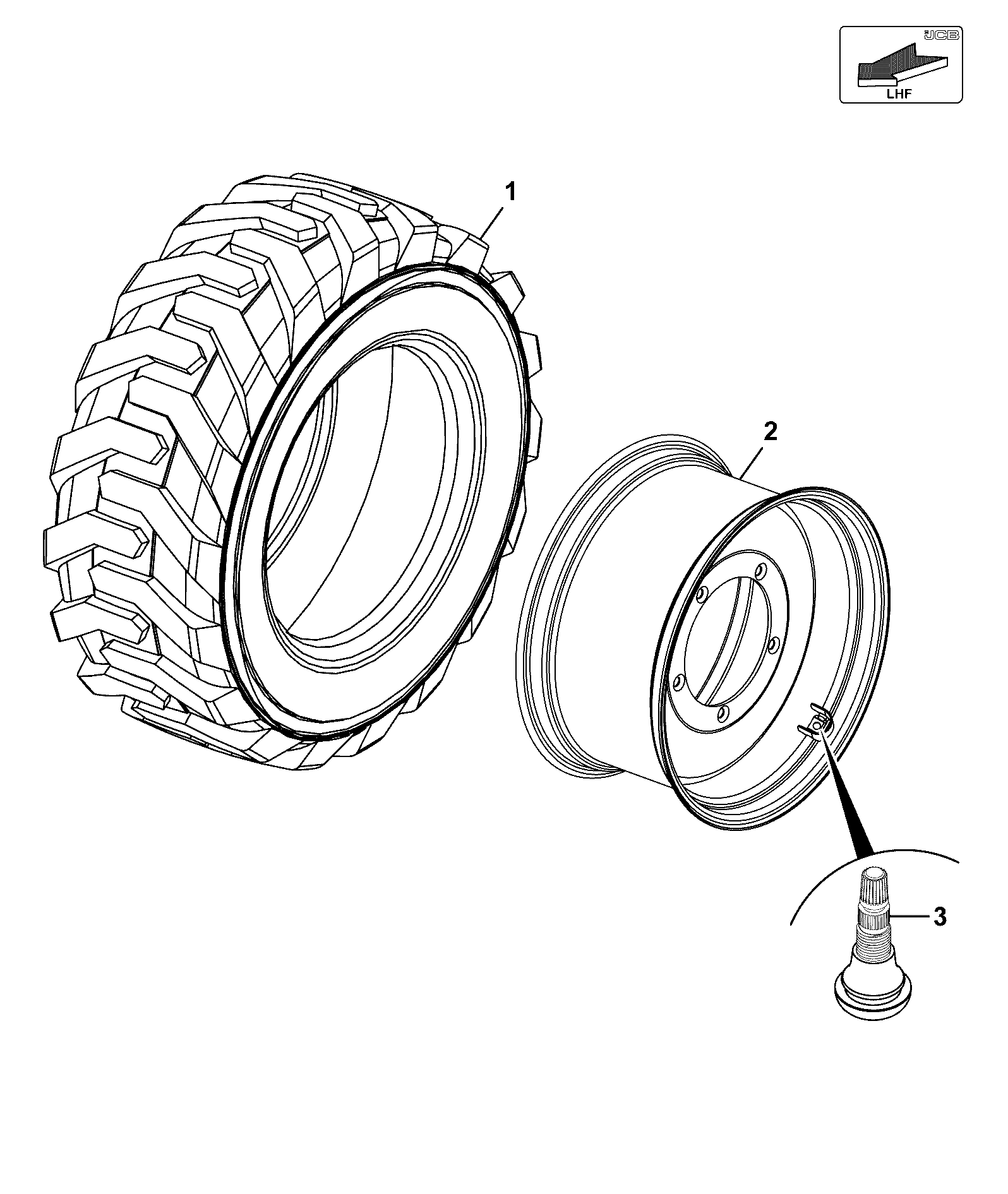

F310-25-1 WHEELS AND TYRES FRONT ASSEMBLY 2WS 12.5x18x10 TITAN Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	TYRE 12.5/80-18 14PR R-4 402/S4536	1	AVAILABLE TO ORDER	$1,180.21	Quantity
2	RIM 11X18 +32MM 4WD 41/927100 334/L1922	1	AVAILABLE TO ORDER	$658.80	Quantity
3	VALVE, TYRE - FLEXIBLE 123/05041	1	AVAILABLE TO ORDER	$92.43	Quantity

Showing 1 to 3 of 3 parts

DIAG-F320-10-1-394808 F320-10-1 WHEELS AND TYRES REAR ASSEMBLY 2WS 18.4-26 12PR R-4 TL
View Diagram
DIAG-L800-15-1-394808 L800-15-1 FUEL SYSTEM INSTALLATION ASSEMBLIES 81kW STAGE V
View Diagram

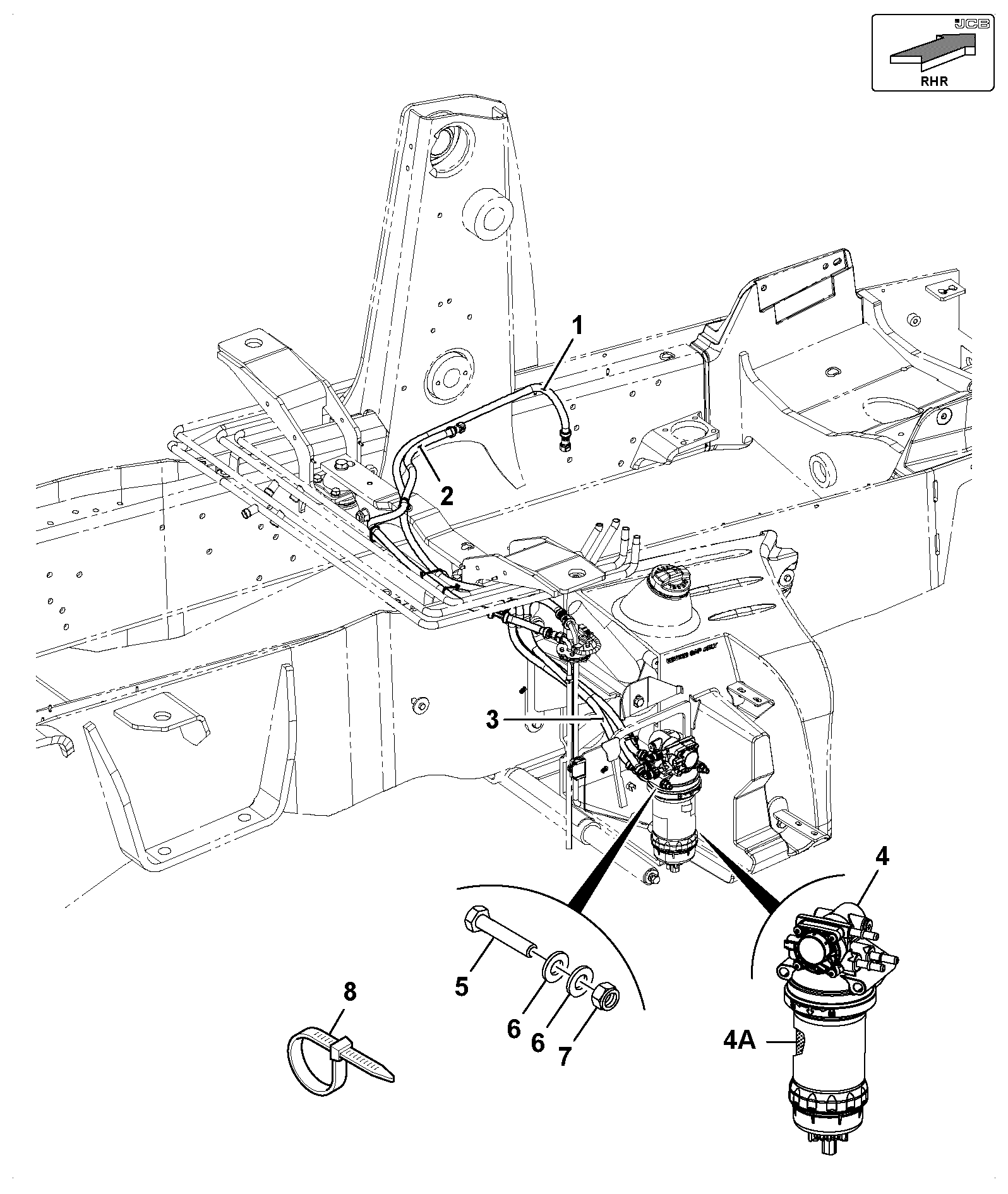

DIAG-L810-20-1-394808 L810-20-1 CIRCUIT DIESEL 81kW STAGE V
