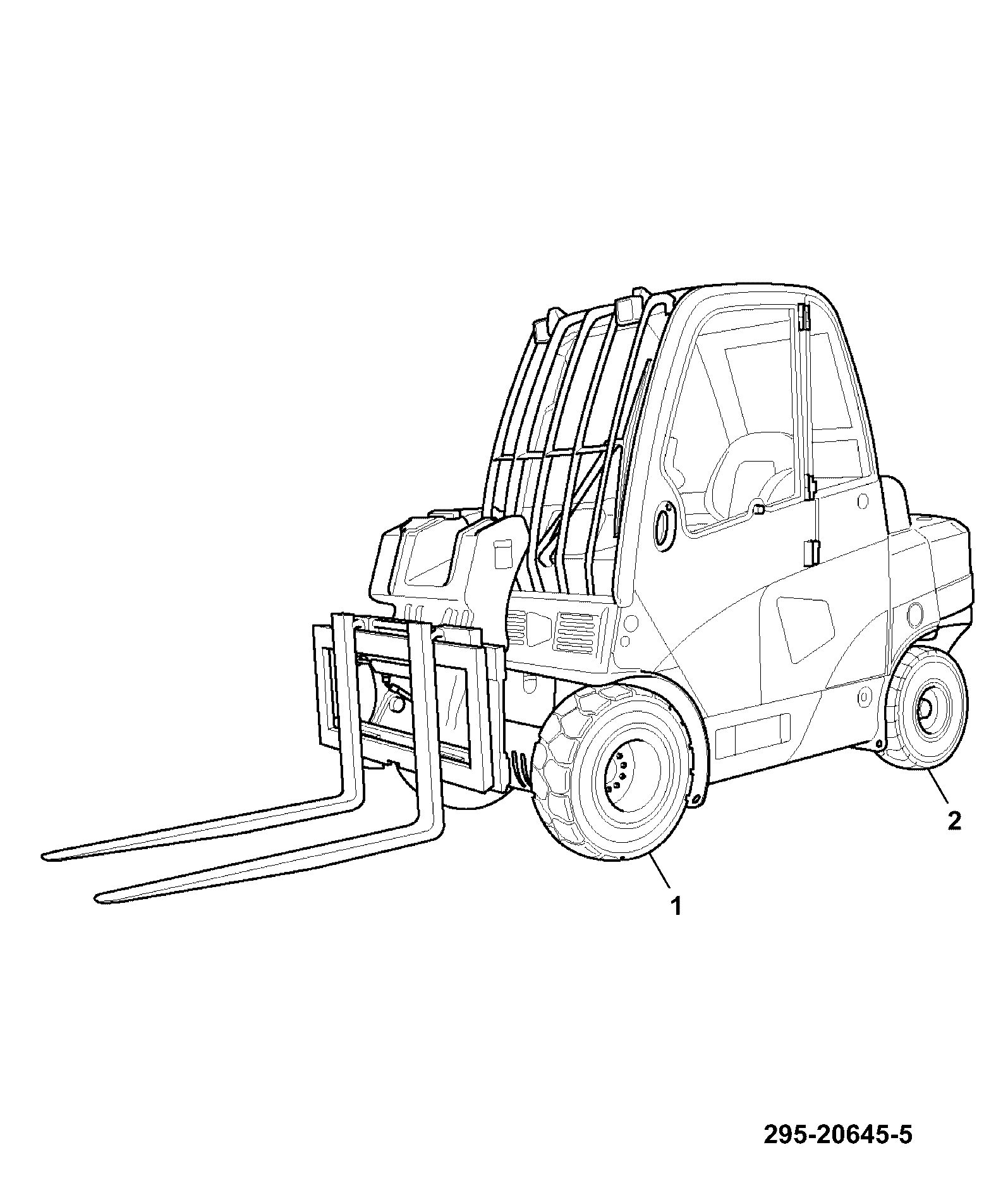

F300-90-1 WHEELS AND TYRES ASSEMBLY SOLIDEAL 27X10-12, FRONT Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action

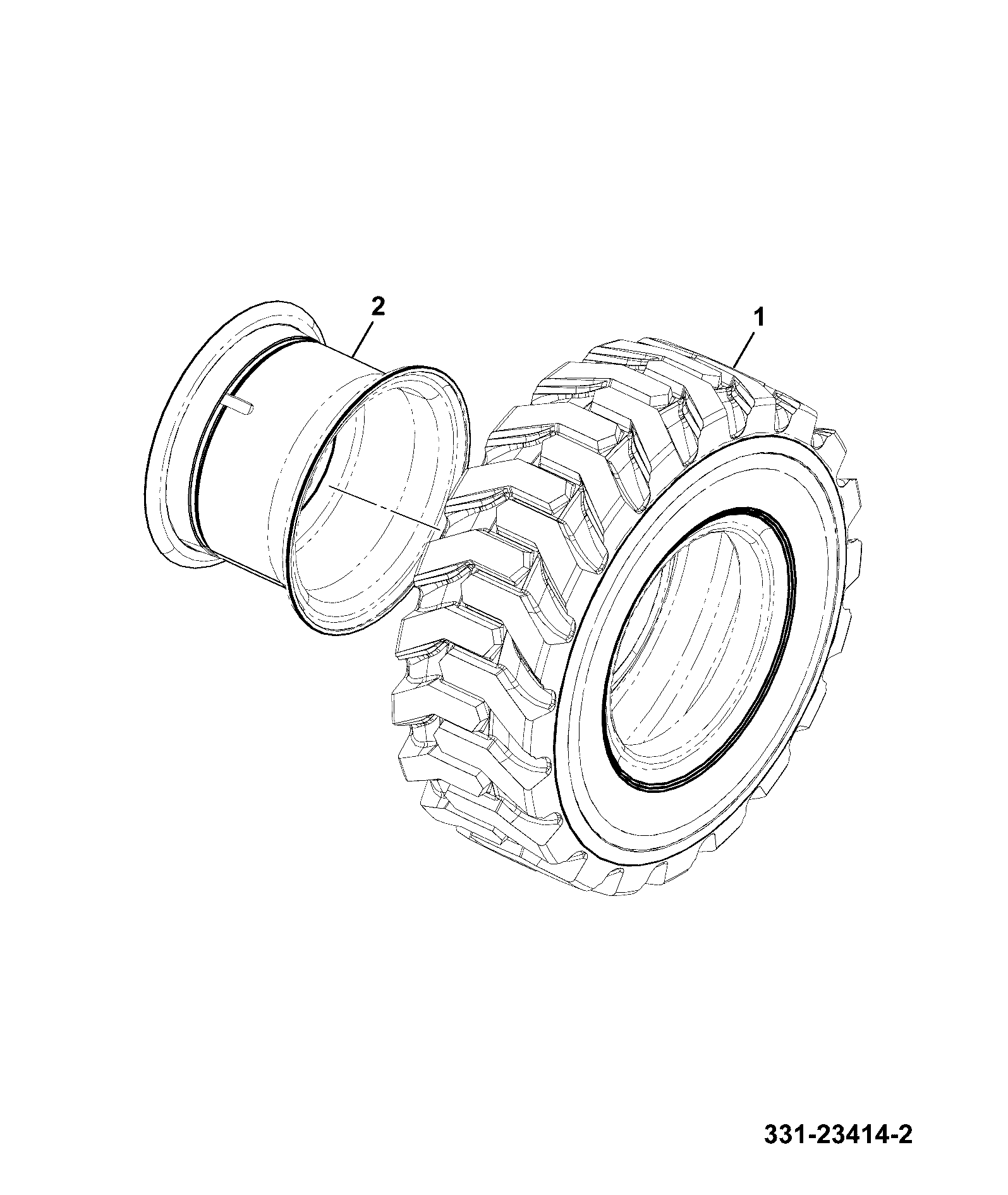

	WHEEL ASSY & H/F - FRONT 331/23413 295/21023	1	AVAILABLE TO ORDER	$1,147.53	Quantity
1	TYRE 42/925105	1	AVAILABLE TO ORDER	$694.62	Quantity
2	WHEEL RIM 8G-12 4 10 stud 41/940143	1	AVAILABLE TO ORDER	$451.82	Quantity

Showing 1 to 3 of 3 parts
