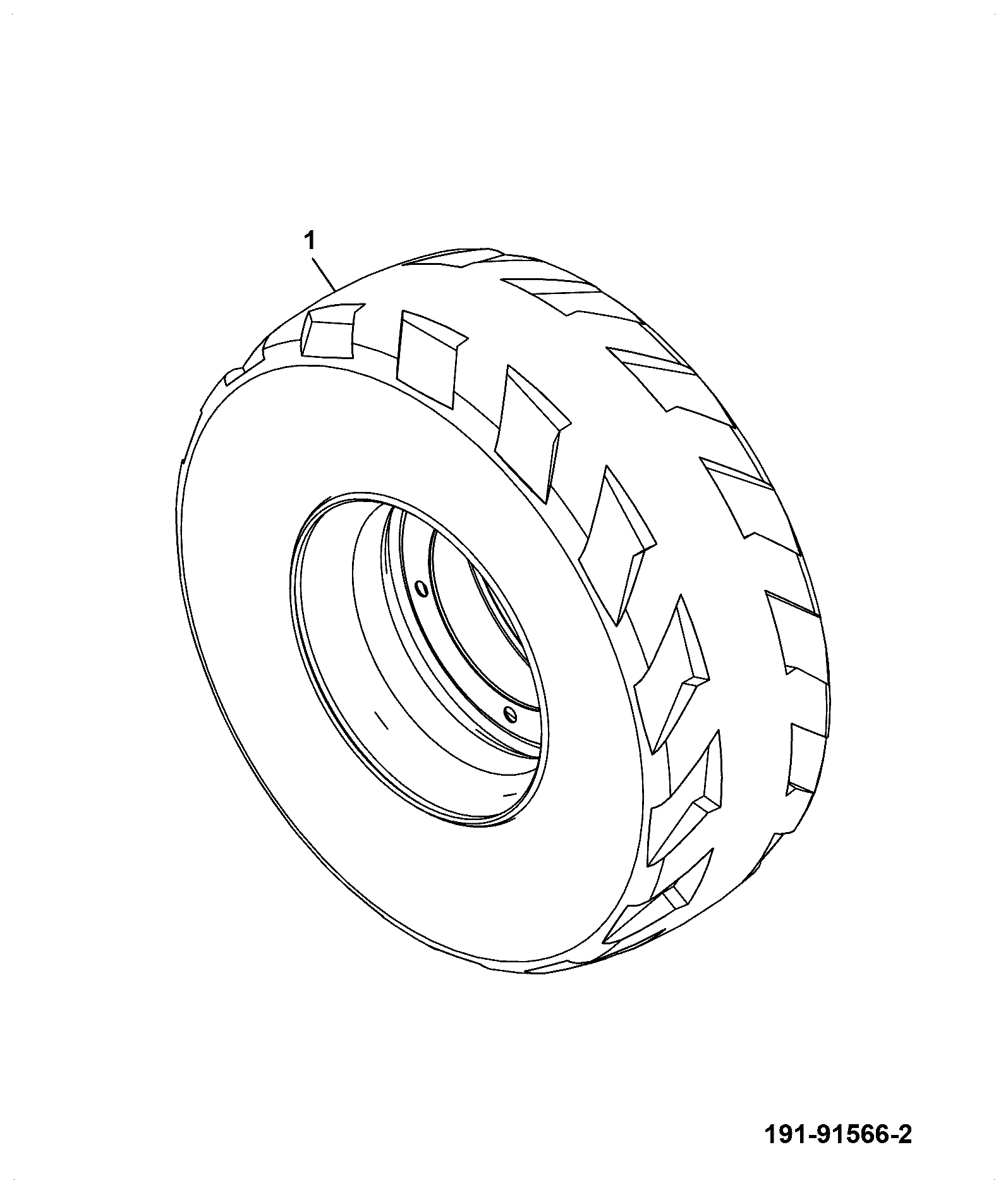

F300-35-1 WHEELS AND TYRES ASSEMBLY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	WHEEL RIM -12X25 41/921400	1	AVAILABLE TO ORDER	$2,025.09	Quantity
2	TYRE 15.5 X 25 12PLY 42/405700	1	AVAILABLE TO ORDER	$2,558.46	Quantity
3	TYRE VALVE 151/05201	1	AVAILABLE TO ORDER	$24.00	Quantity

Showing 1 to 3 of 3 parts
