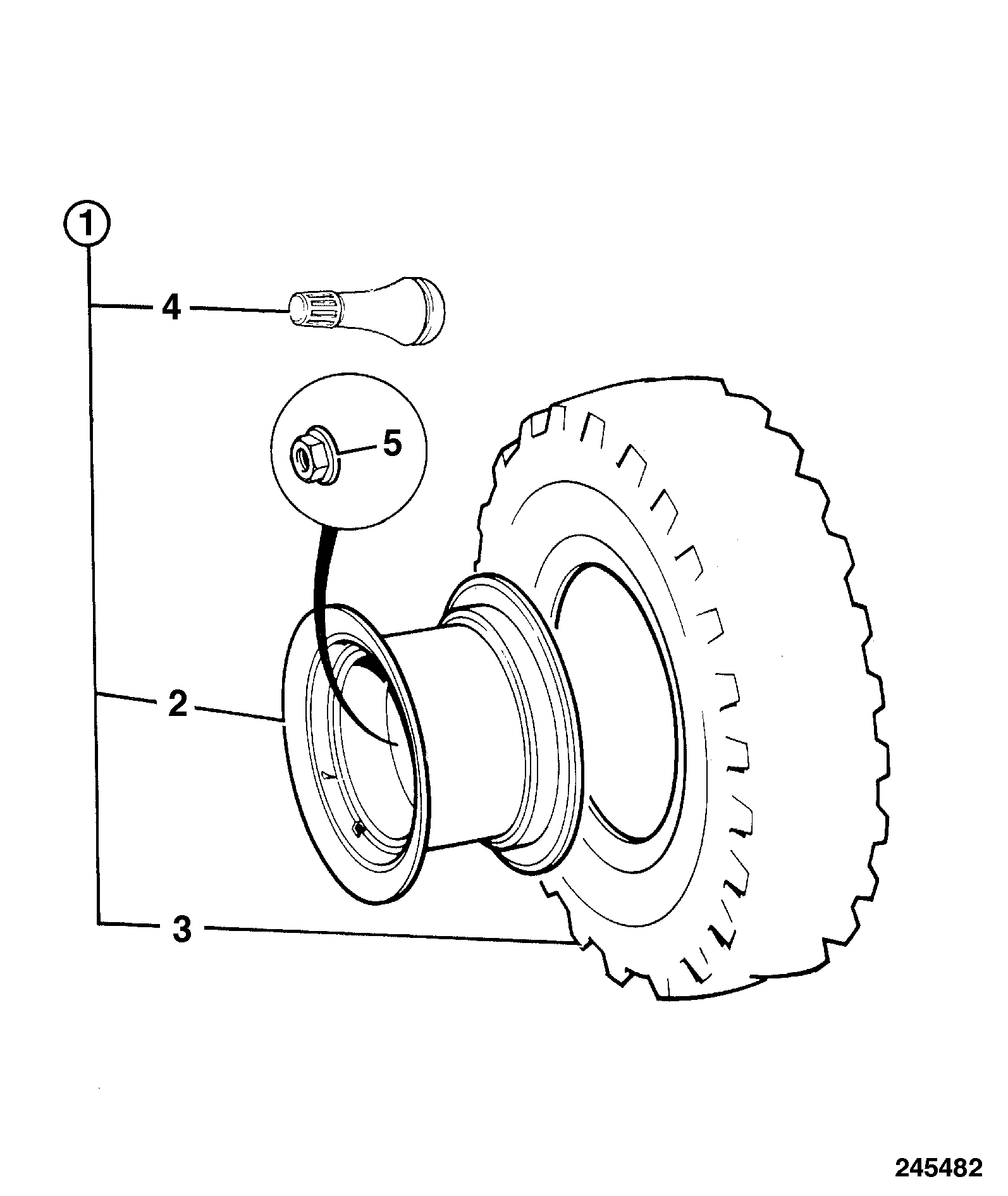

F300-1-1 WHEELS AND TYRES WHEELS AND TYRES UNASSEMBLED Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	W13 X 18 WHEEL RIM 41/940264	1	AVAILABLE TO ORDER	$478.98	Quantity
2	TYRE VALVE 151/05201	1	AVAILABLE TO ORDER	$24.00	Quantity
3	TRELLEBORG 400/70 R18 TH4 334/V4636	1	AVAILABLE TO ORDER	$1,842.74	Quantity

Showing 1 to 3 of 3 parts
