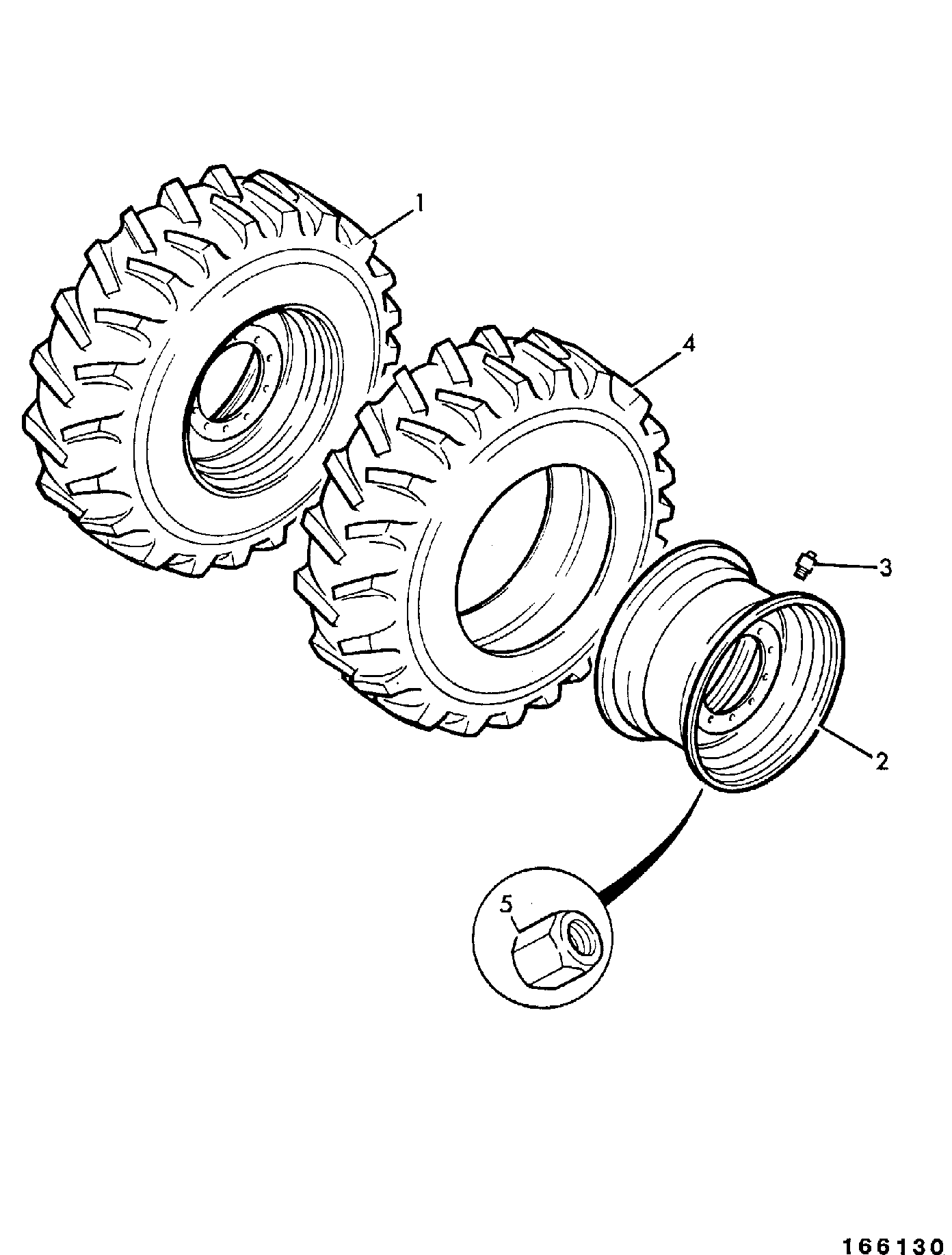

F3-7-1 WHEELS & TYRES 12 X 9 R24 Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	MICHELIN 12.0 R24 X-MINE 160/01075	1	AVAILABLE TO ORDER	$8,623.77	Quantity
1	GKN 24-8.5/1.7 (3PC) 26 O 41/924200 400/P4840	1	AVAILABLE TO ORDER	$2,697.35	Quantity
2	TYRE 12.00 R24 XMI 42/000053	1	AVAILABLE TO ORDER	$7,974.03	Quantity

Showing 1 to 3 of 3 parts

DIAG-F3-6-1-403021 F3-6-1 WHEELS & TYRES 500/70 R24
View Diagram
DIAG-F3-8-1-403021 F3-8-1 WHEELS & TYRES 12 X 9 R24 XSM D2+
View Diagram
DIAG-F3-5-1-403021 F3-5-1 WHEELS & TYRES MICHELIN,15.5 R25
View Diagram

Previous Assembly DIAG-F3-6-1-403021 F3-6-1 WHEELS & TYRES 500/70 R24 Next Assembly DIAG-F3-8-1-403021 F3-8-1 WHEELS & TYRES 12 X 9 R24 XSM D2+
