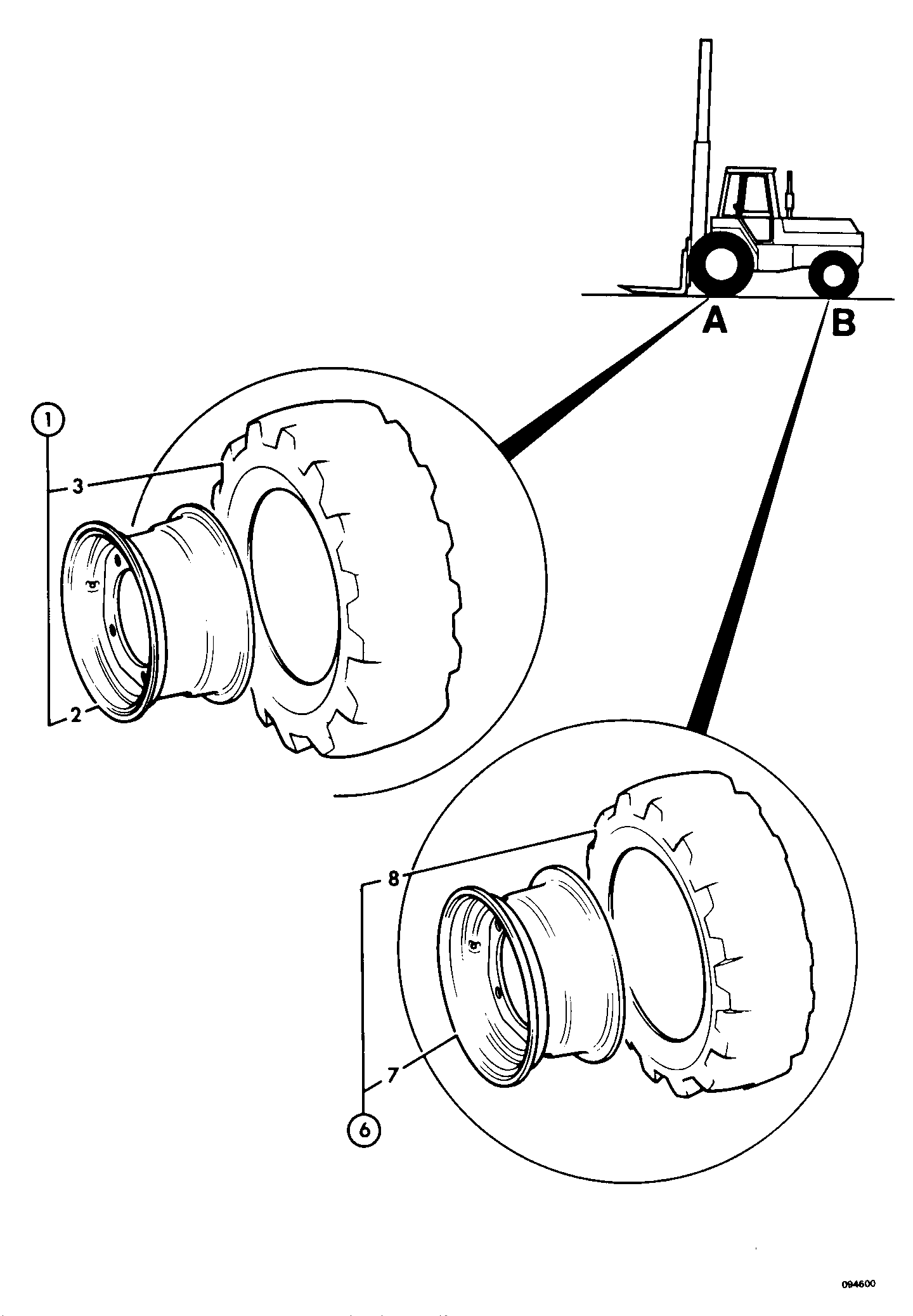

F3-4-1 WHEELS & TYRES 2WD Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	WHEEL RIM - 12 X 25DC 41/905700	1	AVAILABLE TO ORDER	$1,633.66	Quantity
3	TUBE -INNER 832/00035	1	AVAILABLE TO ORDER	$140.00	Quantity
4	WHEEL RIM 9x18 2wd 41/901800 41/914600	1	AVAILABLE TO ORDER	$388.80	Quantity
6	VALVE 150/44600	1	AVAILABLE TO ORDER	$72.01	Quantity

Showing 1 to 4 of 4 parts

DIAG-F3-4-1-399309 F3-4-1 WHEELS & TIRES 2WD
View Diagram
DIAG-F5-1-1-399309 F5-1-1 TRANSMISSION JCB SYNCRO SHUTTLE 2WD
View Diagram

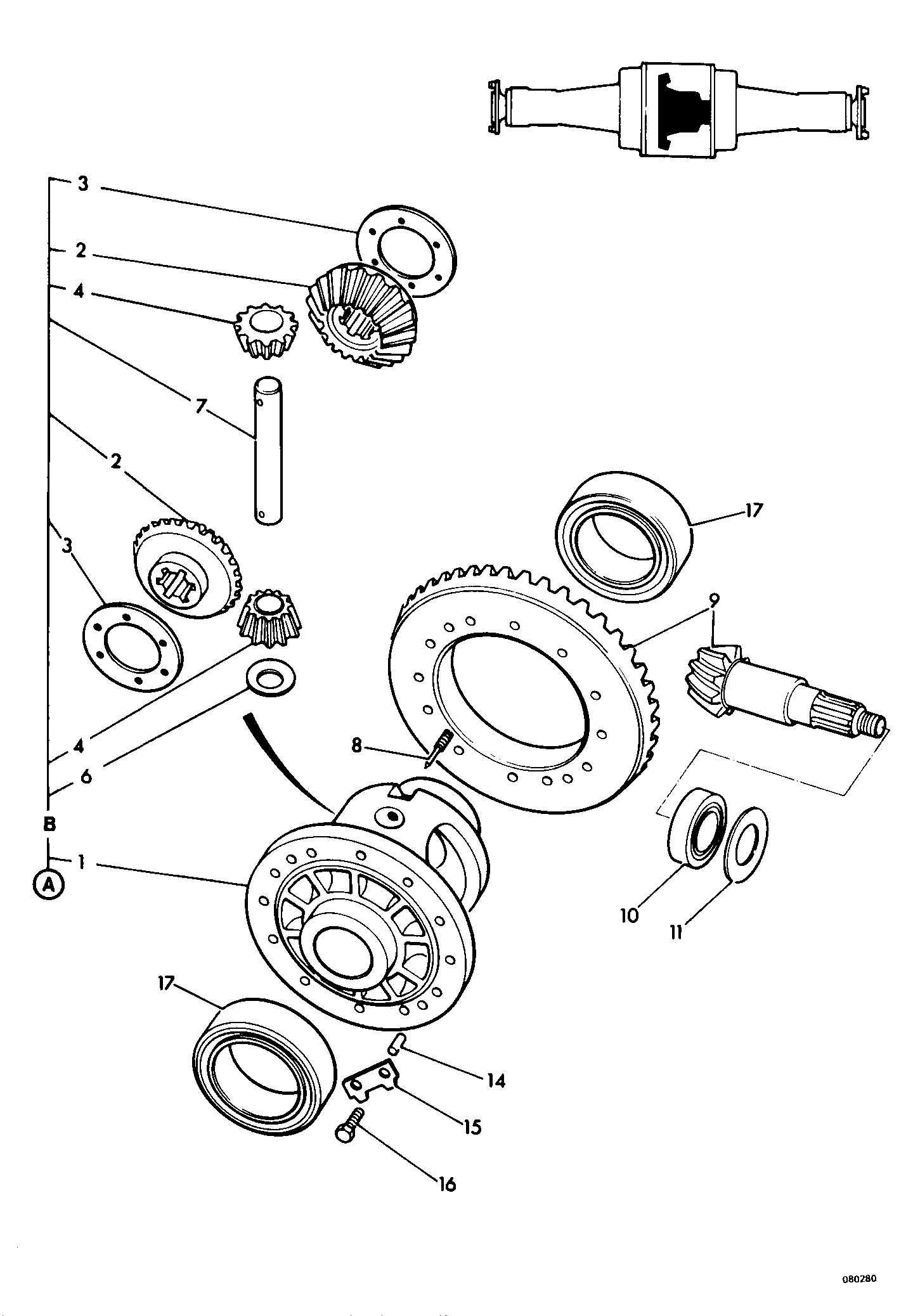

DIAG-F3-3-1-399309-12234293 F3-3-1 CROWN WHEEL & PINION
View Diagram

Previous Assembly DIAG-F3-4-1-399309 F3-4-1 WHEELS & TIRES 2WD Next Assembly DIAG-F5-1-1-399309 F5-1-1 TRANSMISSION JCB SYNCRO SHUTTLE 2WD
