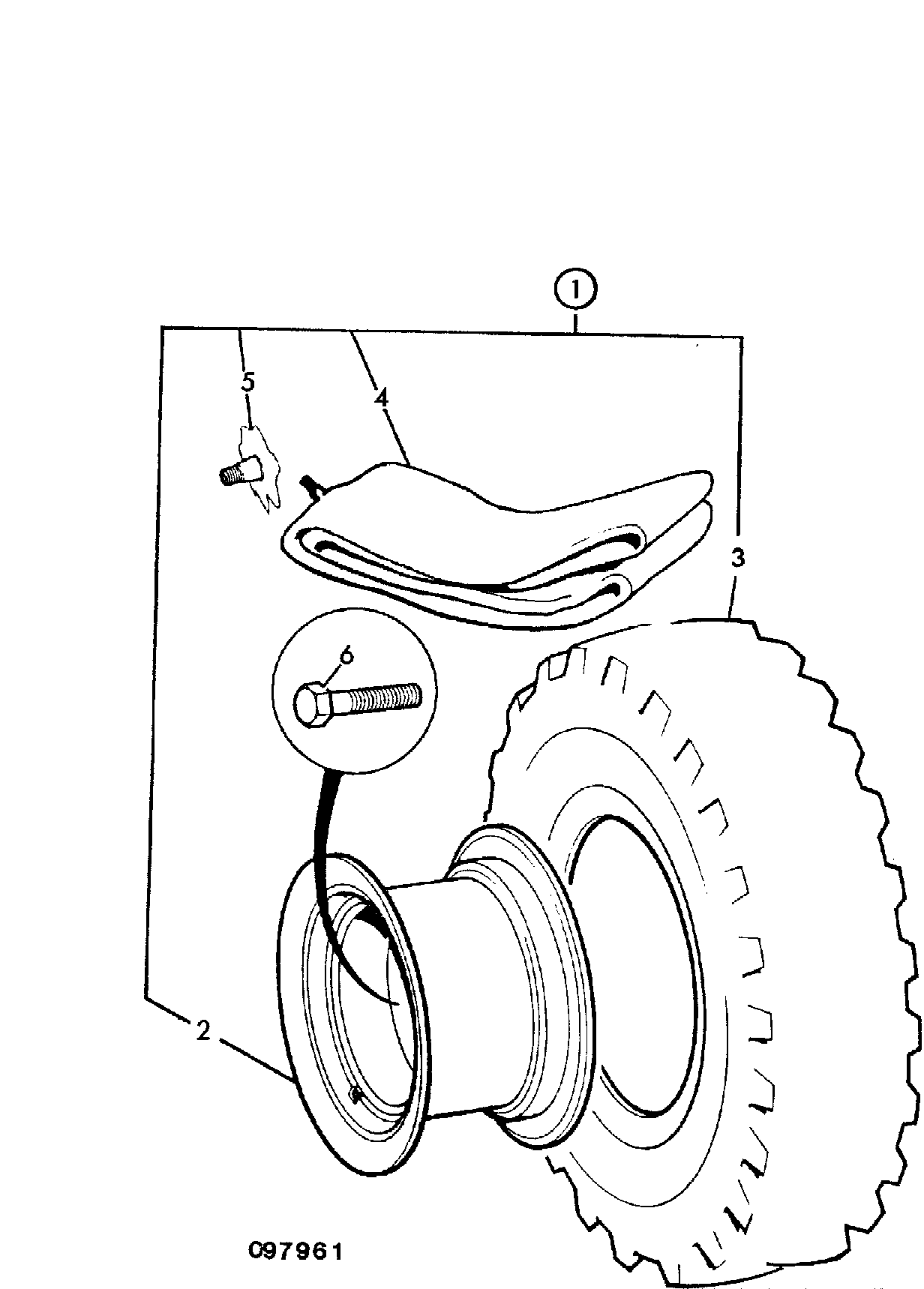

F3-3-5 WHEEL & TYRE ASSEMBLY FRONT, 2WD 10.5/80X18 Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	RIM 9X18 -40MM 2WD 41/914600 334/L1919	1	AVAILABLE TO ORDER	$635.67	Quantity
3	10.5/80X18 10 PLY 42/000003	1	AVAILABLE TO ORDER	$803.79	Quantity
4	TUBE 10.5x18 832/00023	1	AVAILABLE TO ORDER	$54.21	Quantity
6	WHEEL BOLT 826/00533	1	AVAILABLE TO ORDER	$42.13	Quantity

Showing 1 to 4 of 4 parts
